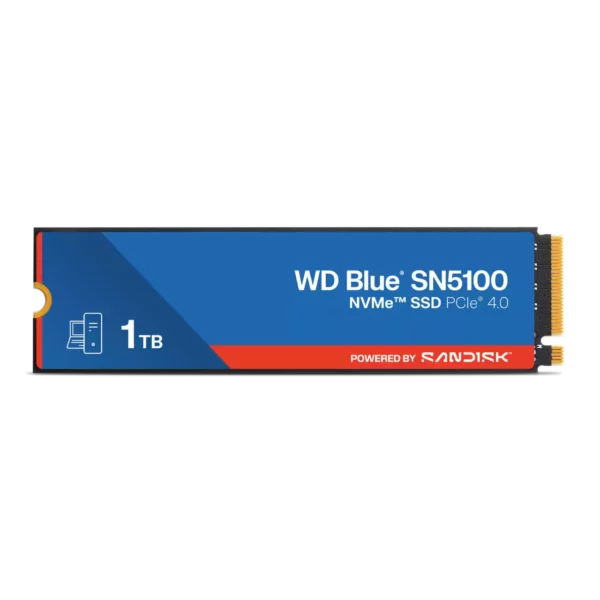

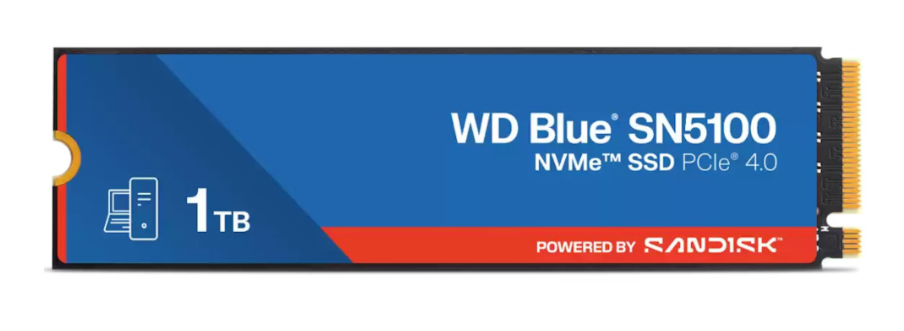

WD Blue SN5100 NVMe SSD – 1TB
Harness the power of AI with the WD Blue® SN5100 NVMe™ SSD
The WD Blue® SN5100 NVMe™ SSD with PCIe® Gen 4.0 delivers read speeds up to 7,100 MB/s, 30% faster than our prior generation.
Create and store more with capacities up to 4TB on M.2 2280 built with our next generation SANDISK 3D CBA NAND technology.
And with SANDISK nCache 4.0, you can copy large files or project folders faster than before.
Speed up your projects
Accelerate your AI-enabled workflow and loading assets quicker with PCIe® Gen 4.0 read speeds up to 7,100 MB/s, 30% faster than our prior generation.
SPECIFICATIONS
Security algorithms | TCG Pyrite |
SSD capacity | 1 TB |
SSD form factor | M.2 |
Interface | PCI Express 4.0 |
NVMe | Yes |
Memory type | QLC 3D NAND |
Component for | PC/Laptop |
Hardware encryption | Yes |
M.2 SSD size | 2280 (22 x 80 mm) |
Read speed | 7100 MB/s |
Write speed | 6700 MB/s |
Random read (4KB) | 1000000 IOPS |
Random write (4KB) | 1300000 IOPS |
PCI Express interface data lanes | x4 |
Mean time between failures (MTBF) | 1750000 h |
TBW rating | 600 |
Power | |
Average power consumption (read) | 3.9 W |
Average power consumption (write) | 3.9 W |
Power consumption (idle) | 0.004 W |
Weight & dimensions | |
Width | 22 mm |
Depth | 80 mm |
Height | 2.38 mm |
Weight | 5.7 g |
Packaging data | |
Package width | 101.6 mm |
Package depth | 21 mm |
Package height | 126 mm |
Package weight | 49 g |
Package type | Box |
Operational conditions | |
Operating temperature (T-T) | 0 – 85 °C |
Storage temperature (T-T) | -40 – 85 °C |
Operating vibration | 5 G |
Non-operating vibration | 4.9 G |
Operating shock | 1500 G |
Storage Capacity | 1TB |
---|---|
Storage Form Factor | M.2, NVMe |
Write Speed | Upto 6700MB/s |
Read Speed | 7100MB/s |
TBW | 600TB |
Warranty | 5 Years |
