Sapphire PURE AMD Radeon RX 9060 XT GPU 16GB - Green Apple Compunet

Sapphire PURE AMD Radeon RX 9060 XT GPU 16GB

Sale!

GPU: Boost Clock: Up to 3290 MHz
GPU: Game Clock: Up to 2700 MHz
Memory: 16GB/128 bit DDR6. 20 Gbps Effective
Stream Processors:2048
AMD RDNA™ 4 Architecture
Ray Accelerator: 32

Call for Price

Out of stock

SKU: 11350-02-20G

Categories:Graphics Card, Sapphire Graphic Card

Tags:16GB, SAPPHIRE, Pure, RX 9060 XT, 9060 XT

Brand: Sapphire

Guaranteed safe & secure checkout

Description

SPECIFICATIONS

Additional information

Q & A

Sapphire PURE AMD Radeon RX 9060 XT GPU 16GB

Free Flow

The Free Flow cooling design is tailored for axial fan systems, featuring an advanced heatsink fin module that optimizes airflow paths. By reducing turbulence and channeling air efficiently, it maximizes heat dissipation, ensuring consistent performance even under heavy thermal loads.

Frame Defense

The mechanical design of the graphics card features a robust, box-like frame that ensures exceptional build quality and durability.

This solid construction provides a protective enclosure for all internal components, reducing the risk of damage during handling or installation.

This rigid frame offers added stability and strength, making it highly resistant to accidental impacts or pressure, ensuring that the delicate components, such as the GPU, memory, and VRMs, remain secure.

With this design, users can confidently handle the card without worrying about compromising its integrity or performance.

Aero Curve Fan Blade

The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels.

This refined design ensures improved airflow, optimized static pressure, and enhanced cooling efficiency for demanding applications.

Honeywell PTM7950 TIM

The Honeywell PTM7950 Thermal Interface Material (TIM) offers a premium solution for high-performance electronics, particularly in the demanding field of graphics processing units (GPUs).

The PTM7950 delivers superior thermal conductivity, enhancing the reliability and longevity of graphics cards by its outstanding material characteristics.

Optimized Composite Heatpipe

The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.

Integrated Cooling Module

Integrated Cooling is an advanced thermal management solution engineered to provide efficient heat dissipation across all critical components of a graphics card.

This innovative design ensures direct contact with the GPU, memory modules, and VRMs, delivering uniform thermal regulation.

By addressing all major heat sources, the Integrated Cooling Module helps maintain stable operating temperatures, improving overall system performance and reliability.

Ideal for demanding workloads such as gaming, content creation, and overclocking, it ensures optimal thermal efficiency under sustained use.

High TG Copper PCB

The GPU is mounted on to the high-density 10 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

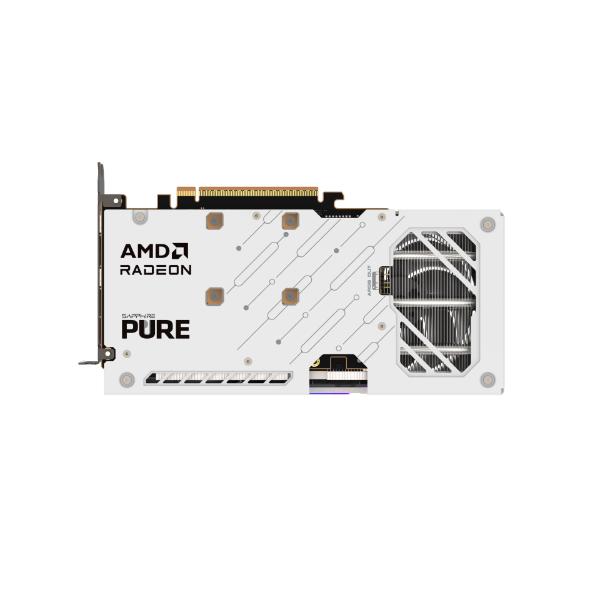

Tough Metal Backplate

The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.

Two-Ball Bearing

These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests.

The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.

ARGB LED SAPPHIRE Logo

The newly integrated ARGB LED SAPPHIRE Logo grants customization opportunities for a more personalized aesthetic for the build integration of the graphics card. Simply use the Glow! Feature in the SAPPHIRE TriXX Software to create the ultimate lighting solution.

External ARGB Control Sync

Enable the external synchronization of RGB LEDs between the graphics card and the motherboard using the 3-pin header in the tail.

Gamers can then choose if the graphics card performs the RGB LED effects independently or if the motherboard acquires control.

Fuse Protection

In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

Digital Power Design

SAPPHIRE PURE AMD Radeon™ RX 9000 Series are designed with digital power which provides accurate power control and excellent power efficiency

SPECIFICATIONS

GPU Specifications
Model	AMD Radeon™ RX 9060 XT
Architecture	AMD RDNA™ 4
Clock Speeds	Boost Clock: Up to 3290 MHz Game Clock: Up to 2700 MHz Boost Clock varies by thermal/application conditions Game Clock varies by title
Stream Processors	2048
Compute Units	32 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
Ray Accelerators	32
AI Accelerators	64
Memory	16GB GDDR6 (128-bit bus)
Memory Speed	20 Gbps Effective
Infinity Cache	32MB
Display Support	Max 3 Displays
Max Resolution	7680×4320 @ HDMI® 2.1 7680×4320 @ DisplayPort™ 2.1a
Interface	PCIe 5.0 x16
Outputs	2× HDMI® 2.1 \| 1× DisplayPort™ 2.1a
BIOS	UEFI
Target Resolution	1440P Gaming
Sapphire Features
• Honeywell PTM7950 TIM • Dual-X Cooling • AeroCurve Fan Blade • Two-Ball Bearing Fans • Metal Backplate • 9-Phase Power Design • Optimized Heatpipes • ARGB SAPPHIRE Logo • Glow! Lighting • MB RGB Sync • TriXX Software • Performance Quicksets
Included Accessories	3pin 5V ARGB Cable
AMD Technologies
• RDNA™ 4 Architecture • HYPR-RX with AFMF 2 • FSR 4 with AI Upscaling • Fluid Motion Frames 2 • Anti-Lag 2 Technology • AV1 Encode/Decode • DirectX® 12 Ultimate • Radiance Display Engine • FreeSync™ Premium • Adrenalin Edition™
Cooling System	Dual-X with Two-Ball Bearing Fans
Form Factor	2.3-slot ATX
Dimensions	240 × 124 × 46.1 mm (L×W×H)
TGP	170W
PSU Recommendation	Minimum 450W
Power Connectors	1× 8-pin
System Requirements
OS Support	Windows 10/11 64-bit \| Linux
System Memory	8GB minimum (16GB recommended)
Motherboard	PCIe x16 slot required

Weight	1 kg
Brand	Sapphire
color	White
GPU Chipset	AMD Radeon
GPU Memory Size	16GB
GPU Series	Radeon RX 9000
Memory Series	GDDR6
Warranty	3 Years
EAN Code	4895106296442
Max GPU Boost Clock	3290 MHz
Memory Bus	128 bit
Product Type	Gaming
