Noctua NH-U14S DX-3647 Premium Quality Quiet 140mm CPU Cooler Intel Xeon LGA3647
Sale!17%
- 6 heatpipes, 140mm size and premium grade 140mm fan for superb quiet cooling efficiency, ideal for near inaudible workstations in noise sensitive applications (audio/video production, engineering, etc.)
- Supports narrow and square type LGA3647 sockets for Intel Xeon Scalable (Platinum, Gold, Silver or Bronze, Skylake-SP/Purley) and Xeon-Phi platforms (Knight’s Landing, Knight’s Mill)
- Award-winning NF-A15 fan supports PWM for automatic speed control through the motherboard: silent at idle, full CFM performance when necessary
- Trusted Noctua quality backed up by 6-year manufacturer’s warranty
Original price was: ₹11,500.00.₹9,499.00Current price is: ₹9,499.00. (Inclusive of GST)
Shipping Policy
Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed. Shipping Partners : FedEx, Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Green Apple Compunet DOES NOT Have any Control over Operations of Shipping Partners. Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays. Loss or damage occured during shipping is Green Apple Compunet Responsibility. You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package. You must notify Green Apple Compunet of damaged or missing items from your order within 24-hours of receiving your package.
Get it by
Nov 01 Nov 05
Guaranteed safe & secure checkout
Description
SPECIFICATIONS
Additional information
Q & A

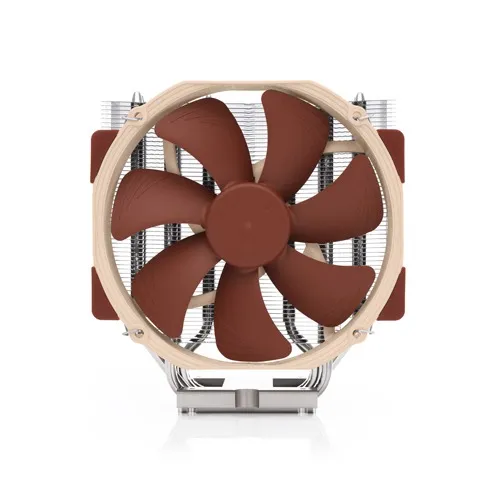

Noctua NH-U14S DX-3647 Premium Quality Quiet 140mm CPU Cooler Intel Xeon LGA3647
Feature
- 6 heat pipes, 140mm size and premium grade 140mm fan for superb quiet cooling efficiency, ideal for near inaudible workstations in noise sensitive applications (audio/video production, engineering, etc.)
- Supports narrow and square type LGA3647 sockets for Intel Xeon Scalable (Platinum, Gold, Silver or Bronze, Skylake-SP/Purley) and Xeon-Phi platforms (Knight’s Landing, Knight’s Mill)
- Award-winning NF-A15 fan supports PWM for automatic speed control through the motherboard: silent at idle, full CFM performance when necessary
- Pre-applied NT-H1 thermal compound and easy, straightforward installation thanks to SecuFirm2 mounting system and included processor clips
- Trusted Noctua quality backed up by 6-year manufacturer’s warranty
Noctua’s DX line CPU coolers have become a default choice in premium grade quiet cooling solutions for Intel Xeon processors. The NH-U14S DX-3647 features a larger, custom-designed contact surface and supports both square and narrow type LGA3647-0 platforms. Based on the proven, 140mm size NH-U14S heatsink and equipped with Noctua’s award-winning, PWM controlled NF-A15 140mm fan, it combines maximum performance and superb acoustics. Topped off with the professional SecuFirm2™ mounting system and pre-applied NT-H1 thermal compound, the NH-U14S DX-3647 forms a complete premium quality package for quietly cooling LGA3647 based Xeon workstations and servers.
DX series for Intel Xeon
First introduced in 2008, Noctua’s DX line CPU coolers have become a standard choice when it comes to quiet, premium grade air cooling solutions for Intel Xeon processors. Thanks to their superior acoustic efficiency, they are ideal for workstations and servers that run in noise sensitive environments (e.g. audio/video production, content creation, engineering, etc.)
Customised for LGA3647
The new DX-3647 line coolers are dedicated, customised solutions for Intel’s professional LGA3647 platform, which makes them an ideal fit for both Skylake-SP based Xeon Scalable CPUs (Platinum, Gold, Silver or Bronze, Purley series) and Xeon-Phi processors (code names Knight’s Landing or Knight’s Mill).
Enlarged contact surface
At 70x56mm, the heatsink’s copper contact surface is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of Intel’s LGA3647-based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins.
Supports square and narrow type LGA3647-0 sockets
The heatsink’s SecuFirm2™ mounting system includes two sets of brackets in order to support both square and narrow type LGA3647-0 sockets. Thanks to pre-installed mounting screws and the included processor clips (square type and narrow type without Omni-Path fabric connector, with fabric connector on request), the installation procedure is easy, quick and secure.
140mm size for maximum performance
With six heatpipes, a fin surface area of more than 6000cm² and the large, highly optimised NF-A15 140mm fan, the NH-U14S DX-3647 provides a superior level of quiet cooling efficiency. This makes it ideal for building cutting-edge, ultra high-performance Xeon-based workstations that run almost silent.
NF-A15 140mm premium fan
Complying with Noctua’s AAO standard and featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has quickly built up a reputation as one of the best 140mm heatsink fans on the market.
PWM support
The renowned NF-A15 140mm premium fan supplied with the NH-U14S DX-3647 supports PWM for convenient automatic speed control through the motherboard, which allows it to run near silent at lighter loads and speed up only when necessary.
Anti-vibration pads and fan-clips for second NF-A15 (optional)
For users who want to achieve even better performance by adding a second, optional NF-A15 fan to create a push/pull setup, the NH-U14S includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode.*
Pre-applied NT-H1 thermal compound
Noctua’s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance and outstanding long-term stability. Having the paste pre-applied to the heatsink base ensures optimal bond-line thickness and saves precious time in installation. Ideal for system integrators!
6-year manufacturer’s warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. True to this legacy, the NH-U14S DX-3647 heatsink is built to last, and like all Noctua fans, the supplied NF-A15 unit features an MTTF rating of more than 150,000 hours. The entire package comes with a full 6-year manufacturer’s warranty.
SPECIFICATIONS
| Cooler Specification | |
| Socket compatibility | Intel Xeon LGA3647 |
| Height (without fan) | 165 mm |
| Width (without fan) | 150 mm |
| Depth (without fan) | 52 mm |
| Weight (without fan) | 797 g |
| Height (with fan) | 165 mm |
| Width (with fan) | 150 mm |
| Depth (with fan) | 78 mm |
| Weight (with fan) | 957 g |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| Max. TDP | see TDP guide |
| Fan compatibility | 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25 |
| Scope of delivery | NF-A15 PWM premium fan |
| NT-H1 high-grade thermal compound (pre-applied) | |
| SecuFirm2™ mounting kit for LGA3647 | |
| Anti-vibration pads and fan-clips for second NF-A15 (optional) | |
| Noctua metal case-badge | |
| Warranty | 6 Years |
| FAN Specification | |
| Model | Noctua NF-A15 PWM |
| Bearing | SSO2 |
| Max. rotational speed ( /- 10%) | 1500 RPM |
| Min. rotational speed (PWM, /-20%) | 300 RPM |
| Max. airflow | 140,2 m³/h |
| Max. acoustical noise | 24,6 dB(A) |
| Input power | 1,56 W |
| Voltage range | 12 V |
| MTTF | > 150.000 h |
| Product Type | Normal |
|---|---|
| color | Brown |
| Brand | Noctua |
| Fan Size | 140mm |
| Fan Speed | 300 – 1500 RPM |
| Socket | LGA 3647 |
| Cooling Type | Air |
| Warranty | 6 Years |
| EAN Code | 9010018000139 |
