Noctua NH-D15 Chromax Black CPU Air Cooler

Sale!40%

Proven premium heatsink (more than 300 awards and recommendations from international hardware websites), now available in an all-black design that goes great with many colour schemes and RGB LEDs
Extra-wide 140mm dual-tower design with 6 heatpipes and dual fans provides maximum quiet cooling efficiency on a par with many all-in-one watercoolers, ideal for overclockers and silent-enthusiasts!
Dual-fan design with renowned, award-winning NF-A15 140mm fans with Low-Noise Adaptors and PWM for automatic speed control: Full cooling performance under load, whisper quiet at idle!
Includes high-end NT-H1 thermal paste and SecuFirm2 mounting system for easy installation on Intel LGA1700 (LGA17xx family) LGA1200, LGA115x, LGA2011, LGA2066 and AMD AM4 & AM5
Renowned Noctua quality backed up by 6-year manufacturer’s warranty, deluxe choice for Intel Core i9, i7, i5, i3 (e.g. 12900K, 12700K, 12600K) and AMD Ryzen (e.g. 5800X3D, 5700X, 5600, 5500)

(Inclusive of GST)

SKU: NH-D15 CH.BK

Categories:CPU Cooler, Noctua CPU Cooler

Tags:noctua, noctua air cooler, air cooler, noctua d15

Brand: Noctua

Guaranteed safe & secure checkout

Description

SPECIFICATIONS

Additional information

Q & A

Noctua NH-D15 Chromax Black CPU Air Cooler

Features

The NH-D15 chromax.black is an all-black version of Noctua’s award-winning flagship model NH-D15 premium-quality quiet CPU cooler. Thanks to the same proven dual-tower heatsink design and NF-A15 PWM fans, it stays true to the NH-D15’s successful formula of rivalling the performance of all-in-one water coolers while maintaining superb quietness of operation. At the same time, the chromax.black version with its black fans and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2™ multi-socket mounting system, Noctua’s enthusiast-grade NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-D15 chromax.black is a deluxe choice for both overclockers and silent enthusiasts who seek an elite-class heatsink that looks just as great as it cools.

Award-winning NH-D15 cooler

Tens of thousands of enthusiast users all over the world swear by the NH-D15’s quality and performance. Recommended by more than 200 international hardware websites and magazines, it is renowned for being one of the best high-end coolers on the market.

chromax. black design

The NH-D15 chromax .black is black from head to toe: Featuring a black coated heatsink, black fans with black anti-vibration-pads, black fan clips and black mounting parts, it’s right at home in all-black builds and easy to integrate with other color schemes.

Colour-customisable

Using the optional NA-HC3 and NA-HC4 heatsink covers as well as the NA-SAVP3 anti-vibration pads (available in black, blue, green, red, yellow, white), the NH-D15 chromax.black can be fully customised to fit popular build colour schemes such as black and red or black and white.

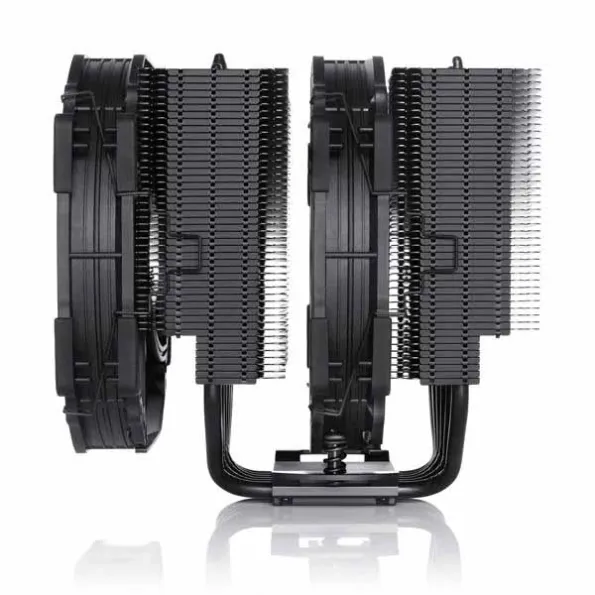

6 heatpipe dual tower design

As compared to conventional single tower heatinks, the NH-D15’s fine-tuned six heatpipe dual tower design provides more surface area, better heat-distribution and superior airflow efficiency in dual fan mode.

Widened fin stack and expanded heatpipe layout

Compared to the NH-D14, the NH-D15’s fin-stack has been widened from 140 to 150mm and its heatpipes are now spaced further apart, which allows for a more uniform heat distribution over a larger surface area and thus contributes to the NH-D15’s superior efficiency.

High RAM compatibility in single fan mode

Thanks to its recessed lower fins, the NH-D15 provides 66mm clearance for tall memory heatsinks in single fan mode, making it compatible with most high end RAM modules on the market. In dual fan mode, the NH-D15 should be used with standard height RAM (up to 32mm).* *In chassis with more than 165mm CPU cooler clearance, the front fan can be moved upwards to make room for memory modules taller than 32mm.

Dual NF-A15 140mm fans

The NH-D15 features two of Noctua’s premium class NF-A15 140mm fans. Complying with Noctua’s AAO standard and featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has quickly built up a reputation as one of the best 140mm fans on the market.

PWM support and Low-Noise Adaptors

The NF-A15 premium fans supplied with the NH-D15 support PWM for convenient automatic speed control through the motherboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptors for even quieter operation.

Excellent component cooling

Extending below the fin-stacks, the large NF-A15 fans not only contribute to the NH-D15’s superb CPU cooling capabilities but also provide massive airflow over surrounding motherboard components and heatsinks, thus ensuring excellent component cooling performance.

SecuFirm2™ multi-socket mounting system

Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and easy installation. Supporting Intel LGA1851, LGA1700 (since 2021), LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) and, as well as AMD AM4 and AM5 (since 2019), the SecuFirm2™ mounting included with the NH-D15 is straightforward to install, provides perfect contact pressure and will stand the test of time even under heavy use.

Offset mounting option for AMD AM5

The NH-D15 chromax.black includes Noctua’s offset mounting bars for AM5 that make it possible to install the cooler shifted towards the south side of the socket by 7mm, thereby achieving better contact quality right above the CCD(s). This improved contact exactly at the processor’s hotspot can significantly reduce CPU temperatures with typical improvements in the range of 1-3°C.

Compatibility with past and future sockets

Thanks to Noctua’s SecuFirm™ ecosystem, the NH-D15 can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets, which makes the NH-D15 a safe long-term investment.

NT-H1 thermal compound

Noctua’s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. Chosen again and again by over clockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds.

Soldered interface between heat pipes and fins

With many heatsinks, the fins are press-fitted to the heat pipes. Due to the different thermal expansion coefficients of copper and aluminum, this fit can loosen over years of thermal cycling, which may lead to reduced performance. By contrast, the NH-D15’s fins are soldered to the heat pipes in order to guarantee a superior thermal interface that doesn’t deteriorate even after many years of usage.

6-year manufacturer’s warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A15’s feature an MTTF rating of more than 150.000 hours and the entire NH-D15 package comes with a full 6-year manufacturer’s warranty.

SPECIFICATIONS

Cooler
Socket compatibility	AMD: AM5, AM4 Intel: LGA1700 (LGA17xx family), LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) and LGA20xx (LGA2066, LGA2011-0 and LGA2011-3 Square ILM)
Height (without fan)	160 mm
Width (without fan)	150 mm
Depth (without fan)	135 mm
Weight (without fan)	980 g
Height (with fan)	165 mm
Width (with fan)	150 mm
Depth (with fan)	161 mm
Weight (with fan)	1320 g
Material	Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR	183
Max. TDP	see NSPR
Fan compatibility	140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
Scope of delivery	Black NH-D15 heatsink 2x NF-A15 HS-PWM chromax.black premium fan 2x NA-RC7 Low-Noise Adaptor (L.N.A.) NA-YC1 4-pin PWM splitter cable NT-H1 high-grade thermal compound Black SecuFirm2™ mounting kit Noctua Metal Case-Badge
FAN Specification
Model	2x Noctua NF-A15 HS-PWM chromax.black
Bearing	SSO2
Max. rotational speed (+/- 10%)	1500 RPM
Max. rotational speed with L.N.A. (+/- 10%)	1200 RPM
Min. rotational speed @ 20% PWM (+/-20%)	300 RPM
Max. airflow	140,2 m³/h
Max. airflow with L.N.A.	115,5 m³/h
Max. acoustical noise	24,6 dB(A)
Max. acoustical noise with L.N.A.	19,2 dB(A)
Voltage range	12v
MTTF	> 150.000 h
Warranty	6 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Dimensions	14 × 15 × 17 cm
Brand	Noctua
Fan Size	140mm
Fan Speed	300 – 1500 RPM
Socket	AM2+, AM3, AM4, FM1, FM2, FM2+, Intel LGA2066, LGA 1151, LGA 1155, LGA 1156, LGA 1200
Cooling Type	Air
EAN Code	9010018000184
Warranty	6 Years
