MSI RTX 5060 Ventus 3X OC 8GB GDDR7 Graphics Card
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clocks:
Extreme Performance: 2617 MHz (MSI Center)
Boost: 2602 MHz - TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Solid Baseplate: A solid baseplate transfers heat from the GPU to all heat pipes for better cooling.
- Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

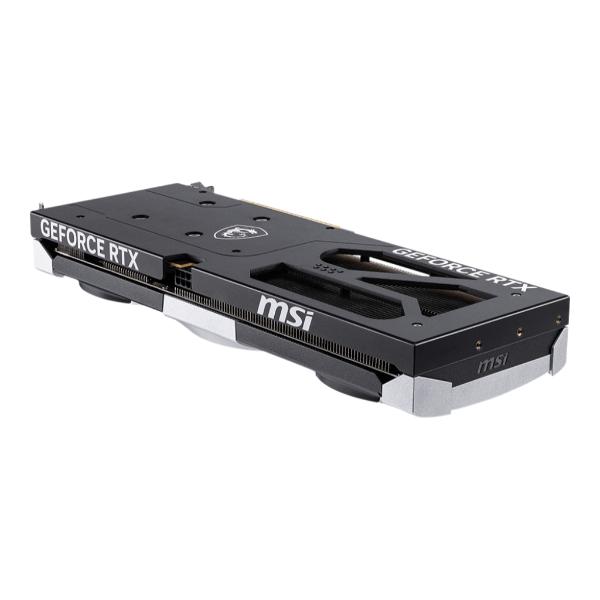

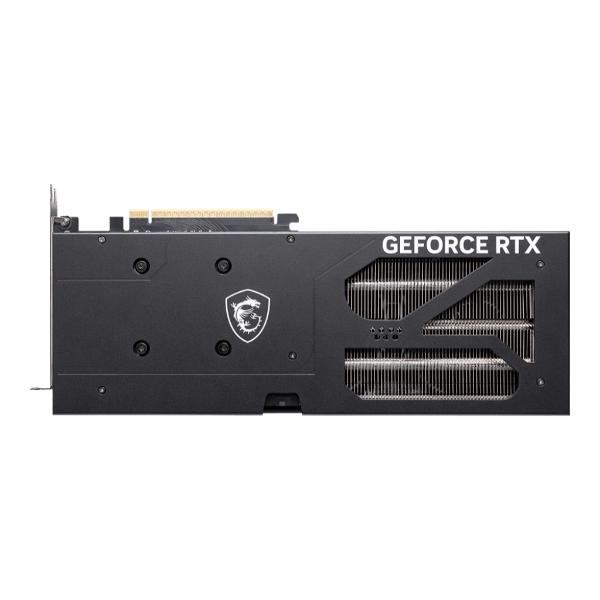

- Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

MSI RTX 5060 Ventus 3X OC 8GB GDDR7 Graphics Card
TAKE THE ESSENTIALS
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

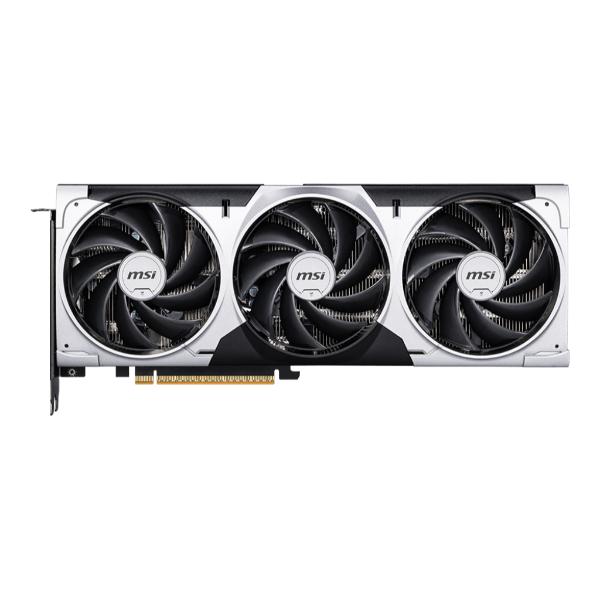

Triple-Fan Thermal Design
Three fans on a large heatsink deliver both superior and quieter cooling.
TORX FAN 5.0
HARDENING EVERY DETAIL
*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.
MSI CENTER
BRINGING IT ALL TOGETHER
MSI’s exclusive MSI Center software empowers you to maximize your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks. One of its standout features, AI Tuning, intelligently adjusts your system to meet AI-oriented requirements.
AFTERBURNER
PRECISION CONTROLS,
UNLIMITED POWER
MSI Afterburner is the world’s leading graphics card overclocking software, offering complete control and real-time system monitoring. It’s free and compatible with most graphics cards.
MSI APP PLAYER
SEAMLESS GAMING EXPERIENCE
Developed under an exclusive partnership with BlueStacks, the MSI APP Player provides a seamless gaming experience between mobile gaming and the PC.
SPECIFICATIONS
Graphics Card Specifications | |
---|---|
Marketing Name | GeForce RTX™ 5060 8G VENTUS 3X OC |
Model Name | G5060-8V3C |
Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 |
Interface | PCI Express® Gen 5 x16 (uses x8) |
Core Clocks | Extreme Performance: 2550 MHz (MSI Center) Boost: 2535 MHz |
CUDA® CORES | 3840 Units |
Memory Speed | 28 Gbps |
Memory | 8GB GDDR7 |
Memory Bus | 128-bit |

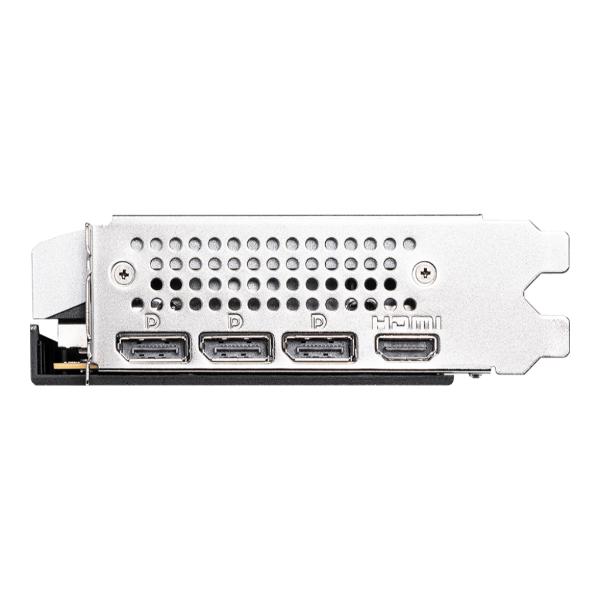

Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
HDCP Support | Y |
Power consumption | 145 W |
Power connectors | 8-pin x 1 |
Recommended PSU | 550 W |
Card Dimension (mm) | 304 x 121 x 44 mm |
Weight (Card / Package) | 860 g / 1229 g |
DirectX Version Support | 12 Ultimate |
OpenGL Version Support | 4.6 |
Maximum Displays | 4 |
G-SYNC® technology | Y |
Digital Maximum Resolution | 7680 x 4320 |
Weight | 1 kg |
---|---|
Brand | MSI |
Product Type | Gaming |
GPU Series | RTX 50 Series |
GPU Chipset | NVIDIA Geforce |
GPU Memory Size | 8GB |
Memory Series | GDDR7 |
color | Black |
Warranty | 3 Years |
