MSI Pro B760M-E DDR5 LGA 1700 mATX Motherboard Supports Intel 12th , 13th & 14th Gen Processors

Sale!46%
  • 12TH & 13TH GEN CORE – The PRO B760M-E is a compact Micro-ATX motherboard outfitted with the latest Intel B760 chipset (LGA 1700, 12th & 13th Gen Core); The VRM features MSI Core Boost technology for improved stability & performance
  • PASSIVE & AI COOLING – A chipset heatsink provides passive cooling; Frozr AI cooling automatically adjusts system fan settings based on CPU & GPU temperatures
  • DDR5 MEMORY, PCIe 4.0 x16 SLOT – 4 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 5600 MHz); The PCIe x16 slot supports PCIe 4.0 (64GB/s) graphics cards and includes Steel Armor
  • GEN4 M.2 CONNECTOR – Storage options include 1 x M.2 Gen4 x4 64Gbps slot for hyper-fast SSD access
  • WELL CONNECTED – Network hardware includes a 1Gbps LAN controller; Rear ports include USB 3.2 Gen 1 Type-A (5Gbps), HDMI 1.4 and VGA, and 7.1 HD Audio with Audio Boost
Original price was: ₹16,999.00.Current price is: ₹9,249.00. (Inclusive of GST)
Need Help? Contact Us
  Delivery & Return

Shipping Policy

Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed. Shipping Partners : FedEx, Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Green Apple Compunet DOES NOT Have any Control over Operations of Shipping Partners. Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays. Loss or damage occured during shipping is Green Apple Compunet Responsibility. You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package. You must notify Green Apple Compunet of damaged or missing items from your order within 24-hours of receiving your package.

  Get it by  Aug 06 Aug 10
SKU: B760M-E
Categories:,
Tags:, , , , , , ,
Brand: MSI
Guaranteed safe & secure checkout
Description
SPECIFICATIONS
Additional information
Q & A

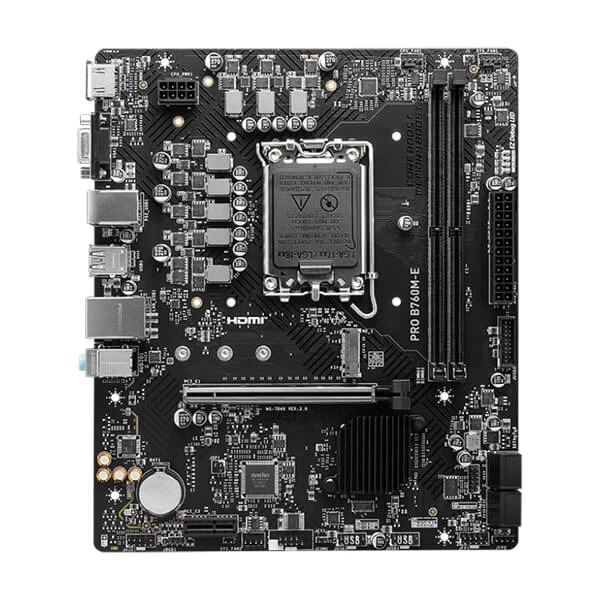

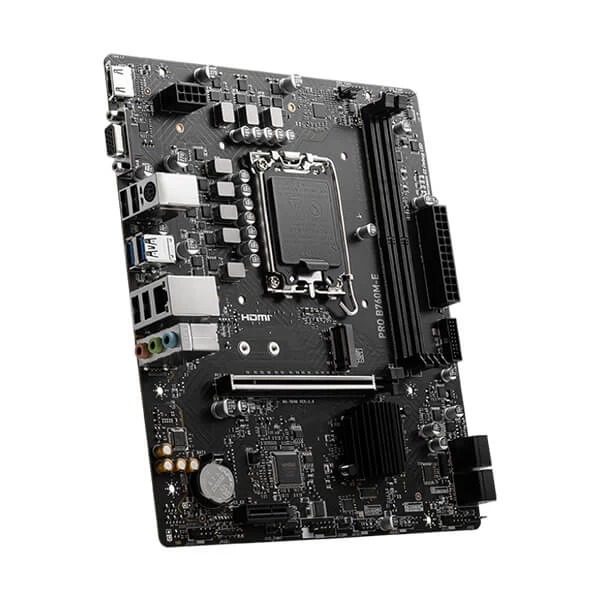

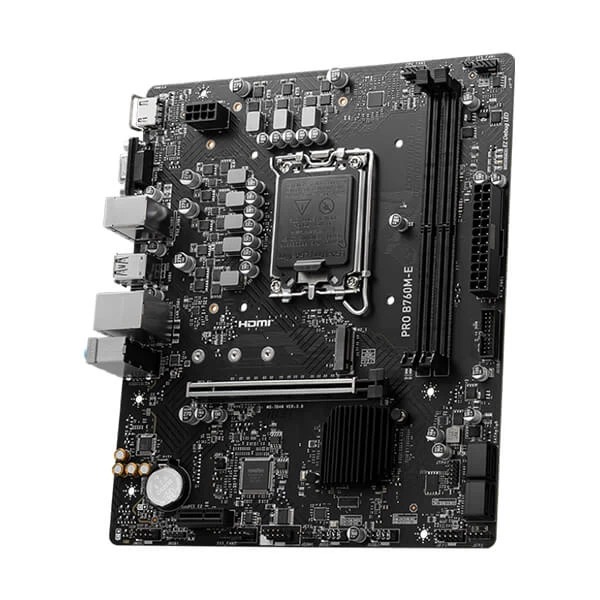

MSI Pro B760M-E DDR5 LGA 1700 mATX Motherboard Supports Intel 12th , 13th & 14th Gen Processors

PRO B760M-E

MSI Pro B760M-E DDR5 LGA 1700 mATX Motherboard Supports Intel 12th , 13th & 14th Gen Processors - Green Apple Compunet

MSI PRO B760M-E is designed for professional as well as multi-tasking purpose with DDR5 memory version. Users who care about productivity and efficiency can use this motherboard for future use. Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC).

Features:

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

SPECIFICATIONS

Model PRO B760M-E
Chipset INTEL B760
CPU SUPPORT Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Memory 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics 1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT
  • 1x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
  • 4x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
LAN Realtek® RTL8111H Gigabit LAN
Audio Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Internal I/O
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
LED FEATURE 4x EZ Debug LED

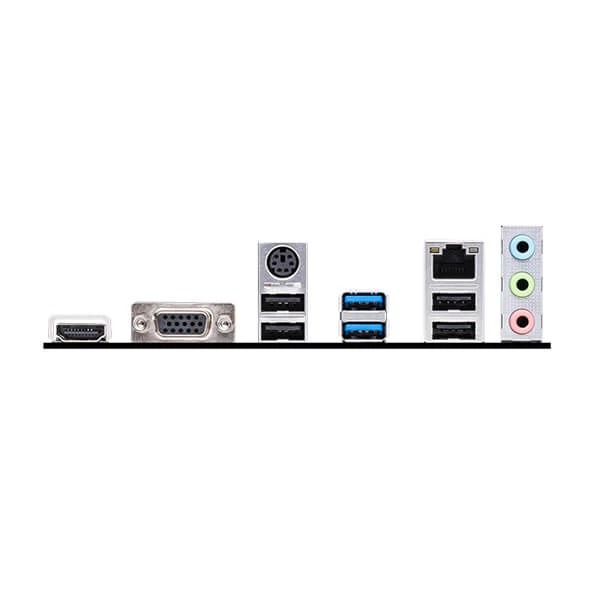

BACK PANEL PORTS
  • HDMI™
  • VGA
  • Keyboard / Mouse
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • LAN port
  • Audio Connectors
  • USB 2.0
  • USB 2.0
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension (W × L) mATX 200mmx236.16mm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
Weight 1 kg
Brand

MSI
Product Type

Normal
Motherboard Size

mATX
Socket

LGA 1700
Chipset

B760
RAM Type

DDR5
Platform

Intel
EAN Code

4711377026987
Warranty

3 Years
color

Black
