MSI PRO A620M-E AM5 AMD A620 SATA 6Gb/s DDR5 mATX Motherboard

Sale!58%

AMD A620
Supports AMD Ryzen™ 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest: DDR5 memory and MSI Memory Boost technology.
Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

(Inclusive of GST)

SKU: MSI-PRO-A620M-E

Categories:MSI Motherboard, Motherboard

Tags:A620M-E AM5, MSI Pro, MSI PRO A620M-E, MSI

Brand: MSI

Guaranteed safe & secure checkout

Description

SPECIFICATIONS

Additional information

Q & A

MSI PRO A620M-E AM5 AMD A620 SATA 6Gb/s DDR5 mATX Motherboard

Feature

MSI Motherboard

LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.

The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.

MSI　LATEST DDR5 MEMORY WITH SMT SLOT

MSI PRO A620M-E AMD A620
Supports AMD Ryzen™ 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest: DDR5 memory and MSI Memory Boost technology.
Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
EZ Debug LED: Easiest way to troubleshoot.
Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system: fan duty to a proper value.
Memory Boost: Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.
Core Boost: With premium layout and fully digital power design to support
more cores and provide better performance.

Chipset Heatsink

The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

CORE BOOST

Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED,HEAVY SOLDERED CONNECTIONS

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

LATEST DDR5 MEMORY WITH SMT SLOT

EASY OVERCLOCKING WITH EXPO PROFILE

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Easy to enable EXPO profile with auto power settings to get the best memory speed and stability.

MSI Center

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

SPECIFICATIONS

Chipset	AMD A620
CPU SUPPORT	Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5
Memory	2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Onboard Graphics	1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
EXPANSION SLOT	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage	1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN	Realtek® RTL8111H Gigabit LAN
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Internal I/O	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
LED FEATURE	4x EZ Debug LED

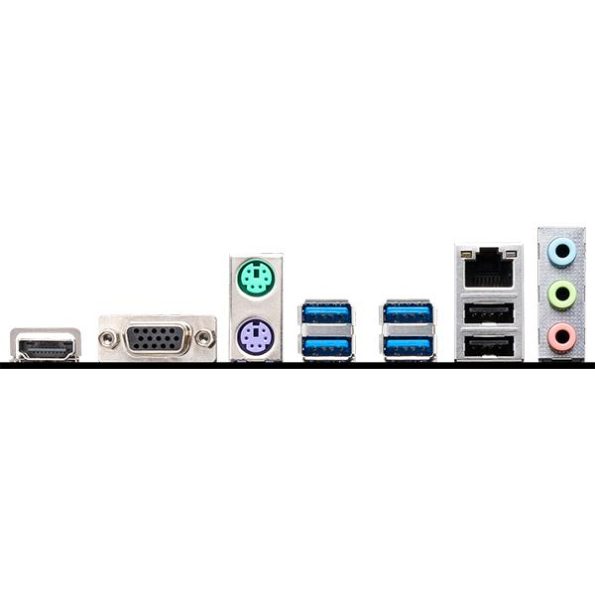

BACK PANEL PORTS	HDMI™ VGA Keyboard/Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio connectors USB 2.0
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension	mATX 211mmx243.84mm
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Weight	1 kg
Brand	MSI
Product Type	Normal
Motherboard Size	mATX
Socket	AM5
Chipset	A620
RAM Type	DDR5
Platform	AMD
EAN Code	4719072886615
Warranty	3 Years
color	Black
