INTEL CORE I3 10100 Processor
- Processor Type – Intel Core i3 10th Gen Processor
# Of CPU Cores – 4
# Of Threads – 8 - Base Clock – 3.6 GHz
- Turbo Speed – 4.30 GHz
- Max Memory Support – Upto 128GB
- Integrated Graphics – YES

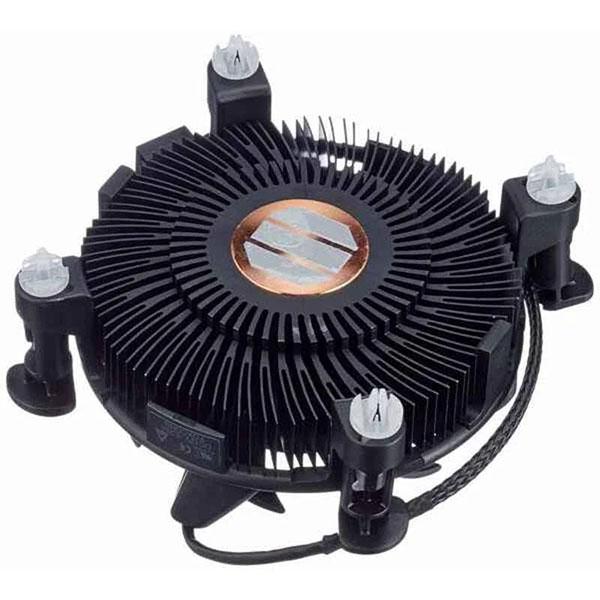

- Inbuilt Stock Cooler – aYES

INTEL CORE I3 10100 Processor
Feature
- INTEL CORE I3 10100 Processor (6M Cache, up to 4.30 GHz)Processor Graphics Intel UHD Graphics 630Graphics Graphics Video Max Memory64 GB4K Support, at 60Hz
- Introducing the 10th Gen INTEL CORE I3 10100 desktop processor, this processor is 14 nm processor which supports LGA 1200. The Processors features 4 Core which allow the processor to run multiple programs simultaneously without slowing down the system, while the 8 threads allow instructions to be handled by a single CPU core alomg with Hyper Threading Technology.
- INTEL CORE I3 10100 comes With 3.60GHz Base frequency, the Intel Turbo Boost 2.0 technology cranks maximum turbo frequency up to blazing 4.30 GHz. The processor is desirable for a gamer looking for a fantastic in-game experience and a creator that is ready to do more creating and sharing alike.
- All this paired with 6MB of Intel Smart Cache. It has a TDP rating of 65W with max memory size of 128GB dual-channel DDR4 support for up-to 2666Mhz with Intel top notch security features.
- This processor is designed for users who value fast responsiveness and comes with built-in Intel UHD Graphics 630 and 4K support at 60Hz, with the cutting-edge processor architecture.
Power At Your Hands
Experience amazing gameplay and creativity with Intel’s supported platform features. Get more from your PC build by untethering with Intel Wi-Fi 6 (Gig+), versatile connectivity with Thunderbolt 3 and accelerated responsiveness with Intel Optane memory.
Hyper Threading
The technology uses processor resources more efficiently, enabling multiple threads to run on each core. As a performance feature, it also increases processor throughput, improving overall performance on threaded software.
Identity Protection
The Robust, convenient and cost-effective way to deter identity theft. The protection is rooted in tamper-resistant hardware, meeting or exceeding the security of consumer-grade hardware tokens. To benefit from the technology, the user does not need to purchase new hardware or software.
UHD Graphics 630
INTEL CORE I3 10100 has The Intel UHD Graphics 630 (GT2) is an integrated graphics card in processors of the Coffee-Lake generation. The “GT2” version of the GPU offers 24 Execution Units (EUs) and the clocks depend on the CPU model and can be clocked higher than its previous gen.
Intel Turbo Boost
Intel Turbo Boost Technology dynamically increases the processor’s frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.
Intel OS Guard
Intel Device Protection Technology with OS Guard stop system hijackers from running any operation, any instruction when the system is in supervisor mode. Prvent any instruction, I/O operation initiated, area of memory being accessed with Intel OS Guard.
Intel Boot Guard
Intel Device Protection Technology with Boot Guard helps protect the system’s pre-OS environment from viruses and malicious software attacks. The feature prevents the computer from running firmware images not released by the system manufacturer.
SPECIFICATIONS
Memory Specifications | Max Memory Size (dependent on memory type) : 128 GB Memory Types : DDR4-2666 Max # of Memory Channels : 2 Max Memory Bandwidth : 41.6 GB/s ECC Memory Supported ‡ : No |
Processor Graphics | Processor Graphics ‡ : Intel® UHD Graphics 630 Graphics Base Frequency : 350 MHz Graphics Max Dynamic Frequency : 1.10 GHz Graphics Video Max Memory : 64 GB 4K Support : Yes, at 60Hz Max Resolution (HDMI 1.4)‡ : 4096×2160@30Hz Max Resolution (DP)‡ : 4096×2304@60Hz Max Resolution (eDP – Integrated Flat Panel)‡ : 4096×2304@60Hz DirectX* Support : 12 OpenGL* Support : 4.5 Intel® Quick Sync Video : Yes Intel® InTru™ 3D Technology : Yes Intel® Clear Video HD Technology : Yes Intel® Clear Video Technology : Yes # of Displays Supported ‡ : 3 Device ID : 0x9BC8 |
Expansion Options | Scalability : 1S Only PCI Express Revision : 3.0 PCI Express Configurations ‡ : Up to 1×16, 2×8, 1×8+2×4 Max # of PCI Express Lanes : 16 |
Advanced Technologies | Intel® Optane™ Memory Supported ‡ : Yes Intel® Thermal Velocity Boost : No Intel® Turbo Boost Max Technology 3.0 ‡ : No Intel® Turbo Boost Technology ‡ : 2.0 Intel vPro® Platform Eligibility ‡ : No Intel® Hyper-Threading Technology ‡ : Yes Intel® Virtualization Technology (VT-x) ‡ : Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ : Yes Intel® VT-x with Extended Page Tables (EPT) ‡ : Yes Intel® Transactional Synchronization Extensions : No Intel® 64 ‡ : Yes Instruction Set : 64-bit Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 Idle States : Yes Enhanced Intel SpeedStep® Technology : Yes Thermal Monitoring Technologies : Yes Intel® Identity Protection Technology ‡ : Yes Intel® Stable Image Platform Program (SIPP) : No |
Essentials | Product Collection : 10th Generation Intel® Core™ i3 Processors Code Name : Products formerly Comet Lake Vertical Segment : Desktop Processor Number : i3-10100 Status : Launched Launch Date : Q2’20 Lithography : 14 nm Use Conditions : PC/Client/Tablet |
Performance Specifications | # of Cores : 4 # of Threads : 8 Processor Base Frequency : 3.60 GHz Max Turbo Frequency : 4.30 GHz Cache : 6 MB Intel® Smart Cache Bus Speed : 8 GT/s Intel® Turbo Boost Technology 2.0 Frequency‡ : 4.30 GHz TDP : 65 W |
Supplemental Information | Embedded Options Available : No |
Package Specifications | Sockets Supported : FCLGA1200 Max CPU Configuration : 1 Thermal Solution Specification : PCG 2015C TJUNCTION : 100°C Package Size : 37.5mm x 37.5mm |
Security & Reliability | Intel® AES New Instructions : Yes Secure Key : Yes Intel® Software Guard Extensions (Intel® SGX) : Yes with Intel® ME Intel® OS Guard : Yes Intel® Trusted Execution Technology ‡ : No Execute Disable Bit ‡ : Yes Intel® Boot Guard : Yes |
Warranty | 3 Years |
Note* | Price, feature and specifications are subject to change without notice. |
Base Clock | 3.6 GHz |
---|---|
Brand | Intel |
Processor Max Boost Clock | 4.3 GHz |
Processor Series | core i3, Intel 10th Gen |
Socket | LGA 1200 |
TDP | 65W |
Total L3 Cache | 6MB |
CPU Threads | 8 |
CPU Cores | 4 |
Processor Model | Core i3-10100 |
Product Type | Normal |
CPU Cooler Included | Yes |
Integrated Graphics | Intel UHD Graphics 630 |
EAN Code | 0735858445825 |
