Gigabyte X870 Gaming WIFI6 Motherboard

Sale!39%
  • Processor Support: Compatible with AMD Ryzen 9000, 8000, and 7000 series processors (Socket AM5).
  • Memory: Supports DDR5 memory modules with speeds up to 8200 MT/s (OC), with a maximum capacity of 256 GB.
  • Thermal Design: Features VRM Thermal Armor and M.2 Thermal Guard for efficient cooling.
  • Storage: Includes 3 M.2 slots, with one PCIe 5.0 x4 slot for ultra-fast storage.
  • Networking: Equipped with 2.5GbE LAN and Wi-Fi 6 (802.11ax) for high-speed connectivity.
  • Connectivity: Offers dual USB4 Type-C ports, HDMI, and multiple USB 3.2 ports.
  • User-Friendly Features: EZ-Latch Plus for quick installation, multi-theme BIOS UI, and Q-Flash for easy updates.
  • Form Factor: ATX motherboard, suitable for gaming and high-performance tasks.
Original price was: ₹34,800.00.Current price is: ₹21,399.00. (Inclusive of GST)
Need Help? Contact Us
  Delivery & Return

Delivery & Return

We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.

Rules

All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

Interpretation and Definitions

All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

  Get it by  May 04 May 08
people have this in their carts right now. It's running out!
SKU: X870-GAMING-WIFI6
Categories:,
Tags:, ,
Brand: Gigabyte
Guaranteed safe & secure checkout
Description
SPECIFICATIONS
Additional information
Q & A

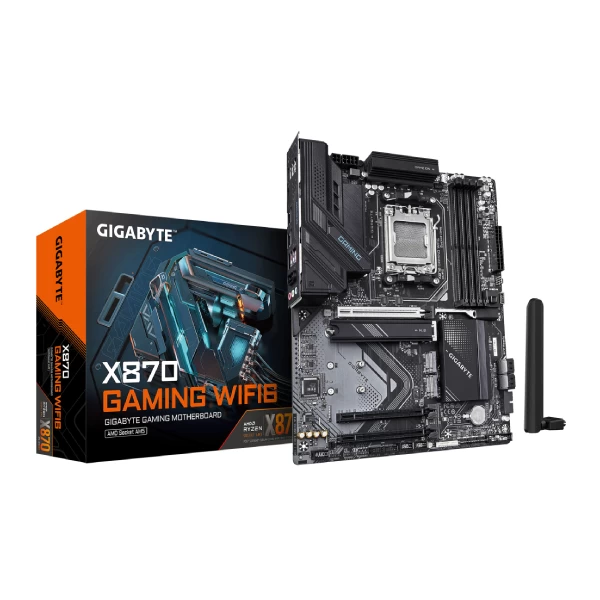

Gigabyte X870 Gaming WIFI6 Motherboard

Gigabyte X870 Gaming Wifi 6 is a powerful motherboard designed for gaming pc. It comes with an advanced full-metal thermal design and heatsink to keep your system cool and efficient while the Wifi 6 ensures faster and smooth wireless connectivity

Gigabyte X870 Gaming WIFI6 Motherboard - Green Apple CompunetGigabyte X870 Gaming WIFI6 Motherboard - Green Apple Compunet

Features:

  • AMD Socket AM5：Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital twin 8+2+2 phases VRM solution
  • Dual Channel DDR5：4*DIMMs with AMD EXPOâ„¢Memory Module Support
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click：M.2 heatsinks with screwless design
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
  • Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Fast Networking：2.5GbE LAN & Wi-Fi 6 802.11ax
  • Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI

SPECIFICATIONS

Model X870 GAMING WIFI6
CPU AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset AMD X870
Memory Support for DDR5 8200(OC)/8000(OC)/7800(OC)/7600(OC)/ /7200(OC)/7000(OC)/6800(OC)/ 6666(OC)/6600(OC)/6400(OC)/6200 (OC)/6000(OC)/5600(OC)/5200/4800/ 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPOâ„¢) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller: - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Realtek Wi-Fi 6 RTL8851BE (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 900/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs * The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector will become unavailable when an PCIe 4.0 x4 SSD is installed in the M2B_SB connector. 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzenâ„¢ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB CPU+ASMedia USB4 controller: - 2 x USB4 USB Type-C ports on the back panel CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 1 x USB 3.2 Gen 1 port on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 4 x system fan headers
  • 3 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 4 x SATA 6Gb/s connectors
  • 3 x M.2 Socket 3 connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
  • 1 x USB 3.2 Gen 1 header
  • 4 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

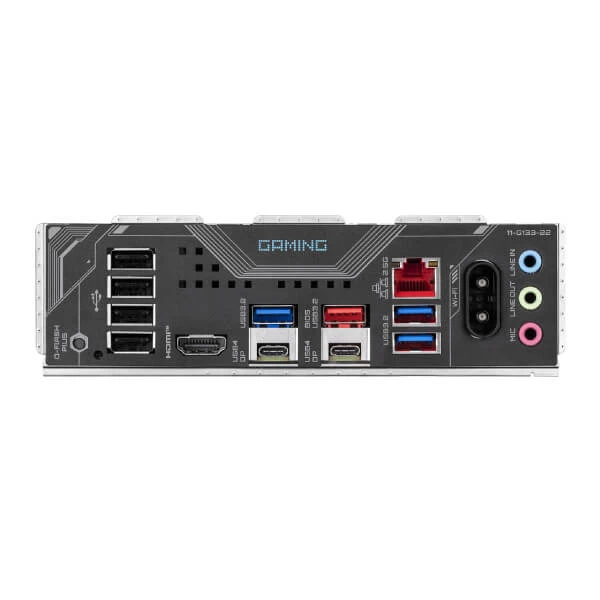

Back Panel Connectors
  • 1 x Q-Flash Plus button
  • 2 x SMA antenna connectors (2T2R)
  • 1 x HDMI port (Note)
  • 2 x USB4 USB Type-C ports (DisplayPort (Note))
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 3 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks

(Note) Actual support may vary by CPU.
I/O Controller iTE I/O Controller Chip
H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software
Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years
Note *** Images are for Representation purposes only *** Features, Price, Specifications are subject to change without notice.
Weight 1 kg
Brand

Gigabyte
Product Type

Gaming
Motherboard Size

mATX
Socket

AM5
Chipset

X870
RAM Type

DDR5
Platform

AMD
EAN Code

4719331865399
Warranty

3 Years
