Gigabyte H310M M.2 2.0 DDR4 Motherboard - Green Apple Compunet

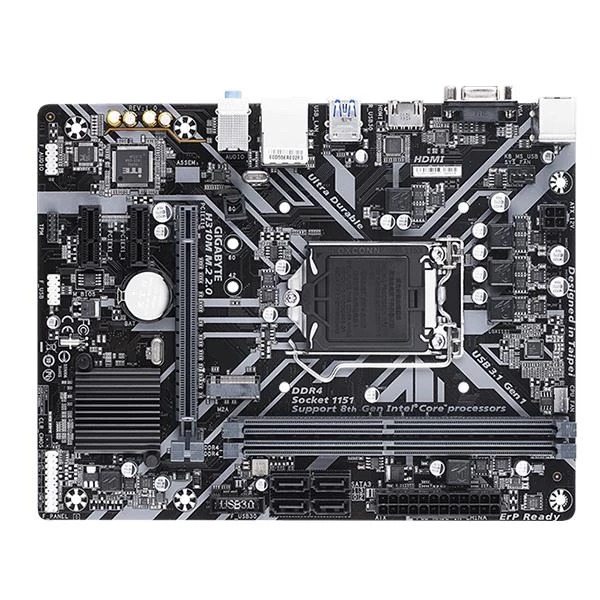

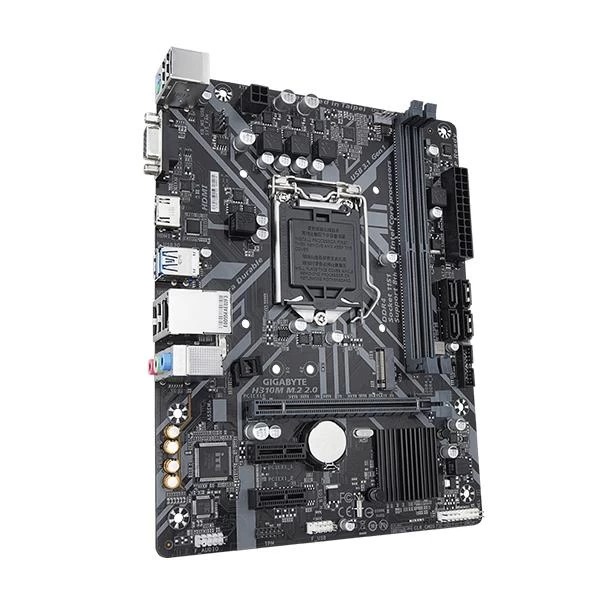

Gigabyte H310M M.2 2.0 DDR4 Motherboard

Sale!23%
  • Supports 9th and 8th Gen Intel® Coreâ„¢ Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • Ultra-Fast M.2 with PCIe Gen2 X2 & SATA interface
Original price was: ₹8,100.00.Current price is: ₹6,249.00. (Inclusive of GST)

Out of stock

Need Help? Contact Us
  Delivery & Return

Delivery & Return

We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.

Rules

All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

Interpretation and Definitions

All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

  Get it by  Jun 09 Jun 13
people have this in their carts right now. It's running out!
SKU: H310M-M.2-2-0
Categories:,
Tags:, , , , ,
Brand: Gigabyte
Guaranteed safe & secure checkout
Description
SPECIFICATIONS
Additional information
Reviews (0)
Q & A

GIGABYTE H310M M.2 2.0 Ultra Durable Motherboard with 8118 Gaming LAN, PCIe Gen2 x2 M.2, HDMI 1.4, D-Sub Ports for Multiple Display

Gigabyte H310M M.2 2.0 DDR4 Motherboard - Green Apple Compunet

Feature

Intel H310 Ultra Durable motherboard with GIGABYTE 8118 Gaming LAN, PCIe Gen2 x2 M.2, HDMI 1.4, D-Sub Ports for Multiple Display, Anti-Sulfur Resistor, Smart Fan 5, CEC 2019 ready

  • Supports 9th and 8th Gen Intel® Coreâ„¢ Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • Ultra-Fast M.2 with PCIe Gen2 X2 & SATA interface
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • HDMI 1.4, D-Sub Ports for Multiple Display
  • CEC 2019 Ready, Save Power With a Simple Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • All new GIGABYTEâ„¢ APP Center, simple and easy use
  • Anti-Sulfur Resistors Design

Exclusive Realtek 8118 Gaming LAN

High Speed Gigabit LAN with Automatic Bandwidth Allocation

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

Program On Top Gets Highest Priority

Gigabyte H310M M.2 2.0 DDR4 Motherboard - Green Apple Compunet

Real-Time Network Monitoring

Gigabyte H310M M.2 2.0 DDR4 Motherboard - Green Apple Compunet

NVMe PCIe Gen2 x2 2280 M.2 Connector

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

COOLING

Gigabyte H310M M.2 2.0 DDR4 Motherboard - Green Apple Compunet

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Gigabyte H310M M.2 2.0 DDR4 Motherboard - Green Apple Compunet
Gigabyte H310M M.2 2.0 DDR4 Motherboard - Green Apple CompunetTemperature Sensors
Gigabyte H310M M.2 2.0 DDR4 Motherboard - Green Apple CompunetFan Pin Headers
Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.

Temperature Sensors

Gigabyte H310M M.2 2.0 DDR4 Motherboard - Green Apple Compunet

Hybrid Fan Headers

Gigabyte H310M M.2 2.0 DDR4 Motherboard - Green Apple Compunet

â–  4 Temperature Sensors
â–  2 Fan Pin Headers
â–  All Fan Pin Headers Upgraded to Hybrid Fan Headers
â–  Interoperable Fans and Sensors
â–  Intuitive UI for Fan Control
Gigabyte H310M M.2 2.0 DDR4 Motherboard - Green Apple CompunetAchieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC.
All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

Gigabyte H310M M.2 2.0 DDR4 Motherboard - Green Apple Compunet

PERFORMANCE

Gigabyte H310M M.2 2.0 DDR4 Motherboard - Green Apple CompunetImmersive VR
Gaming Experience

> VR requires more performance than Full HD graphics for a steady 90FPS or greater.
> Only Gaming PCs can provide the best VR experience.

Recommended configuration for VR Gaming PC*
â–  Graphics Card: NVIDIA GTX 1060 / AMD RX 480 or greater, Compatible HDMI 1.4 video output.
â–  CPU: Intel i5 equivalent or greater
â–  Motherboard: GIGABYTE H370 / B360 / H310 series motherboards
â–  Memory: 8GB RAM or greater
â–  USB Ports: 3x USB 3.0 ports plus 1x USB 2.0 port or greater
â–  OS: Windows 10 64-bit or newer
*Please check VR vendor website for full system requirements.

To create a seamless VR experience GIGABYTE Motherboards offer the best features to make your virtual reality feel like your actual reality. With technologies such as NVMe support via M.2 or U.2 it’s obvious that GIGABYTE has the tools you need to start your journey in VR.

Any copyrighted images or trademarks displayed are the property of their respective owners and are shown for reference purposes only. Reference herein does not constitute or imply affiliation or endorsement of Gigabyte products by the respective trademark owners. VR Gaming photo for reference only.

AUDIO

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

ULTRA DURABLE

GIGABYTE Patented Double Locking Bracket

START SULFURIZATION PROTECTION

Gigabyte H310M M.2 2.0 DDR4 Motherboard - Green Apple CompunetSulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

The Industry’s Leading Surge Protection

GIGABYTE motherboards also feature special anti-surge IC that protect your motherboard, helping to ensure that your PC is equipped to deal with any potentially irregular electrical spikes.

Humidity Protection Glass Fabric PCB

There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.

High Temperature Protection Lower RDS(on) MOSFETs Design

GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.

GIGABYTE EXCELLENCE
CEC 2019 Ready

Gigabyte H310M M.2 2.0 DDR4 Motherboard - Green Apple Compunet

Save the power as easy as one click

CEC Requirement : PC power consumption must be under a certain level when it’s in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.Gigabyte H310M M.2 2.0 DDR4 Motherboard - Green Apple Compunet

GIGABYTE BIOS & Applications

Refreshed BIOS

GIGABYTE APP Center

3D OSD
Gigabyte H310M M.2 2.0 DDR4 Motherboard - Green Apple Compunet

Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

  1. Gigabyte H310M M.2 2.0 DDR4 Motherboard - Green Apple Compunet
  2. Gigabyte H310M M.2 2.0 DDR4 Motherboard - Green Apple Compunet

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today’s standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.

HDMI™ – The Next Generation Multimedia Interface

HDMIâ„¢ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMIâ„¢ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMIâ„¢ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

SPECIFICATIONS

CPU
  1. Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
  2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)
Chipset
Intel® H310 Express Chipset
Memory
  1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 2666/2400/2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor.

(Please refer "Memory Support List" for more information.)
Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1 GB
Audio
  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots

Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support)
  2. 4 x SATA 6Gb/s connectors
USB

Chipset:

  1. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 4 x SATA 6Gb/s connectors
  4. 1 x CPU fan header
  5. 1 x system fan header
  6. 1 x front panel header
  7. 1 x front panel audio header
  8. 1 x USB 3.1 Gen 1 header
  9. 1 x USB 2.0/1.1 header
  10. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  11. 1 x Clear CMOS jumper

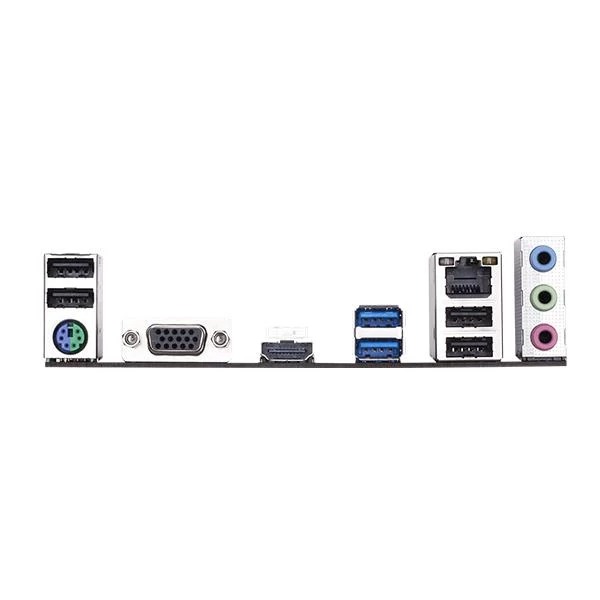

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x HDMI port
  4. 2 x USB 3.1 Gen 1 ports
  5. 4 x USB 2.0/1.1 ports
  6. 1 x RJ-45 port
  7. 3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard System Information Viewer USB Blocker
  2. Support for Q-Flash
  3. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Weight 1 kg
Brand

Gigabyte
Product Type

Normal
color

Black
Socket

LGA 1151
Memory Series

DDR4
Motherboard Size

mATX
Warranty

3 Years
Chipset

H310
Motherboard Series

Ultra Durable
Platform

Intel
RAM Type

DDR4
