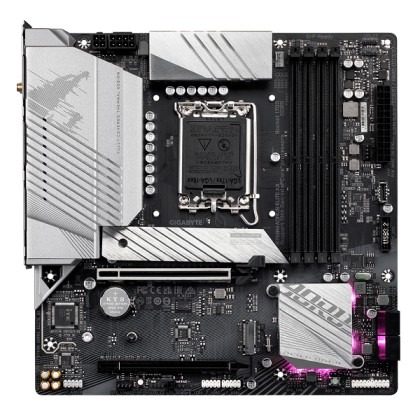

GIGABYTE B760M AORUS ELITE AX DDR5 INTEL 13TH AND 12TH GEN SUPPORT LGA 1700 M-ATX MOTHERBOARD

Feature

• Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
• Unparalleled Performance：Twin 12*+1+1 Phases Digital VRM Solution
• Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
• Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design
• Fast Networks： 2.5GbE LAN & Intel® Wi-Fi 6E 802.11ax
• Extended Connectivity：Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s, DP, HDMI
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

B760M AORUS ELITE AX DDR5 Twin Digital VRM Design

GIGABYTE B760M AORUS ELITE AX DDR5 INTEL 13TH AND 12TH GEN SUPPORT LGA 1700 M-ATX MOTHERBOARD To ensure maximum Turbo Boost and overclocking performance of Intel’s new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components.

2 x PCIe 4.0 Slots

Reinforced PCIe 4.0 x16/x4 with lower impedance.

2 x PCIe 4.0 x4 M.2 Connectors

M.2 PCIe 4.0 x4 slot with lower impedance.

B760M AORUS ELITE AX DDR5 Overclocking Up to 7600 and Beyond*

GIGABYTE B760M AORUS ELITE AX is offering a tested and proven platform that has memory overclocking capability up to 7600 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

B760M AORUS ELITE AX DDR5 Dual PCIe 4.0 x4 M.2

AORUS Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

GIGABYTE PerfDrive

PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.

2X Large Surface

GIGABYTE B760M AORUS ELITE AX has Increased surface area up to 2X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.

Real One-piece Build

TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors’ multi-piece design.

Multi-Cut Design

TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.

M.2 Thermal Guard

With durability in mind, GIGABYTE B760M AORUS ELITE AX provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Thermal Throttling As Temperature Rises

3% Cooler by implementing 2X copper PCB Design

By adopting 2X copper on PCB inner layer, it lowers the components’ temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively, due to it’s high thermal conductivity and lower impedance.

SMART FAN 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

B760M AORUS ELITE AX DDR5 Cooling Features

• High Current Support
  Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
• Precision Control
  Multiple temperature/fan speed control points for precise fan curve
• Dual Curve Mode
  Slope/Stair dual mode for different user scenario
• Fan Stop
  Fan can stop completely below users’ specified temperature point

802.11ax Wi-Fi 6E

The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Smart Antenna

• 2X signal strength compared to traditional antenna design.
• AROUS Antenna with smart antenna function for the best WIFI signal transmitting.

First adopter on 2.5GbE LAN onboard 2X Faster than ever

• Adoption of 2.5G LAN provide up to 2.5GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
• Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet

Connecting the Future – USB 3.2 Gen 2×2 Type-C®

Featuring the USB 3.2 Gen 2×2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.

Connecting the Future – Front USB3.2 Gen 2 Type-C®

GIGABYTE B760M AORUS ELITE AX MOTHERBOARD HAS USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.

B760M AORUS ELITE AX DDR5 High-End Audio Capacitors

GIGABYTE B760M AORUS ELITE AX motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

B760M AORUS ELITE AX DDR5 Audio Noise Guard

GIGABYTE B760M AORUS ELITE AX motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

B760M AORUS ELITE AX DDR5 RGB Fusion Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

Friendly User Interface

The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

My Favorites

Add constantly used items into the favorite menu for quick access.

Storage Information

Show all kinds of storage information including SATA, PCIE and M.2 interface.

Changelog

List all changes before saving and exiting bios. Quickly review overall settings modification.

B760M AORUS ELITE AX DDR5 Intuitive Load Line Curve

Clearly show each loadline calibration setting in an intuitive curve graph.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.

• Unified software platform for all Gigabyte supported products
• Intuitive user interface for an eased experience
• Modularized control components only for installed hardware
• Auto update function to keep system up to date and support future products

B760M AORUS ELITE AX DDR5 Multi-key

A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.

• RGB Switch
  Turn off all lighting effect on motherboard.
• Direct-To-BIOS
  Boot into BIOS menu directly without pressing any keyboard button.
• Safe Mode
  Boot into BIOS safe mode to change specific option without losing other BIOS settings.

EZ-Latch

With GIGABYTE EZ-Latch, you can DIY your PC in no time, quick and easy.

B760M AORUS ELITE AX DDR5 PCIe EZ-Latch

Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

B760M AORUS ELITE AX DDR5 Q-Flash Plus

Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
