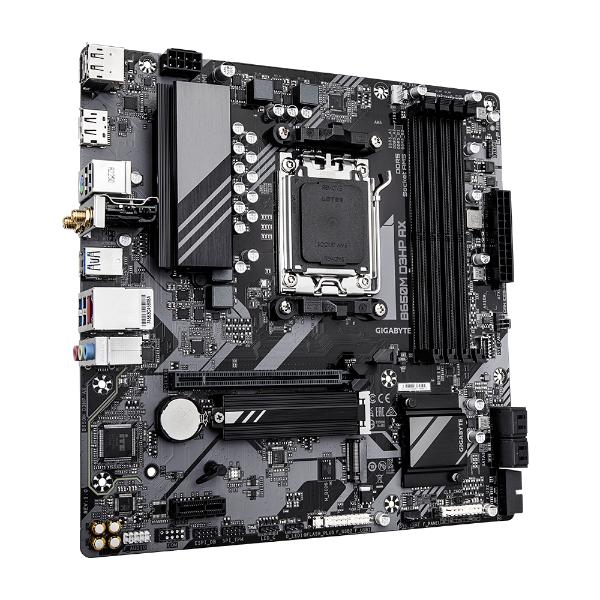

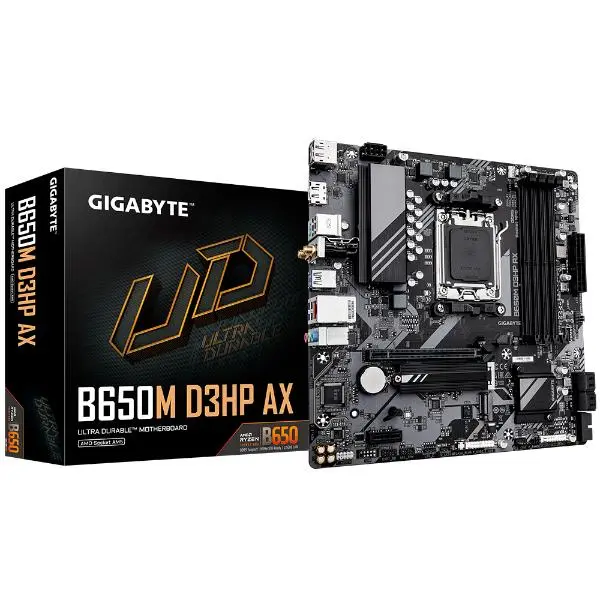

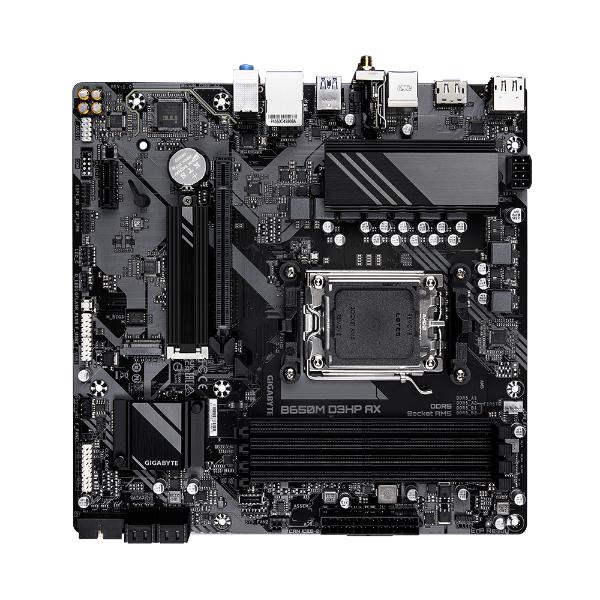

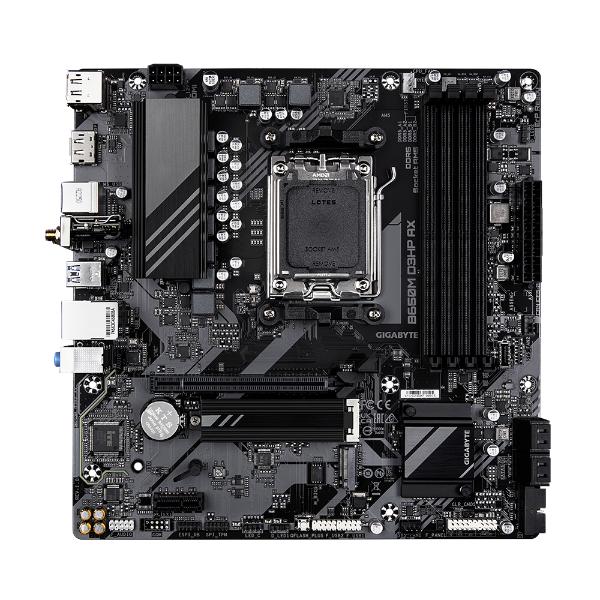

Gigabyte B650M D3HP AX mATX Motherboard

Gigabyte B650M D3HP AX mATX Motherboard

Sale!51%
Original price was: ₹24,500.00.Current price is: ₹11,900.00. (Inclusive of GST)

Out of stock

Need Help? Contact Us
  Delivery & Return

Delivery & Return

We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.

Rules

All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

Interpretation and Definitions

All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

  Get it by  Jun 08 Jun 12
people have this in their carts right now. It's running out!
SKU: B650M D3HP AX
Categories:,
Tags:, , , , , ,
Brand: Gigabyte
Guaranteed safe & secure checkout
Description
SPECIFICATIONS
Additional information
Q & A

Gigabyte B650M D3HP AX mATX Motherboard

B650M D3HP AX

  • AMD Socket AM5：Supports AMD Ryzenâ„¢ 7000 Series Processors
  • Unparalleled Performance：5+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5：4*SMD DIMMs with AMD EXPOâ„¢ & Intel® XMP Memory Module Support
  • SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
  • EZ-Latch：PCIe x16 Slot with Quick Release Design
  • Fast Networks：Wi-Fi 6E 802.11ax & 2.5GbE LAN
  • Extended Connectivity：2*DP, HDMI
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Durable Performance

GIGABYTE Ultra Durableâ„¢ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Digital VRM Design

Gigabyte B650M D3HP AX mATX Motherboard - Green Apple Compunet

5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs

GIGABYTE UD series motherboards use a 5+2+2 phases digital PWM + Low RDS(on) MOSFETs design to support AMD’s new generation CPUs by offering incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

EXPO & XMP Support

DDR5 EXPO & XMP Overclocking Up to 7600 and Beyond*

GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 7600 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.

EXPO & XMP Support

Unlock DDR5 Voltage

Secure Mode
MB provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC.

  • GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control
  • Transforms Native DDR5 memory module to Overclocked DDR5 memory
  • Increases DDR5 memory overclocking performance and capability
  • Supports all PMIC vendors for maximum compatibility
Programmable Mode
Gigabyte B650M D3HP AX mATX Motherboard - Green Apple Compunet
GIGABYTE’s exclusive design unlocks Native DDR5 PMIC secure mode into programmable mode and control Native DDR5 voltage with wide range.

EXPO & XMP Support

Gigabyte B650M D3HP AX mATX Motherboard - Green Apple Compunet

EXPO and XMP Dual Support

GIGABYTE AM5 MB supports both AMD EXPO™ and Intel® XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance.

DDR5 Auto Booster

Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click.

AMD EXPO™ and Intel® XMP 3.0 User Profile

– SPD Re-defined or retrieve from database
– Performance Simulation
– Save/Load Profile
– Overclocked Performance
– Profile Clearance

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

802.11ax Wi-Fi 6E

Gigabyte B650M D3HP AX mATX Motherboard - Green Apple Compunet

The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

2.5GbE LAN

Gigabyte B650M D3HP AX mATX Motherboard - Green Apple Compunet

Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

PCIe 4.0 Hardware Design

Gigabyte B650M D3HP AX mATX Motherboard - Green Apple Compunet

GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

Hi-Fi Audio

Gigabyte B650M D3HP AX mATX Motherboard - Green Apple Compunet

SPECIFICATIONS

Model: B650M D3HP AX
CPU: AMD Socket AM5, support for:
AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Chipset: AMD B650
Memory:
  • Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics: Integrated Graphics Processor with AMD Radeon Graphics support
- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.Support for up to triple-display at the same time
(Graphics specifications may vary depending on CPU support.)
Audio:
  • Realtek Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module:

Realtek Wi-Fi 6E RTL8852CE

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11ax 160MHz wireless

(Actual data rate may vary depending on environment and equipment.)
Expansion Slots:

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

  • AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
  • AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  • AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Interface:

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:

  • AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs

  • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB:

CPU:

  • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 port on the back panel
  • 1 x USB 2.0/1.1 port on the back panel

Chipset:

  • 2 x USB 3.2 Gen 1 ports on the back panel
  • 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 2 x system fan headers
  • 2 x addressable LED strip headers
  • 1 x RGB LED strip header
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C header, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  • 1 x Q-Flash Plus button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

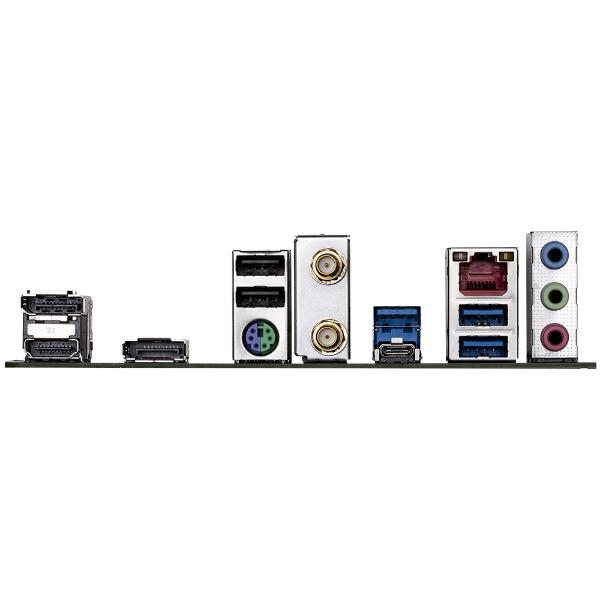

Back Panel Connectors:
  • 1 x PS/2 keyboard/mouse port
  • 1 x USB Type-C port, with USB 3.2 Gen 1 support
  • 3 x USB 3.2 Gen 1 ports
  • 2 x USB 2.0/1.1 ports
  • 1 x HDMI port
  • 2 x DisplayPorts
  • 1 x RJ-45 port
  • 3 x audio jacks
I/O Controller: iTE I/O Controller Chip
H/W Monitoring:
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan fail warning
  • Fan speed control
BIOS:
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Bundled Software: Norton Internet Security (OEM version)
LAN bandwidth management software
Operating System: Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty: 3 Years
Note Features, price, specifications are subject to change without notice. Images are for representation purposes only
Weight 1 kg
Brand

Gigabyte
Chipset

B650
color

Black
Memory Series

DDR5
Motherboard Series

Ultra Durable
Motherboard Size

mATX
Platform

AMD
Product Type

Gaming
RAM Type

DDR5
Socket

AM5
Warranty

3 Years
