Gigabyte B650M Aorus Elite AX (Wi-Fi) Motherboard

Gigabyte B650M Aorus Elite AX (Wi-Fi) Motherboard

Sale!47%
  • AMD Socket AM5：Supports AMD Ryzenâ„¢ 7000 Series Processors
  • Unparalleled Performance：Twin 12*+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5：4*DIMMs with AMD EXPOâ„¢ & Intel® XMP Memory Module Support
  • Superfast Storage：1* PCIe 5.0 x4 and 1* PCIe 4.0 x4 M.2 Connector
  • Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
  • EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity：HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Original price was: ₹36,000.00.Current price is: ₹18,990.00. (Inclusive of GST)

Out of stock

Need Help? Contact Us
  Delivery & Return

Delivery & Return

We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.

Rules

All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

Interpretation and Definitions

All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

  Get it by  Jun 09 Jun 13
people have this in their carts right now. It's running out!
SKU: B650M-AORUS-ELITE-AX
Categories:,
Tags:, , , , , , , , ,
Brand: Gigabyte
Guaranteed safe & secure checkout
Description
specifications
Additional information
Q & A

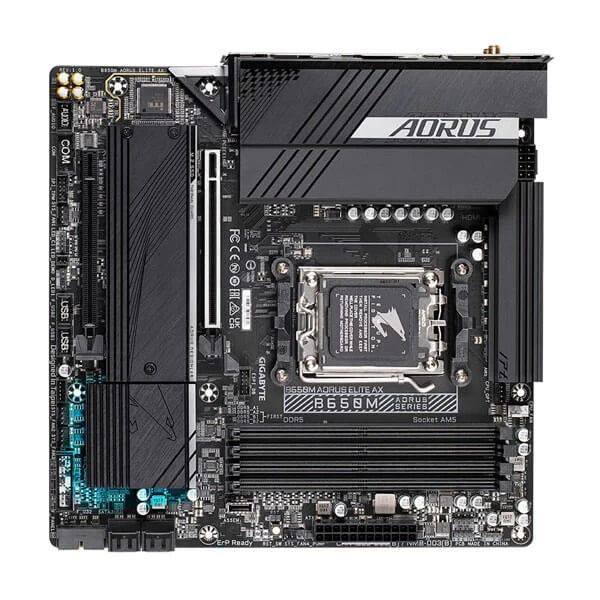

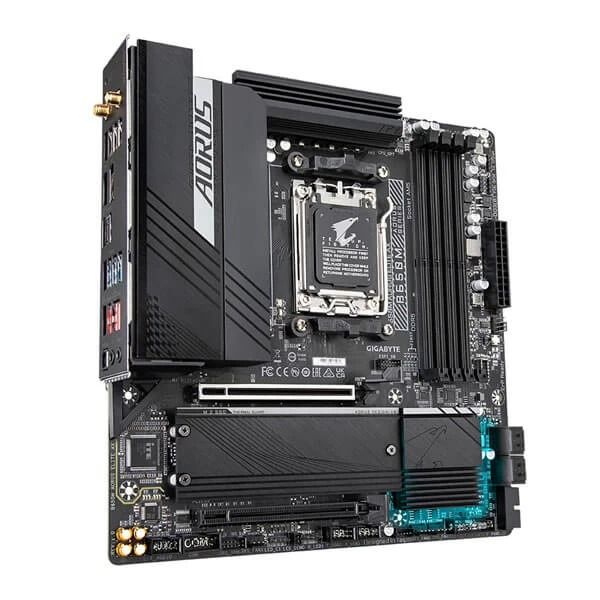

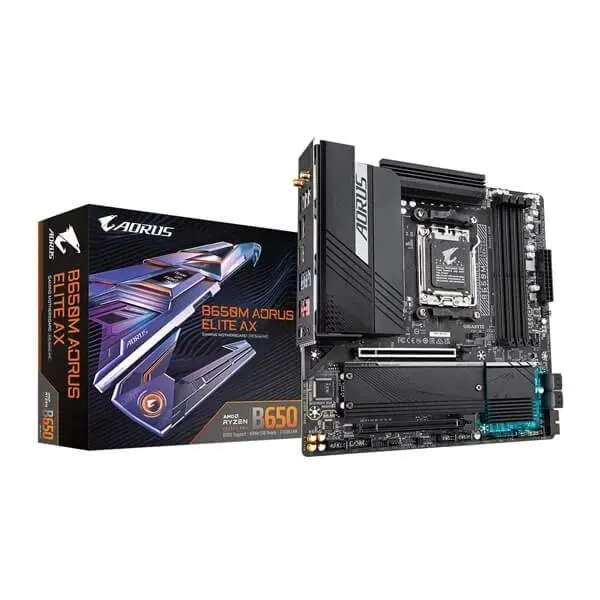

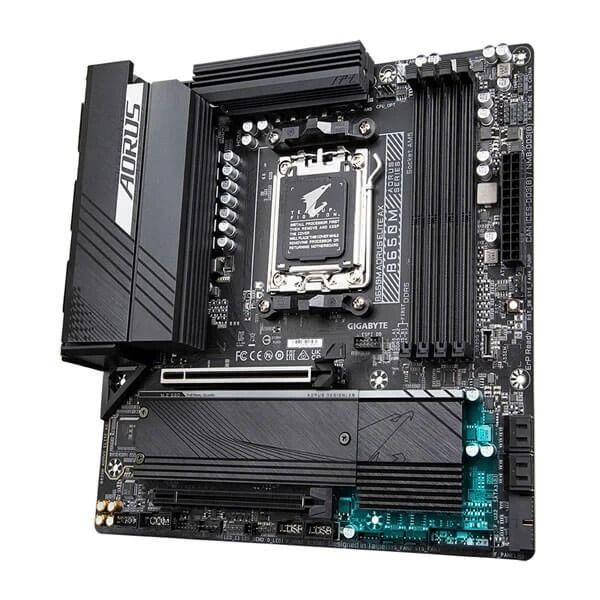

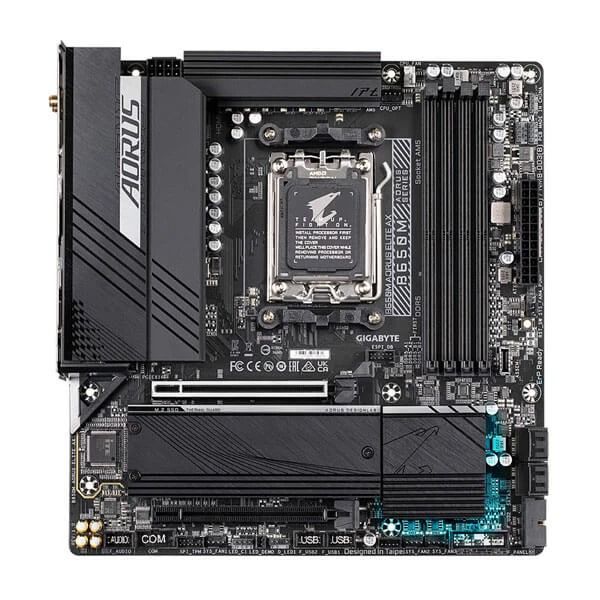

Gigabyte B650M Aorus Elite AX (Wi-Fi) Motherboard

GIGABYTE B650M AORUS Elite AX (AM5/ LGA 1718/ AMD B650/ Micro-ATX/ 3-Year Warranty/ DDR5/ 2* M.2/ PCIe 5.0/ USB 3.2 Gen2X2 Type-C/Intel 2.5GbE LAN/Q-Flash Plus/EZ-Latch/Gaming Motherboard)

Feature

AORUS B650 Gaming Motherboards

  • AMD Socket AM5：Supports AMD Ryzenâ„¢ 7000 Series Processors
  • Unparalleled Performance Twin 12+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5：4DIMMs with AMD EXPOâ„¢ & Intel® XMP Memory Module Support
  • Superfast Storage：1 PCIe 5.0 x4 and 1 PCIe 4.0 x4 M.2 Connector
  • Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
  • EZ-Latch PCIe x16 Slot & M.2 Connectors with Quick Release & Screw-less Design
  • Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS Without Installing the CPU, Memory and Graphics Card
  • 6+6 phases parallel power design
Unparalleled Performance with AORUS B650 Motherboards

UNPARALLELED PERFORMANCE

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. Gigabyte B650M Aorus Elite AX Motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
Outstanding Thermal Design

OUTSTANDING THERMAL DESIGN

Gigabyte B650M Aorus Elite AX Motherboards’ unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
Connectivity

CONNECTIVITY

Gigabyte B650M Aorus Elite AX Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
Personalization

PERSONALIZATION

Gigabyte B650M Aorus Elite AX Motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

specifications

CPU AMD Socket AM5, support for: AMD Ryzenâ„¢ 7000 Series Processors
Chipset AMD B650
Memory
  • Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPOâ„¢) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics

Integrated Graphics Processor:

  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

Support for DisplayPort 1.4 version and HDR.

  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports.
Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Ou
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module

AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.2
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion Slots

CPU:

  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 4 x SATA 6Gb/s connectors
USB

CPU:

  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

CPU + USB 2.0 Hub:

  • 4 x USB 2.0/1.1 ports on the back panel

Chipset:

  • 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
  • 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 3.2 Gen 1 Hub:

  • 4 x USB 3.2 Gen 1 ports on the back pane
Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper

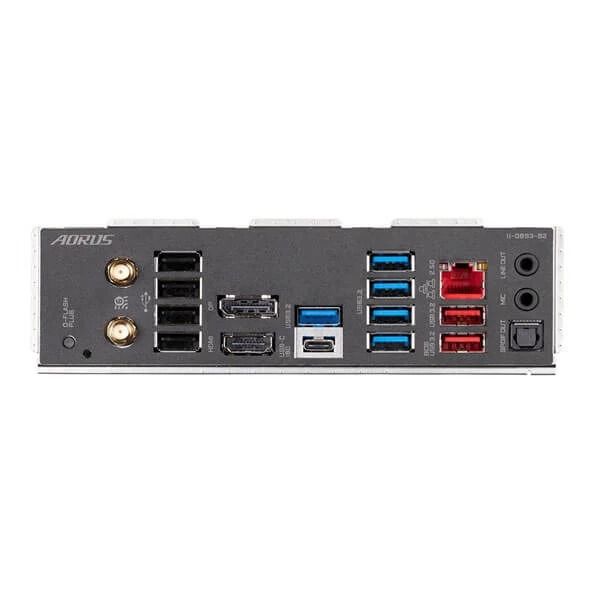

Back Panel Connectors I/O Controller1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for GIGABYTE Control Center (GCC)
  • Support for Q-Flash
  • Support for Q-Flash Plus
Bundled Software
  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software
Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
Weight 1 kg
Brand

Gigabyte
Chipset

B650
color

Black
Memory Series

DDR5
Motherboard Series

Ultra Durable
Motherboard Size

mATX
Platform

AMD
Product Type

Gaming
RAM Type

DDR5
Socket

AM5
Warranty

3 Years
