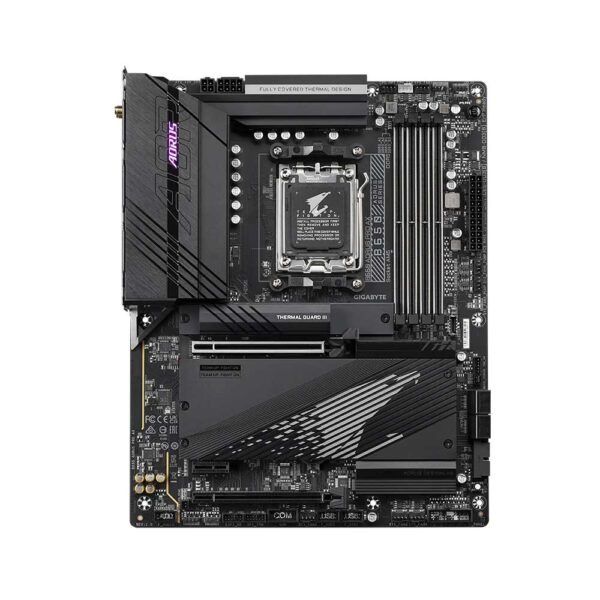

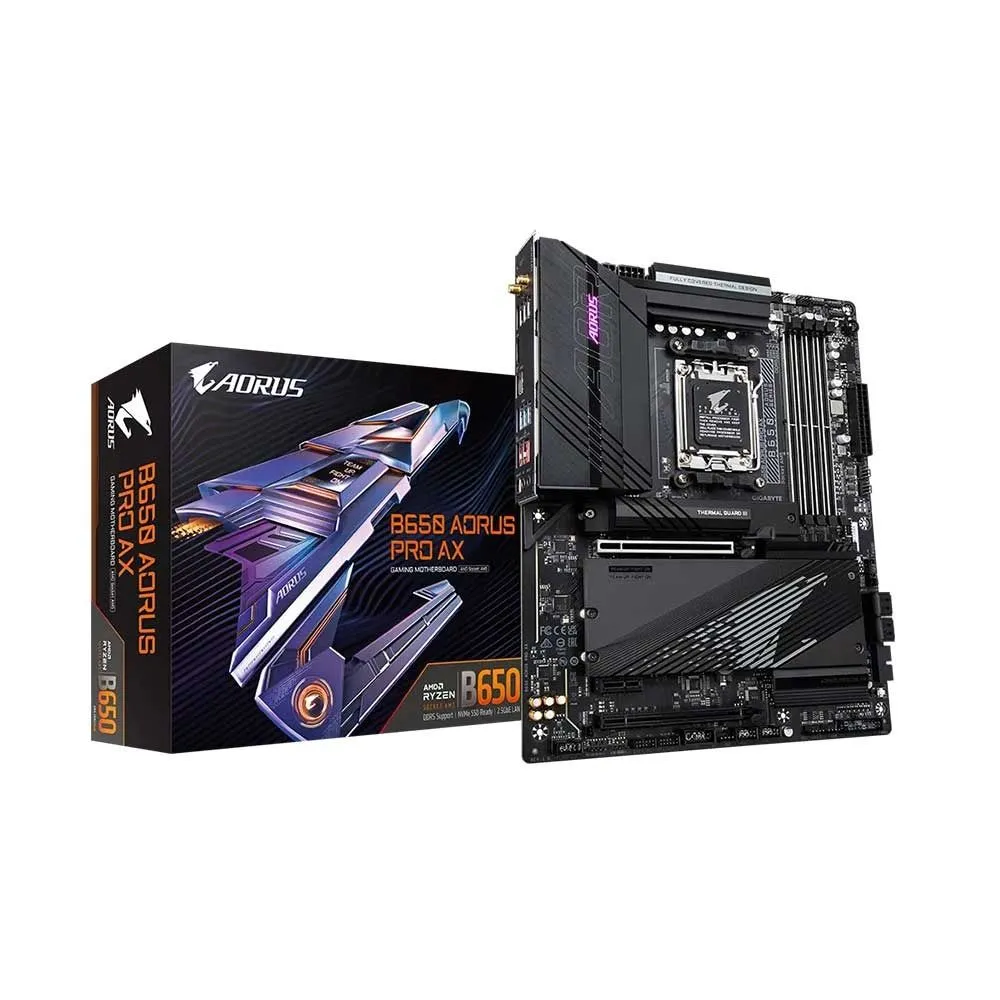

Gigabyte B650 Aorus Pro Ax Am5 Atx Motherboard

Gigabyte B650 Aorus Pro Ax Am5 Atx Motherboard

Sale!43%
  • AMD Socket AM5：Supports AMD Ryzenâ„¢ 7000 Series Processors
  • Unparalleled Performance：Twin 16*+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5：4*SMD DIMMs with AMD EXPOâ„¢ & Intel® XMP Memory Module Support
  • Next Generation Storage：1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
Original price was: ₹46,800.00.Current price is: ₹26,900.00. (Inclusive of GST)

Out of stock

Need Help? Contact Us
  Delivery & Return

Delivery & Return

We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.

Rules

All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

Interpretation and Definitions

All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

  Get it by  Jun 08 Jun 12
people have this in their carts right now. It's running out!
SKU: B650-AORUS-PRO-AX
Categories:,
Tags:, , , ,
Brand: Gigabyte
Guaranteed safe & secure checkout
Description
specifications
Additional information
Q & A

GIGABYTE B650 AORUS PRO AX AM5 ATX MOTHERBOARDGigabyte B650 Aorus Pro Ax Am5 Atx Motherboard - Green Apple Compunet

FEATURES

  • AMD Socket AM5：Supports AMD Ryzenâ„¢ 7000 Series Processors
  • Unparalleled Performance：Twin 16*+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5：4*SMD DIMMs with AMD EXPOâ„¢ & Intel® XMP Memory Module Support
  • Next Generation Storage：1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
  • Mega-Heatpipe & M.2 Thermal Guard III ：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
  • EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks：Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity：HDMI, Rear USB-C® 10Gb/s, Front USB-C® 20Gb/s and Upcoming GIGABYTE USB4 AIC Support
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

UNPARALLELED PERFORMANCE

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. Gigabyte B650 Aorus Pro AX Motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

OUTSTANDING THERMAL DESIGN

Gigabyte B650 Aorus Pro AX Motherboards’ unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

CONNECTIVITY

Gigabyte B650 Aorus Pro AX Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and WIFI connectivity.

PERSONALIZATION

Gigabyte B650 Aorus Pro AX Motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE

Gigabyte B650 Aorus Pro AX Motherboards Ultra Durableâ„¢ design provides product durability and high-quality manufacturing process.

Gigabyte B650 Aorus Pro AX Motherboards use the best components and reinforce every slots to make each of them solid and durable.

specifications

CPU
  • AMD Socket AM5

support for: AMD Ryzen™ 7000 Series Processors
Chipset AMD B650
Memory
  • Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPOâ„¢) and Extreme Memory Profile (XMP) memory module
Onboard Graphics 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Audio
  • Realtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio.
  • High Definition Audio
  • 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • Support for S/PDIF Out
LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
  • AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.2
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  • Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion Slots
  • CPU:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
  • For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • Chipset:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
  • The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.
  • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Interface

CPU:

  • 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)  Actual support may vary by CPU.
  • 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
  • 4 x SATA 6Gb/s connectors
USB

CPU:

  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • CPU + USB 2.0 Hub:
  • 4 x USB 2.0/1.1 ports on the back panel
  • Chipset:
  • 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
  • 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub:
  • 4 x USB 3.2 Gen 1 ports on the back pane
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 4 x system fan headers
  • 2 x system fan/water cooling pump headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 3 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB
  • 3.2 Gen 2x2 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x noise detection header
  • 1 x THB_U4 add-in card connector
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x serial port header
  • 1 x reset button
  • 1 x reset jumper
  • 2 x temperature sensor headers
  • 1 x Clear CMOS jumper

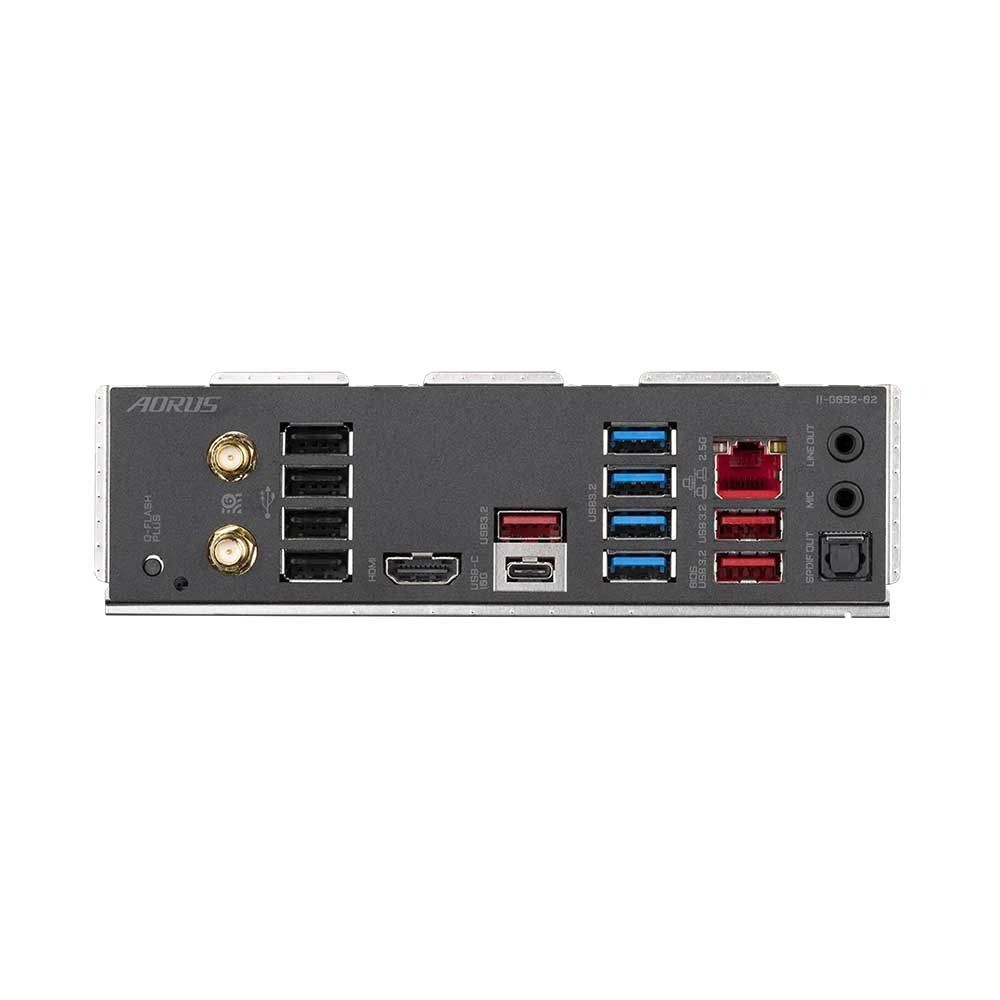

Back Panel Connectors
  • 1 x Q-Flash Plus button
  • 2 x SMA antenna connectors (2T2R)
  • 4 x USB 2.0/1.1 ports
  • 1 x HDMI port
  • 3 x USB 3.2 Gen 2 Type-A ports (red)
  • 1 x USB Type-C® port, with USB 3.2 Gen 1 support
  • 4 x USB 3.2 Gen 1 ports
  • 1 x RJ-45 port
  • 2 x audio jacks
  • 1 x optical S/PDIF Out connector
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • Noise detection
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model.
  • Supported functions of each application may also vary depending on motherboard specifications.
  • Support for Q-Flash
  • Support for Q-Flash Plus
Bundled Software
  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software
Operating System
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
Weight 1 kg
Brand

Gigabyte
Chipset

B650
color

Black
Memory Series

DDR5
Motherboard Series

Ultra Durable
Motherboard Size

ATX
Platform

AMD
Product Type

Gaming
RAM Type

DDR5
Socket

AM5
Warranty

3 Years
