Gigabyte B650 AORUS ELITE AX V2 ATX Motherboard

Gigabyte B650 AORUS ELITE AX V2 ATX Motherboard

Sale!38%
  • ATX Form Factor
  • AMD B650 Chipset
  • AM5 Socket
  • 4 x Dual-Channel DDR5-4000 (OC)
  • 4 x SATA III, 2 x M.2
  • 1 x PCIe 4.0 x16 Slot
  • 2 x PCIe 3.0 x1 Slots
  • 7.1-Channel Realtek ALC897 Codec
  • Wi-Fi 6E | Bluetooth 5.3 | 2.5 GbE
  • USB-C and USB-A 3.2 Gen 2 Ports
Original price was: ₹31,500.00.Current price is: ₹19,500.00. (Inclusive of GST)

Out of stock

Need Help? Contact Us
  Delivery & Return

Delivery & Return

We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.

Rules

All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

Interpretation and Definitions

All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

  Get it by  Jun 08 Jun 12
people have this in their carts right now. It's running out!
SKU: B650 AORUS ELITE AX V2
Categories:,
Tags:, , , , ,
Brand: Gigabyte
Guaranteed safe & secure checkout
Description
specifications
Additional information
Q & A

Gigabyte B650 AORUS ELITE AX V2 ATX Motherboard

( AMD Socket AM5, Supports AMD Ryzen 7000 Series CPU, 4 x DDR5 RAM Slots, Max 192 GB )

Gigabyte B650 AORUS ELITE AX V2 ATX Motherboard - Green Apple Compunet

Key Features

  • AMD Socket AM5：Supports AMD Ryzenâ„¢ 7000/ Ryzenâ„¢ 8000 Series Processors
  • Unparalleled Performance：Twin 12+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5：4*DIMMs with AMD EXPOâ„¢ & Intel® XMP Memory Module Support
  • Superfast Storage：1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
  • EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks：2.5GbE LAN & Wi-Fi 6E
  • Extended Connectivity：HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

All AORUS series gaming motherboards are equipped with an all-digital power design, which delivers the best stability under heavy workloads.

VRM Thermal Armor Advanced

High coverage MOSFETs and integrated molded heatsinks improve thermal efficiency by enhancing airflow and heat exchange.

3X Large Surface

The surface area has been increased up to 3X larger compared to traditional heatsinks, resulting in improved heat dissipation from the MOSFETs.

Real One-piece Build

The TRUE single-piece heatsink offers superior cooling performance compared to competitors’ multi-piece designs, thanks to its one-piece construction and larger surface area.

Multi-Cut Design

With its Multi-Cut Design, this heatsink includes multiple channels and inlets to enhance airflow, resulting in improved heat transfer performance.

6mm Heatpipe

6mm heatpipe helps to transfer heat between two heatsinks which improves overall thermal balance of the MOSFETs.

7W/mK Thermal Pad

Optimize hardware performance with our advanced 7W/mK Thermal Pad for efficient heat dissipation.

2X Copper Enhancement

Enhances system performance with improved heat dissipation, power handling, and seamless overclocking support.

Gigabyte B650 AORUS ELITE AX V2 ATX Motherboard - Green Apple Compunet

Smart Fan 6

ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring.

High Current Support

Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection.

Precision Control

Multiple temperature/fan speed control points for precise fan curve.

Dual Curve Mode

Slope/Stair dual mode for different user scenario.

Fan Stop

Fan can stop completely below users’ specified temperature point.

Smart Fan 6 BIOS UI

Gigabyte B650 AORUS ELITE AX V2 ATX Motherboard - Green Apple Compunet

Note: The image shown is for reference purposes and may vary depending on the specific model.

Enhance Fan Curve UI

Enhance fan curve control with an expanded number of control points, from 5 to 7, and a larger fan speed graph, enabling users to have more precise and effortless control over fan curve settings.

Slope/Stair Dual Graph Mode

Switch between Slope and Stair modes to adapt to various user scenarios. Slope mode provides a linear fan speed curve, while Stair mode maintains a constant fan speed within specified temperature intervals.

Manual Input

For advanced users, manual input of fan speeds is available for fine-tuning and precise control over the cooling system.

EZ Tuning

Simplify the process with EZ Tuning by setting 4 points on a rough temperature/fan speed scale. Smart Fan 6 will quickly generate a fan curve based on these points.

Fan Curve Profile

Save your customized fan curve profile in the BIOS ROM, ensuring it remains intact even after BIOS updates.

Enhancing VR Experiences with Wi-Fi 6E

Wi-Fi 6E enhances VR with faster speeds, lower latency, increased capacity, and stronger security, enabling seamless wireless streaming of high-quality VR games and improved multi-user experiences.

Lower Latency

Lower latency ensures minimal delay between their actions and the corresponding response in online games, resulting in a more responsive and immersive gaming experience.

Increased Capacity

Wi-Fi 6E’s increased capacity ensures smoother gameplay by minimizing congestion and maintaining consistent performance.

Higher Speeds

Faster transmission speeds enable quick downloads, seamless online gaming, and smooth video streaming without interruptions.

Broader spectrum

Wi-Fi 6E’s use of the 6 GHz frequency band provides additional bandwidth, reducing congestion and interference from other devices.

GIGABYTE Ultra-high Gain Antenna

Experience enhanced signal strength with the GIGABYTE Ultra-high gain Antenna, which incorporates a smart antenna function to optimize Wi-Fi signal transmission.

Gigabyte B650 AORUS ELITE AX V2 ATX Motherboard - Green Apple Compunet

Enjoy reliable gaming audio High Quailty Sound

Enjoy a high-quality sound experience, which supports 7.1 channel playback, features an advanced microphone array, and offers versatile connectivity options for gaming and entertainment.

Audiophile Grade Capacitors

Premium Grade Audio capacitors provide stable current, delivering a studio-quality experience.

Enhanced Intuitive UX

Gigabyte B650 AORUS ELITE AX V2 ATX Motherboard - Green Apple Compunet
GIGABYTE User-Centred(UC) BIOS has enhanced the BIOS UX to provide users with an optimized experience featuring an intuitive operation interface and an aesthetically pleasing design.

Quick Access Function

Gigabyte B650 AORUS ELITE AX V2 ATX Motherboard - Green Apple Compunet
GIGABYTE UC BIOS’ Quick Access function selects 9 practical preset options from ADVANCE MODE and places them in EASY MODE for effortless access without switching or searching.

specifications

Component Specification
CPU AMD Socket AM5, support for: AMD Ryzenâ„¢ 7000/ Ryzenâ„¢ 8000 Series Processors
Chipset AMD B650
Memory
  • Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPOâ„¢) and Extreme Memory Profile (XMP) memory module
Onboard Graphics
  • Integrated Graphics Processor with AMD Radeonâ„¢ Graphics support:
  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • Support for DisplayPort 1.4 version and HDR.
  • Support for HDMI 2.1 version and HDCP 2.3.
  • Support for native HDMI 2.1 TMDS compatible ports.
  • (Graphics specifications may vary depending on CPU support.)
Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Realtek® Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless (Actual data rate may vary depending on environment and equipment.)
Expansion Slots
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzenâ„¢ 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Storage Interface
  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: - AMD Ryzenâ„¢ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  • 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: - AMD Ryzenâ„¢ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
  • 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/2580 PCIe 4.0 x4/x2 SSDs
  • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
  • CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • CPU + USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel
  • Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 3 x system fan headers
  • 1 x system fan/water cooling pump header
  • 3 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 3 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  • 1 x reset button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

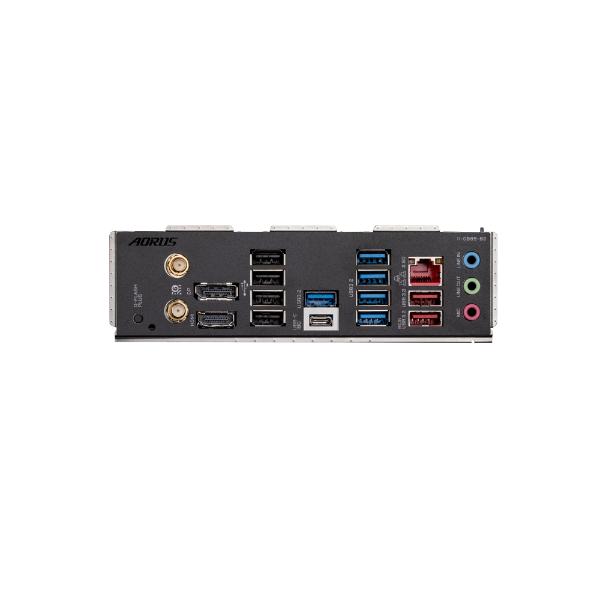

Back Panel Connectors
  • 1 x Q-Flash Plus button
  • 2 x SMA antenna connectors (2T2R)
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x USB Type-C® port, with USB 3.2 Gen 2 support
  • 2 x USB 3.2 Gen 2 Type-A ports (red)
  • 5 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control (Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.)
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software
  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software
Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Weight 1 kg
Brand

Gigabyte
Chipset

B650
color

Black
Memory Series

DDR5
Motherboard Series

Ultra Durable
Motherboard Size

ATX
Platform

AMD
Product Type

Gaming
RAM Type

DDR5
Socket

AM5
Warranty

3 Years
