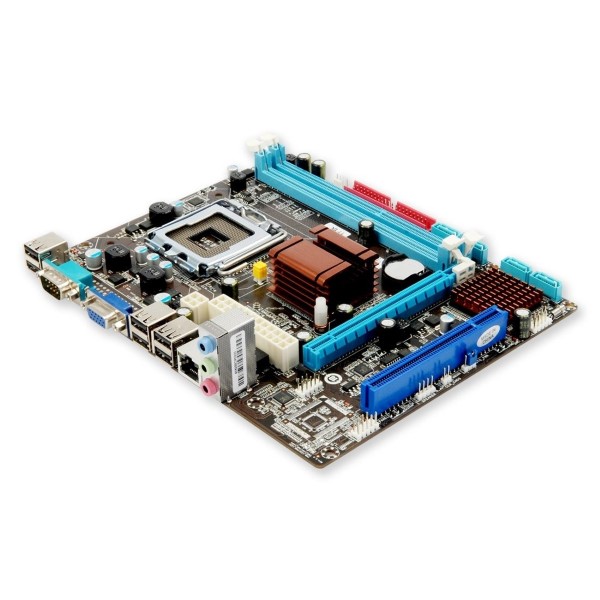

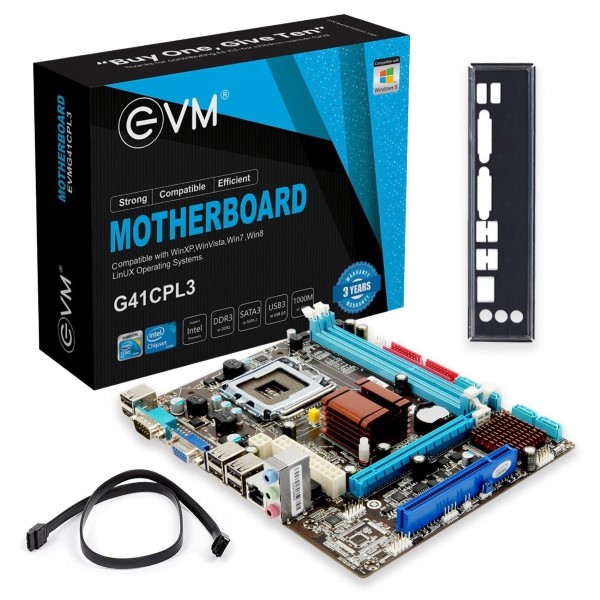

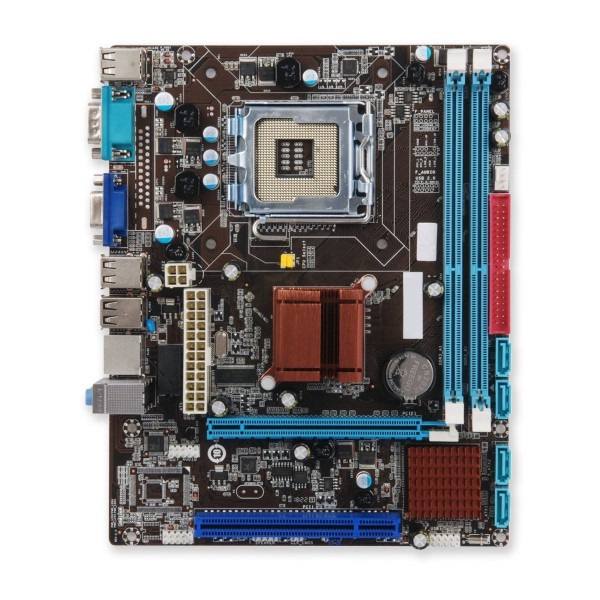

EVMG41CPL3 EVM Intel G41 DDR3 Motherboard

EVMG41CPL3 EVM Intel G41 DDR3 Motherboard

MODEL – EVMG41CPL3

• INTEL® G41 CHIPSET + INTEL® ICH7 CHIPSET
• SUPPORTS INTEL® CORE™ 2 QUAD / CORE™ 2 DUO
• SOCKET 775
• SUPPORTS DDR3 1333/1600/1066 MHZ RAM
• SATA PORT 3GB/S * 4
• IDE PORT * 1
• PCI SLOT *1
• PCI EXP 16X * 1

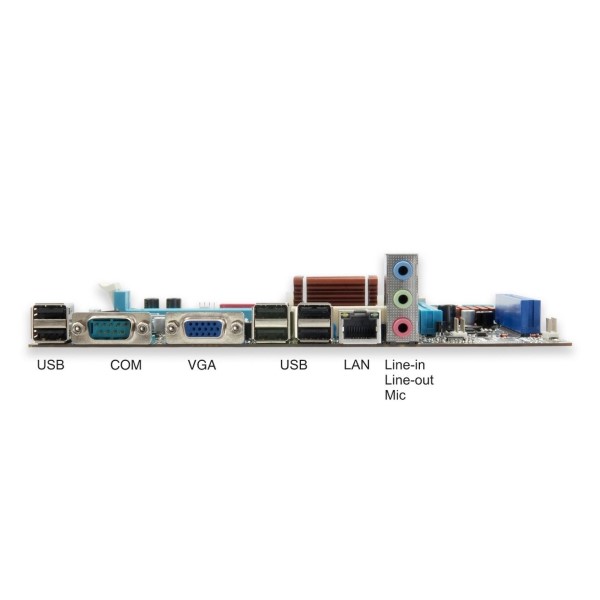

• MIC IN / LINE IN / LINE OUT
• USB 2.0 PORT * 8 ( 6 AT BACK PANEL / PIN HEADER FOR 2 USB )

The EVMG41CPL3, is designed with compatibility for Intel® Core™ 2 Quad and Core™ 2 Duo processors, utilizing the Intel® G41 and Intel® ICH7 chipsets.

It supports DDR3 RAM with varying speeds, providing flexibility for different performance needs.

The storage connectivity includes 4 SATA ports (3GB/s) and 1 IDE port, allowing for a combination of modern and legacy storage devices.

Expansion

It features a PCI slot and a PCI Express 16X slot, offering options for additional cards and peripherals. The audio capabilities cover microphone input, line input, and line output. With 8 USB 2.0 ports, 6 conveniently located at the back panel and 2 available via a pin header, the motherboard facilitates ample connectivity for USB devices. Overall, the EVMG41CPL3 is a versatile and feature-rich motherboard catering to a range of computing needs.
