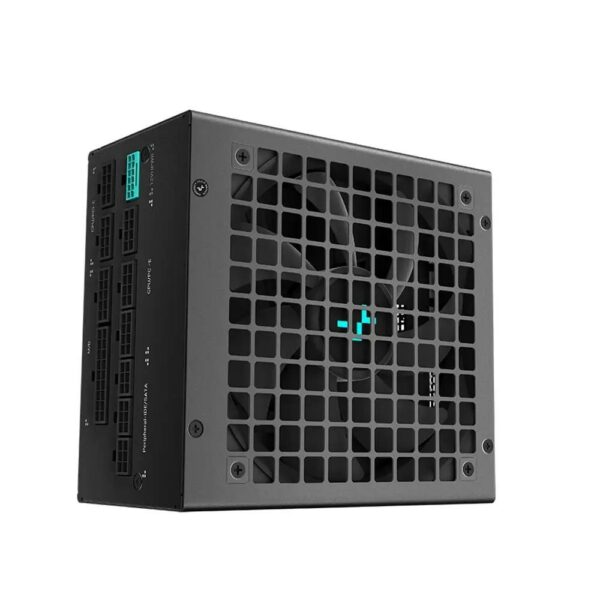

Deepcool PX1000G 1000w 80 Plus Gold Modular Power Supply
- The DeepCool PX1000G is a newly designed power supply that meets the latest ATX 3.0 standard. With a dedicated 12VHPWR, 2 EPS, and 3 PCI-e ports, the PX1000G provides stable power for a wide range of components.
- 100,000 Hours MTBF, Support ATX12V V3.0
- Equipped with the new PCI-e Gen 5.0 12VHPWR cable, the PX-G provides up to 600W for power hungry GPUS.
- The PX1000G comes equipped with the option to switch into semi-fanless operation. In hybrid mode, the 135mm FDB fan will dynamically adjust out of its zero RPM state once the system load hits a certain threshold.
- The PX1000G includes a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, and UVP.
Out of stock

Deepcool PX1000G 1000w 80 Plus Gold Modular Power Supply

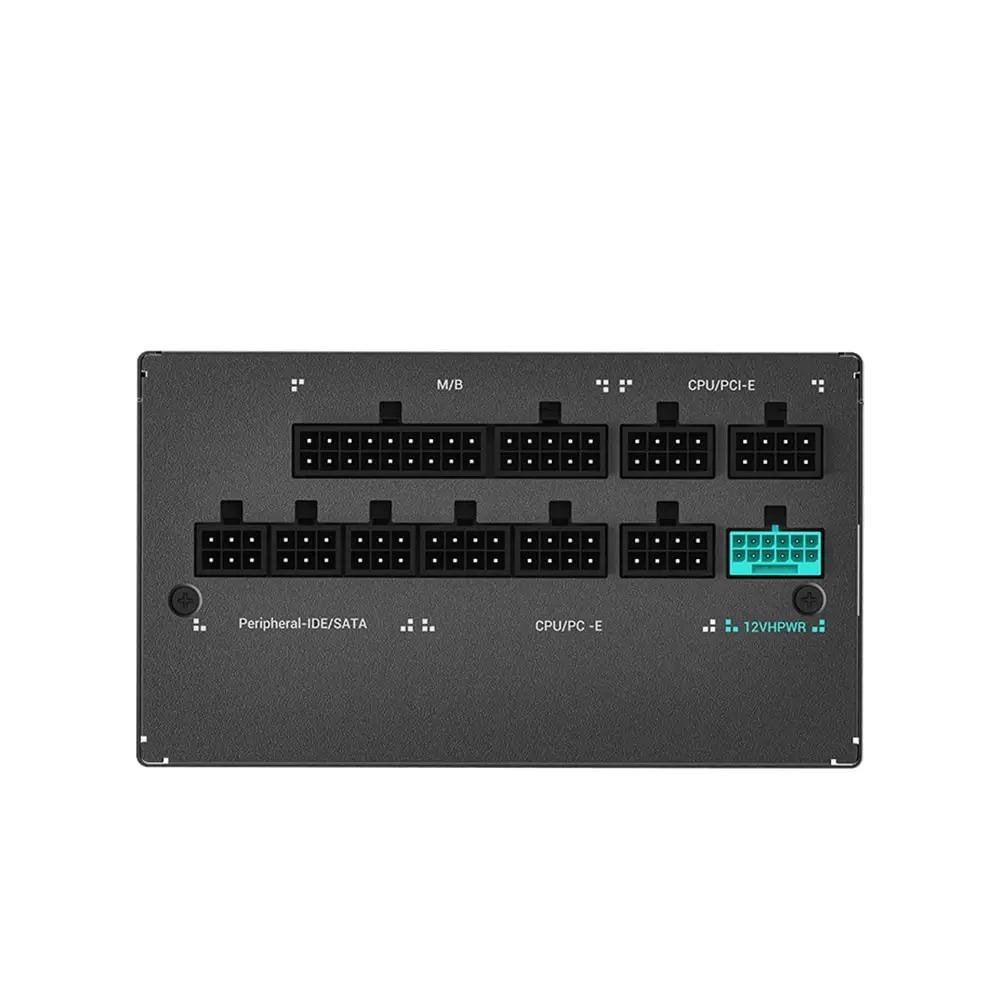

The DeepCool PX1000G is a newly designed power supply that meets the latest ATX 3.0 standard. With a dedicated 12VHPWR, 2 EPS, and 3 PCI-e ports, the PX1000G provides stable power for a wide range of components.
PAST, PRESENT,AND FUTURE
With the ability to provide three times the total GPU and twice the total system power for 0.1 ms, power spikes will never be an issue. The PX1000G will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
PREMIUM QUALITY
Solid and reliable power is provided through the use of full Japanese 105C capacitors. Due to the high quality of the PSU build, the PX1000G will operate at altitudes up to 5000 meters above sea level.
RELIABLE STABILITY
Through the use of a dual main capacitor topology, the PX1000G can keep the hold-up time to ≥ 16ms under full load.
PCI-E 5.0 POWER PERFECTED
Equipped with the new PCI-e Gen 5.0 12VHPWR cable, the PX-G provides up to 600W for power hungry GPUS.
STATIC TO DYNAMIC
DEEPCOOL PX1000G PX1000G comes equipped with the option to switch into semi-fanless operation. In hybrid mode, the 135mm FDB fan will dynamically adjust out of its zero RPM state once the system load hits a certain threshold.
SPECIFICATIONS
Model | R-PXA00G-FC0B-UK |
Type | ATX12V V3.0 |
Product Dimensions | 150×160×86mm (W x L x H) |
Efficiency certification | 80Plus GOLD/Cybenetics_Platinum |
Fan Size | 135mm |
Fan Bearing | FDB (Fluid Dynamic Bearing) |
Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
Power Good Signal | 100-150ms |
Hold Up Time | ≥16ms |
Efficiency | ≥90% Under Typical Load(50% Loading) |
Protection | OPP/OVP/SCP/OTP/OCP/UVP |
Operation Temperature | 0 - 40℃ |
Regulatory | CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/KC |
Erp Regulation | ErP 2014 |
MTBF | 100,000 Hours |
Warranty | 10 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
Weight | 1 kg |
---|---|
Brand | Deepcool |
color | Black |
EAN Code | 6933412716778 |
Modular | Fully Modular |
Product Type | Gaming |
PSU Certification | Gold |
Warranty | 10 Years |
Wattage | 1000W |
