Cooler Master V Platinum V2 delivers silent operation, featuring an ultra-quiet Mobius fan, a protective conformal coating heatsink, smart thermal control, zero-RPM fan mode, fully modular cabling, and 80 Plus Platinum efficiency, backed by a 12-year warranty.

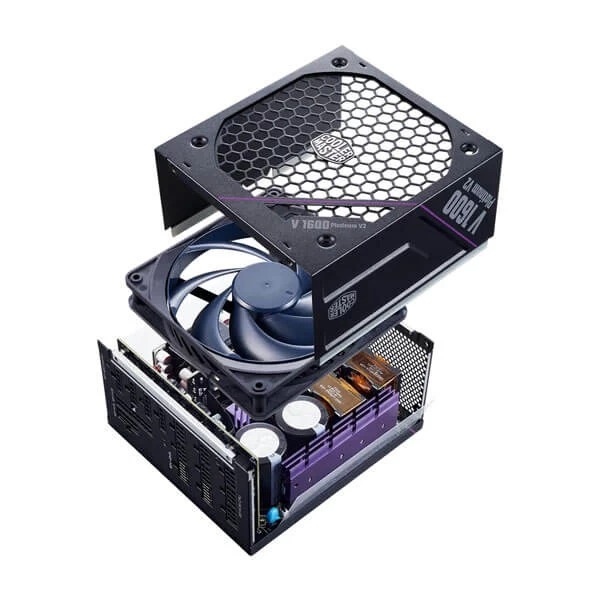

Purple anodic-coated heat sink with bevel cut lowers average temperatures, compared to traditional heat sinks. Bevel cuts bring out the heat source more effectively, and after concentrating the flow field, benefiting the heat dissipation.
*The temperature difference at fan standstill is 5.2 °C.
An interleaved PFC decreases power loss and improves efficiency by minimizing current, reducing interference, and reducing output capacitor ripple current.
Includes ATX 3.1 support and two 90° 12V-2×6 connectors featuring more reliability, higher electrical durability, improved safety, and the capacity to deliver up to 600W per connector, totaling an impressive 1200W output to empower your GPU.
*All performance stats confirmed in 25°C ambient temperature testing.

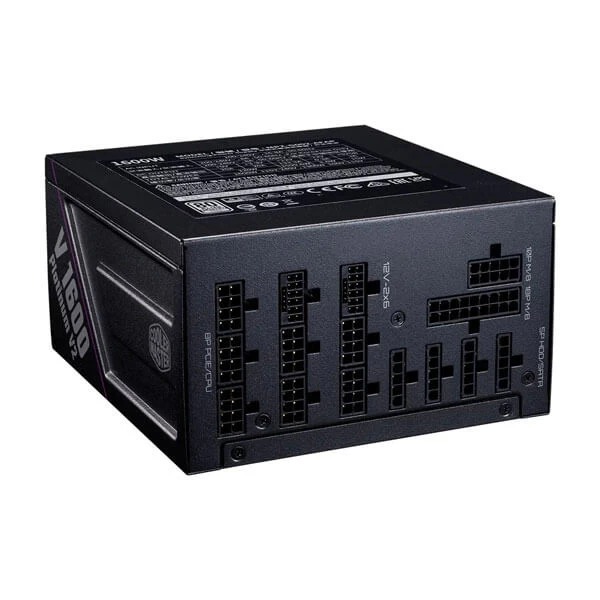

A modular cable management design reduces clutter, increases airflow, and improves overall efficiency as well as thermal performance.
Need help choosing the right power supply for your system? Try out our comprehensive and easy-to-use PSU calculator.
| Model | V Platinum 1600 V2 |
| Item Code | MPZ-G002-AFAP-BIN |
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 100 – 240V |
| Input Current | 16 – 8A |
| Input Frequency | 50 – 60Hz |
| Dimensions (L x W x H) | 160 x 150 x 86mm |
| Fan Size | 135 mm |
| Fan Bearing | LDB (Mobius FAN) |
| Fan Speed | 2400±10% rpm |
| Efficiency | ≥ 92% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Platinum |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0 ~ 50℃ |
| Power Good Signal | 100 – 150ms |
| Hold Up Time | ≥ 16ms |
| MTBF | >100,000 hours |
| Protections | OPP / OVP / OTP / OCP/ SCP / UVP / Surge & Inrush Protection |
| Regulatory | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region’s request.) |
| Connectors | |
| ATX 24 Pin | x1 = 1x (650mm) |
| EPS 4+4 Pin | x1 = 1x (650mm) |
| EPS 8 Pin | x1 = 1x (650mm) |
| SATA | x16 = 4x (500+120+120+120mm) |
| Peripheral 4 Pin | x4 = 1x (500+120+120+120mm) |
| PCI-e 6+2 Pin | x5 = 5x (550mm) |
| 12V-2×6 | x2 = 2x (650mm) |
| Warranty | 12 years |
| Note | *** Images are for Representation purposes only *** Features, Price, Specifications are subject to change without notice. |
| Product Type | Gaming |
|---|---|
| color | Black |
| Brand | Cooler Master |
| PSU Certification | Platinum |
| Wattage | 1600W |
| Warranty | 12 Years |
| EAN Code | 4719512140963 |

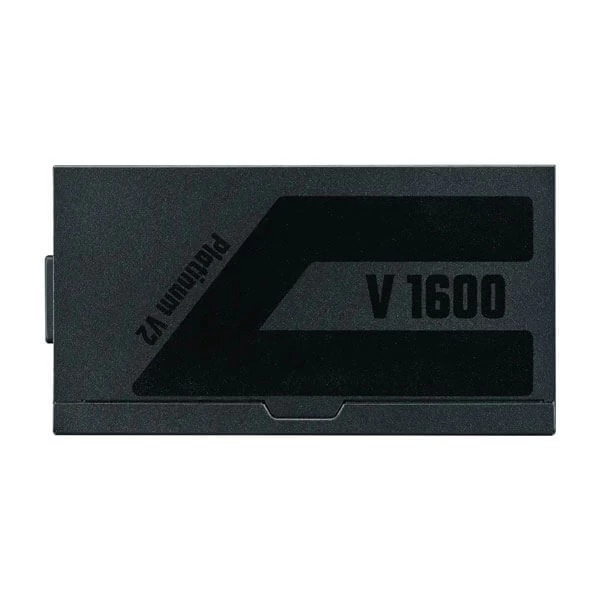

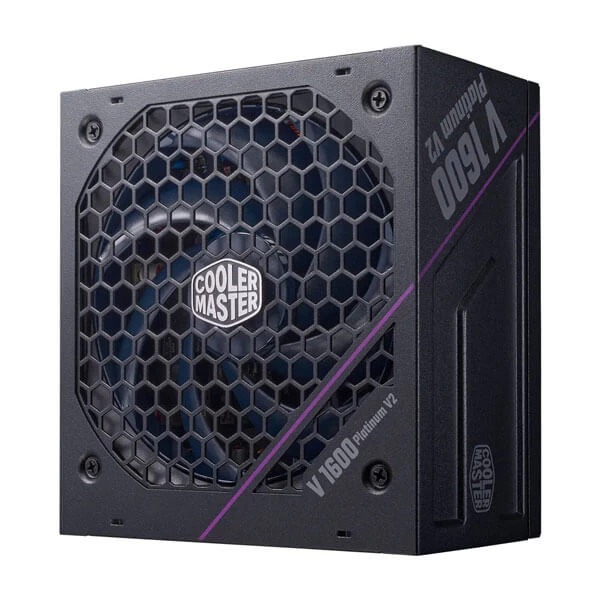

Cooler Master V Platinum 1600 Watt V2 ATX 3.1 Fully Modular SMPS
