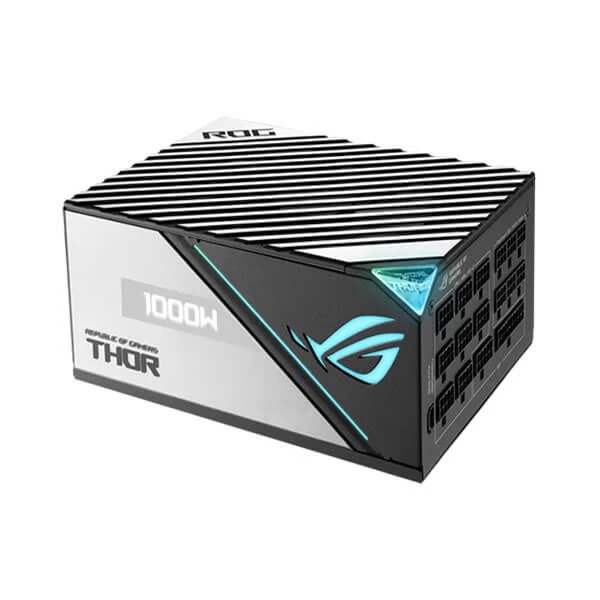

Asus ROG Thor 1000 P2 1000 Watt 80 Plus Platinum SMPS
- 1000W Single +12V Rail
- 135mm Cooling Fan
- Intel ATX 12V Specification
- 9 x PCIe Connectors
- 12 x SATA Connectors
- 6 x 4-Pin Peripheral Connectors
- Sleeved Cables
- RGB Lighting

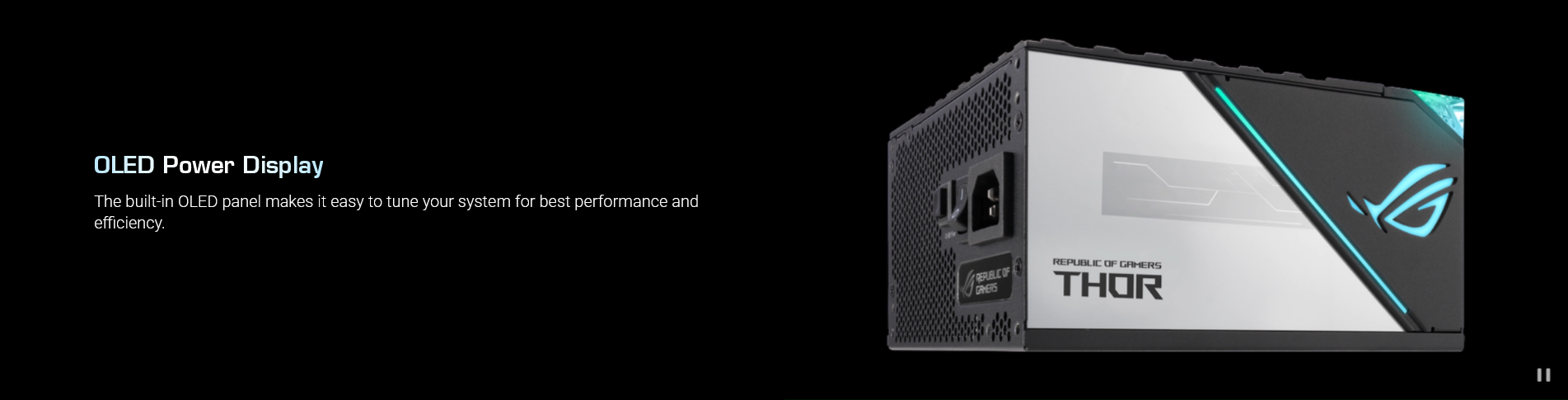

- Built-In OLED Display

Asus ROG Thor 1000 P2 1000 Watt 80 Plus Platinum SMPS

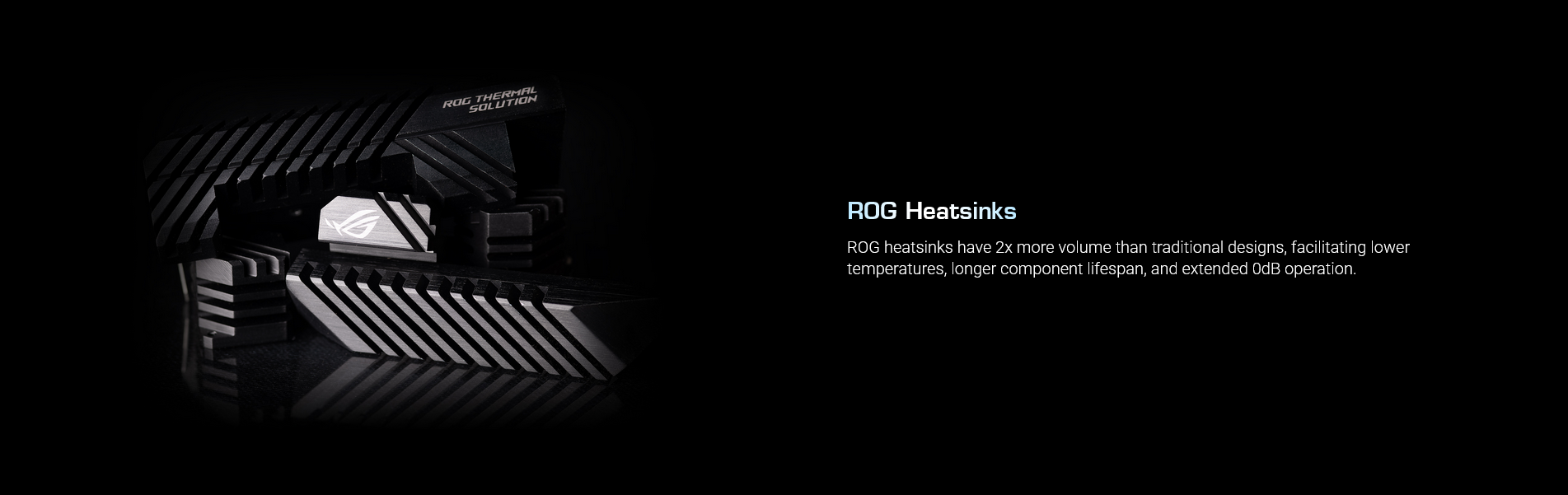

ASUS ROG Heatsinks
ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.

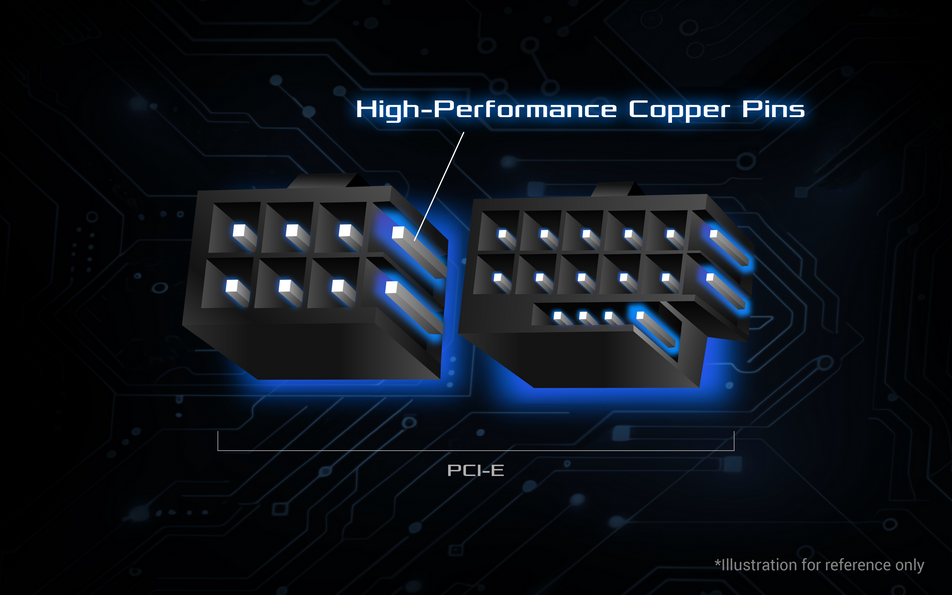

High-performance Copper Pins
Upgraded PCIe® connectors featuring superior thermal conductivity ensure cooler operation and improved power delivery efficiency.
This translates to a significant 29% reduction in connector temperatures (up to -12.28°C), promoting optimal performance and stability for even the most demanding graphics cards.

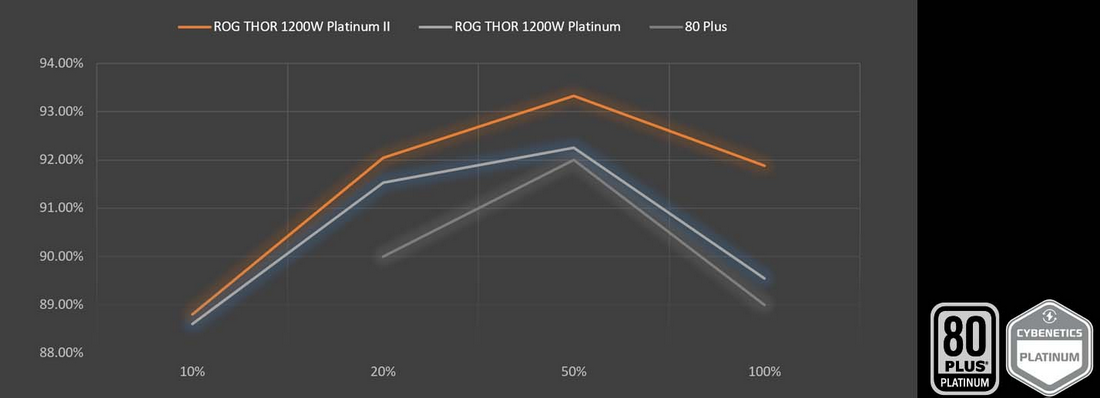

80 Plus Platinum Certification
The ROG Thor 1200W Platinum II utilizes low-ESR Japanese capacitors to ensure efficient operation.
These upgrades enable an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% efficiency at 50% load.
The increased efficiency results in less heat, reduces fan noise, and increases reliability.
SPECIFICATIONS
Model | ROG-THOR-1000P2-GAMING |
Dimensions | 190 x 150 x 86 mm |
Efficiency | 80Plus Platinum |
Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
Hazardous Materials | ROHS |
AC Input Range | 100-240Vac |
Thermal Features | ROG Thermal Solution |
DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
Maximum Load | 25A 25A 83A 0.3A 3A |
Combined Load | 125W 125W 996W 3.6W 15W |
Total Output | 1000W |
Connectors |
|
Package Contents | Power Cord x 1 Motherboard Power Cable x1 (610mm) CPU Cable x2 (650mm) PCIE Cable 16-pin x1 (675mm) PCIE 1-to-1 Cable x4 (675mm) PCIE 1-to-2 Cable x2 (675+75mm) SATA 1-to-4 Cable x3 (400+120+120+120mm) Peripheral 1-to-3 Cable x2 (450+120+120mm) Addressable RGB Cable x1 (800mm) ROG sticker x 1 ROG cable tie x 6 Sleeved Cable Combs (6-pin) x 4 Sleeved Cable Combs (8-pin) x 10 Sleeved Cable Combs (24-pin) x 2 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1 |
Weight | 2.37 KG |
AURA SYNC | ARGB |
0dB Fan Button | Yes |
Cybenetics Noise Level Certification | A++ |
Warranty | 10 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
Weight | 1 kg |
---|---|
Brand | Asus |
color | Black |
PSU Certification | Platinum |
Modular | Fully Modular |
Wattage | 1000W |
Product Type | Gaming |
EAN Code | 4711081746294 |
