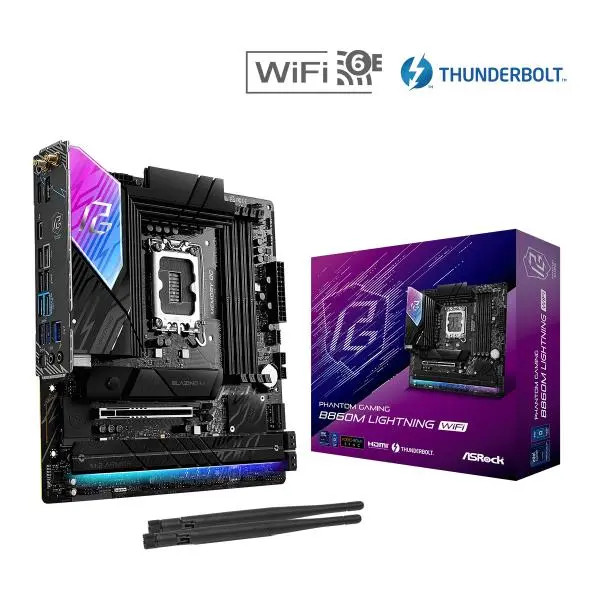

Asrock PHANTOM GAMING B860M Lightning WiFi
Sale!49%
Original price was: ₹38,499.00.₹19,749.00Current price is: ₹19,749.00. (Inclusive of GST)
Shipping Policy
Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed. Shipping Partners : FedEx, Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Green Apple Compunet DOES NOT Have any Control over Operations of Shipping Partners. Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays. Loss or damage occured during shipping is Green Apple Compunet Responsibility. You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package. You must notify Green Apple Compunet of damaged or missing items from your order within 24-hours of receiving your package.
Get it by
Nov 06 Nov 10
Guaranteed safe & secure checkout
Description
SPECIFICATIONS
Additional information
Q & A
Asrock PHANTOM GAMING B860M Lightning WiFi
FAST MYSTERIOUS UNBEATABLE
Asrock Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
- Asrock PHANTOM GAMING B860M Supports Intel Core Ultra Processors (Series 2) (LGA1851)
- 12+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA
- 4 x DDR5 DIMMs Supports Dual Channel, up to 8666+ (OC)
- Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt 4 Type-C Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
- 1 PCIe 5.0 x16 4 SATA3 1 Blazing M.2 (PCIe Gen5x4) 3 Hyper M.2 (PCIe Gen4x4)
- 1 Thunderbolt 4 Type-C (Rear) 3 USB 3.2 Gen2 (2 Rear, 1 Front Type-C) 6 USB 3.2 Gen1 (4 Rear, 2 Front) 6 USB 2.0 (2 Rear, 4 Front)
SPECIFICATIONS
| Category | Details |
|---|---|
| Unique Features | PCIe Gen5, DDR5 Dual Channel, Thunderbolt 4, Killer LAN/Wi-Fi, BIOS Flashback, ASRock Auto Driver Installer, Post Status Checker |
| CPU Support | Intel® Core™ Ultra Processors (Series 2), Hybrid Tech, Turbo Boost Max 3.0, Thermal Velocity Boost, Adaptive Boost, Built-in NPU |
| Chipset | Intel® B860 |
| Memory | 4x DDR5 DIMMs (up to 256GB), Supports XMP 3.0, Up to 8666+ MHz (OC), CUDIMM & non-ECC |
| Graphics Support | Intel Xe LPG, 1x HDMI 2.1 (4K@120Hz), 1x DP 1.4 (8K@60Hz), 1x Thunderbolt 4 (8K@60Hz) *Requires CPU with iGPU |
| Audio | 7.1 CH HD (Realtek ALC1220), Impedance Sensing, Nahimic Audio |
| LAN | Killer E3100G 2.5G LAN with Killer Software & DoubleShot™ Pro |
| Wi-Fi | Wi-Fi 6E (Intel AX), Dual Band 2×2, BT 5.3, MU-MIMO, Killer Software, 6GHz support (Windows 11 only) |
| Expansion Slots | – 1x PCIe 5.0 x16- 1x M.2 (Wi-Fi/BT Key E) |
| Storage Interface | – 1x PCIe Gen5x4 M.2- 3x PCIe Gen4x4 M.2- 4x SATA 6Gb/sSupports RAID 0/1/5/10, VMD, NVMe boot |
| USB Ports | – Rear: 1x Thunderbolt 4, 2x USB 3.2 Gen2, 4x USB 3.2 Gen1, 2x USB 2.0- Front: 1x USB 3.2 Gen2 Type-C, 2x USB 3.2 Gen1, 4x USB 2.0 |
| Internal Headers | – RGB & ARGB Headers (12V/5V LED Strip support)- 6x Fan Headers (Smart Fan Control)- USB 2.0, USB 3.2 Gen1, USB-C Front Panel Headers |

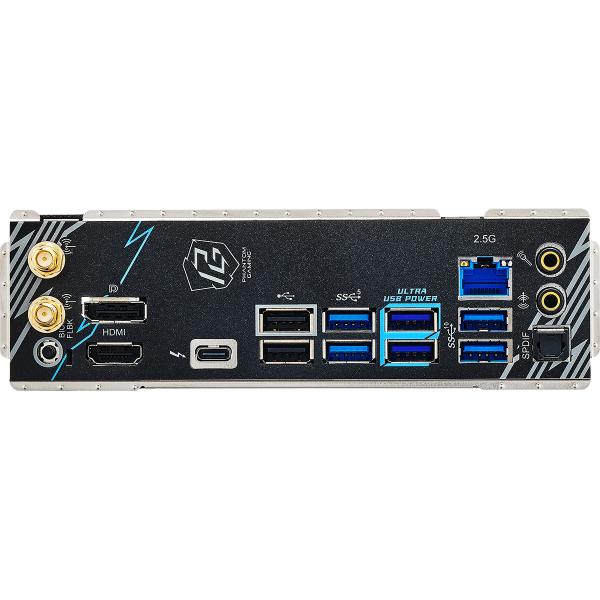

| Rear I/O Ports | HDMI, DisplayPort, SPDIF, Thunderbolt 4, 6x USB-A, RJ-45 LAN, BIOS Flashback, Line-Out, Mic-In, Antenna Ports |
| BIOS | 256Mb UEFI AMI BIOS, EZ Mode, Instant Flash, Auto Driver Installer |
| Software Support | ASRock Polychrome Sync, Phantom Gaming Tuning, Killer Control Center |
| Accessories | 2x SATA cables, 2x Wi-Fi Antennas, 1x Thermistor Cable, 1x M.2 screw |
| Form Factor | Micro ATX (9.6 x 9.6 inches, 2oz Copper PCB) |
| Power Phases | 12+1+1+1+1 Power Phase Design, 80A SPS, Enlarged Heatsink Armor |
| OS Support | Microsoft Windows 11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready |
| Brand | ASRock |
|---|---|
| Chipset | B860 |
| Socket | LGA 1851 |
| Motherboard Series | AsRock Phantom |
| Motherboard Size | mATX |
