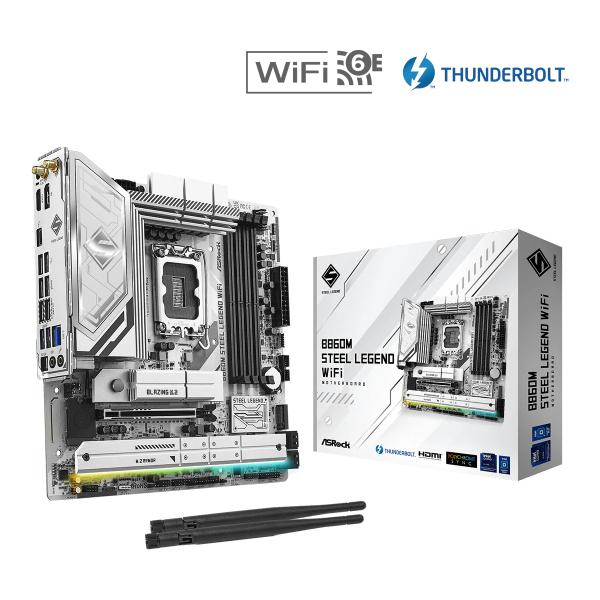

ASROCK B860M STEEL LEGEND WIFI MOTHERBOARD
Sale!50%
Original price was: ₹39,499.00.₹19,849.00Current price is: ₹19,849.00. (Inclusive of GST)
Shipping Policy
Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed. Shipping Partners : FedEx, Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Green Apple Compunet DOES NOT Have any Control over Operations of Shipping Partners. Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays. Loss or damage occured during shipping is Green Apple Compunet Responsibility. You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package. You must notify Green Apple Compunet of damaged or missing items from your order within 24-hours of receiving your package.
Get it by
Nov 06 Nov 10
Guaranteed safe & secure checkout
Description
SPECIFICATIONS
Additional information
Q & A
ASROCK B860M STEEL LEGEND WIFI MOTHERBOARD
- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
- 12+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 8666+ (OC) - 1 PCIe 5.0 x16
- Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-C
- Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3
1 Blazing M.2 (PCIe Gen5x4)
3 Hyper M.2 (PCIe Gen4x4) - Asrock 1 Thunderbolt™ 4 Type-C (Rear)
3 USB 3.2 Gen2 (2 Rear, 1 Front Type-C)
6 USB 3.2 Gen1 (4 Rear, 2 Front)
6 USB 2.0 (2 Rear, 4 Front) - Realtek 2.5G LAN
- 802.11axe Wi-Fi 6E + Bluetooth
- Supports BIOS Flashback, M.2 Bottom Heatsink
SPECIFICATIONS
| Category | Details |
|---|---|
| Unique Features | PCIe Gen5 (Graphics, M.2), Dual Channel DDR5, Thunderbolt™ 4 Type-C (40Gbps), BIOS Flashback, Post Status Checker, ASRock Auto Driver Installer |
| Durability | 12+1+1+1+1 Power Phase (80A SPS), Enlarged Heatsink Armor, Flexible I/O Shield, 20K Black Caps |
| Connectivity | Killer 2.5G LAN, Wi-Fi 6E (802.11axe), Bluetooth 5.3, Dragon LAN Software, Killer DoubleShot™ Pro |
| CPU Support | Intel® Core™ Ultra (Series 2), Hybrid Tech, Boost Max 3.0, TVB, ABT, Integrated NPU |
| Chipset | Intel® B860 |
| Memory | 4×DDR5 DIMMs (up to 8666+ MHz OC), max 256GB, supports XMP 3.0 |
| Graphics | Intel Xe LPG HDMI 2.1 (up to 4K 120Hz) DisplayPort 1.4 (up to 8K 60Hz) Thunderbolt 4 (up to 8K 60Hz)** |
| Audio | Realtek ALC1220, 7.1 CH, Nahimic Audio, Impedance Sensing, Isolated PCB layers |
| LAN | Dragon RTL8125BG, 2.5Gb/s, Advanced QoS and Smart Bandwidth Management |
| Wireless | Intel Wi-Fi 6E (802.11axe), MU-MIMO, Dual Band 2×2, Bluetooth 5.3 |
| PCIe/Expansion | 1× PCIe 5.0 x16 (from CPU) |
| Storage | 1× PCIe Gen5x4 M.2 (CPU) 3× PCIe Gen4x4 M.2 + 4× SATA (Chipset) RAID 0/1/5/10 support |
| USB Ports | Thunderbolt 4 Type-C (Rear), USB-C 3.2 Gen2 (Front), 2× USB-A Gen2, 6× USB-A Gen1, 6× USB 2.0 |
| Rear I/O Ports | HDMI, DP 1.4, Optical S/PDIF, 4× USB 3.2 Gen1, 2× USB 3.2 Gen2, 2× USB 2.0, Thunderbolt 4, RJ-45 LAN, Line Out, Mic In, Antenna Ports |
| Fan Headers | 2× CPU Fan (1A/3A), 4× Chassis Fan (3A), 1× AIO Pump (3A), Smart Fan Control |
| Aesthetic & Control | RGB Header, 3× ARGB Headers, Polychrome SYNC |
| BIOS | 256Mb UEFI BIOS, EZ Mode, Full HD GUI, Instant Flash, My Favorites, Auto Driver Installer |
| Software | ASRock A-Tuning, Dragon LAN Software, Polychrome SYNC, Killer Control Center |
| Accessories | 2× SATA cables, 2× WiFi Antennas, Thermistor Cable, M.2 Screw |
| Form Factor | Micro ATX (9.6″ x 9.6″, 24.4cm x 24.4cm), 2oz Copper PCB |
| Operating System | Microsoft Windows 11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready |
| Brand | ASRock |
|---|---|
| Chipset | B860 |
| Memory Series | DDR5 |
| Socket | LGA 1851 |
| Motherboard Size | mATX |
| Motherboard Series | AsRock Steel Legend |
