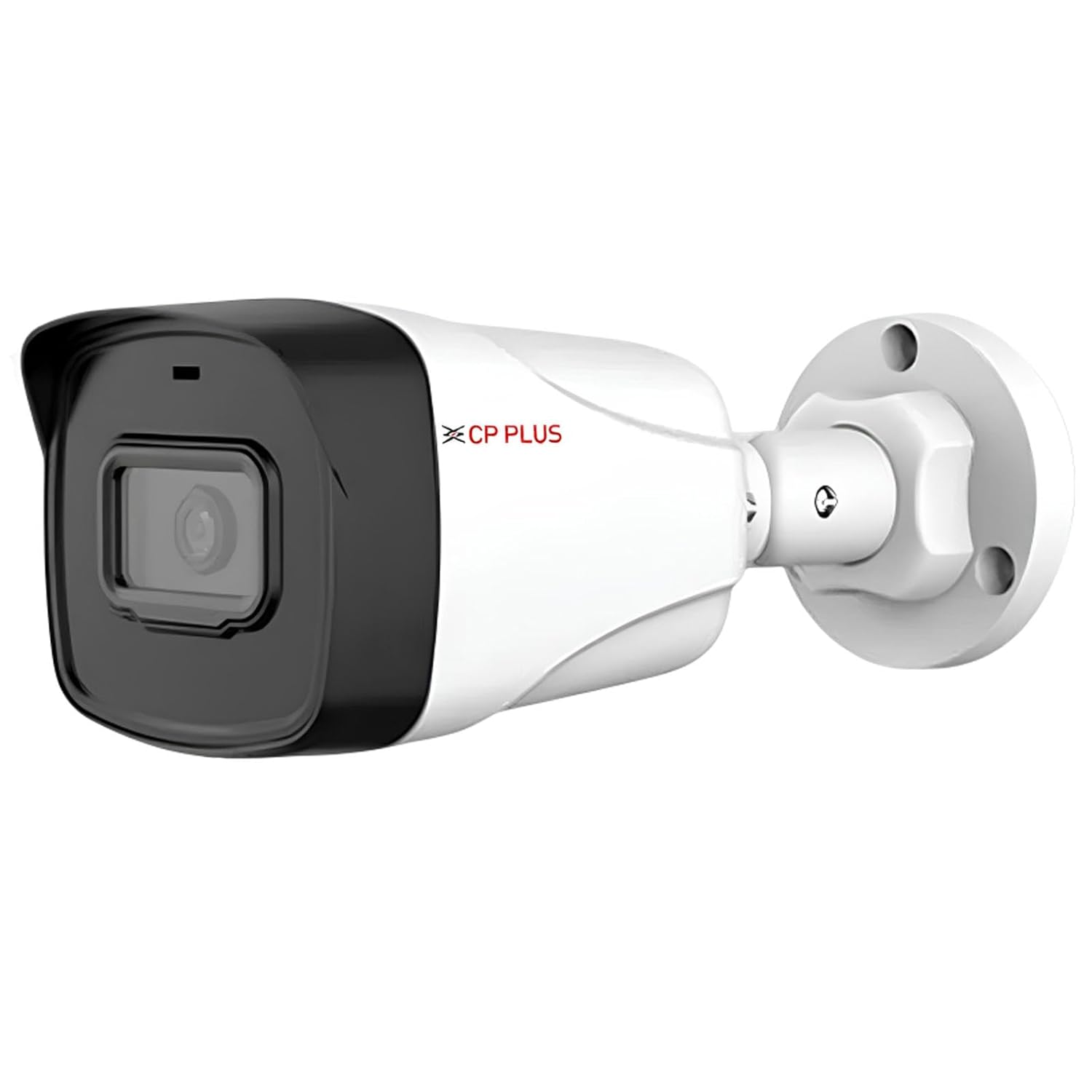

CP PLUS 4MP Full HD IR Bullet CCTV Camera with Dual Light, 6mm Lens & Color Night Vision – CP-UNC-TA41L6C-D-Q

Original price was: ₹8,899.00.Current price is: ₹5,069.00. (Inclusive of GST)

38 People watching this product now!

Out of stock

SKU: CP- UNC-TA41L6C-D-Q 6MM
  • 1/2.8″ 4MP PS CMOS Image Sensor (0.9071 centimeters)
  • Max. 4MP (2688 × 1520)@1-30fps/ 4MP (2560 × 1440)@1-25/30
  • Instastream, H.265, H.264, H.264H, H.264B, MJPEG
  • Support Triple stream
  • WDR(120dB), Day/Night(ICR), 3D NR, AWB, AGC, BLC, HLC
  • 6mm Fixed Lens
  • Support Built-in Mic
  • IR Range of 60 Mtr., IP67, PoE



System Overview

With features of simple installation, easy operation, and high performance-cost ratio, This Series camera is applicable to small and medium-sized scenes, such as homes/residences, small sized retail stores, and other small and medium-sized enterprises.

CTC Technology:

CP PLUS Trusted Core Technology is a multi-layered security architecture that brings together the best of cyber security practices and technological intelligence.

It is not just an enhancement; it is a complete redefinition of how surveillance should function in today’s digital landscape – more intelligent, more secure, and more reliable than ever before.

True Day/Night (ICR)

When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens. It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens.

Regions of Interest

Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas.

Smart IR

Smart IR technology can display image in the environment of low illuminance or completely dark environment. According to the distance of the targets, the camera adjusts IR LEDs intensity automatically to display the details of the moving target.

Interstream

This camera has been designed with the latest and most efficient innovation among the standard video compression designs. Smart encoding algorithms developed by CP PLUS help in saving up to 70% more bandwidth than H.265 along with making it more beneficial for minimizing bandwidth and storage costs. It enhances video coding efficiency while providing high resolution and the rate of frame in the video using Intelligent Region Perception to detect motion in each frame.

About CP PLUS

The brand that is on its way to lead the world when it comes to the security and surveillance industry, CP PLUS, keeps bombarding the market with the most reliable range of products that have been designed carefully and methodically to automate the whole surveillance and security process, no matter how big your premises are.

It was the initiative to help the public in the area where they are the most vulnerable and to empower the sense of safety in our hearts that had conceptualized CP PLUS. And embarking on its mission to make the world a safer and more secure place has taken the brand’s journey to unprecedented levels even when compared to international competitors.

Image Sensor1/2.8" 4MP PS CMOS Image Sensor (0.9071 centimeters)
Minimum Illumination0.001 [email protected] (Color, 30 IRE), 0.0001 [email protected] (B/W, 30 IRE), 0 lux (IR on)
Effective Pixels2688 (H) × 1520 (V)
Angle AdjustmentPan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
White BalanceAuto, Natural, Street lamp, Outdoor, Manual, Regional custom
RAM128 MB
ROM128 MB
Close Focus Distance3.2 m
Gain Control(AGC)Auto, Manual
Lens TypeFixed-focal
Max. ApertureF1.4
Lens MountM12
DORI Distance124.0 m (Detect), 49.6 m (Observe), 24.8 m (Recognize), 12.4 m (Identify)
Video FormatPAL/NTSC
OSDCamera title, Date & Time
Lens6mm Fixed Lens
Angle of viewH: 49°, V: 26°, D: 57°
S/N Ratio>58dB
Video CompressionInstastream, H.265, H.264, H.264H, H.264B, MJPEG (only supported by the sub stream)
Back Light CompensationBLC/ HLC/ WDR (120dB)
Day/NightAuto(ICR)/Color/B/W
IR Number4 IR LED
IRIR Range of 60 Mtr.
Smart IRSupport
Resolution4MP (2688 x 1520)/ (2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
stream CapabilityTriple stream
Frame RateMain stream: 4MP (2688 × 1520)@1-25/30fps, 4MP (2560 × 1440)@1-25/30 Sub stream 1: 720P( 1280 × 720) D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps, (352 × 288) @1-25fps Sub stream 2: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps
Motion DetectionOFF/ON (4 areas, rectangular)
Privacy Mask4 areas
ROISupport (4 Areas)
Audio CompressionG.711a, G.711Mu, PCM, G.726, AAC
Mirror FunctionSupport
AudioBuilt-In Mic
Bit RateH.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps
Bit Rate ControlCBR/VBR
Human body DetectionSupport the classification and accurate detection of human
ProtocolSFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
Noise Reduction3D NR
EthernetRJ-45 (10/100 Base-T)
SDK and APISupport
Alarm EventNetwork disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, IMD (Intelligent motion detection), Security exception
Cyber SecurityAES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot
BrowserIE, Chrome, Firefox
IR ControlAuto, Manual
Image Rotation4MP only support 0°/180° 1080P & lower will support 0°/90°180°/270°
Smart searchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Iris ControlFixed
User/Host6 (Total bandwidth: 36 M)
Weatherproof StandardIP67
CertificatesISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report
Power Source12 VDC/PoE (802.3af)
Power ConsumptionBasic: 2 W (12 VDC); 2.9 W (PoE) Max. (H.265 + intelligence on+ WDR + illuminator intensity): 5.3W (12 VDC), 6.8 W (PoE)
Operating Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity≤95%
Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity≤95%
CasingMetal + Plastic
Dimension197.9 mm × 80.2 mm × 76.2 mm
Weight310 g
Weight1 kg
BrandCP PLUS
colorWhite
Warranty1 Year
Lens3.6mm fixed Lens
Lens TypeFixed-focal
Supported4 mp
Camera TypesBULLET
IRIR Range of 60 Mtr
UsageOutdoor
Power Consumtion2 W
Audio ChannelBuilt-in Mic
Resolution1920 × 1080, 1.3MP, 2688 x 1520, 1280 × 720, 1280 × 960, 2560 × 1440, 704 × 576, D1, 2304 × 1296, 720P, 704 × 480, 3MP, VGA, 4MP, 640 × 480, 2MP, CIF, 352 × 288, 352 × 240
ConnectorRJ45, Wired
CompatibalityNVR
RAM Size128 MB
EAN Code8350260035778
