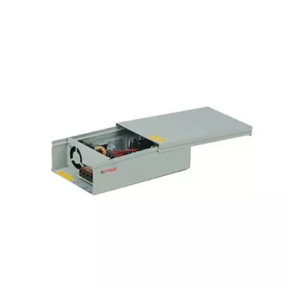

CP PLUS CP-DPS-MD200P-12D Power Supply Adapter for CCTV Systems
RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.
Original price was: ₹1,899.00.₹1,139.00Current price is: ₹1,139.00. (Inclusive of GST)
- Wide range of Input voltage 190~250V AC
- Add more cameras with higher power budget 12V, 20A
- Built-in EMI filter to nullify interference
- Voltage regulator switch for voltage adjustment
- Protections: Overload / Over Voltage / Short Circuit
- Metal Housing for uniform/quick heat dissipation
In stock
CP PLUS CP-DPS-MD200P-12D Power Supply Adapter for CCTV Systems
FEUTURE
About CP PLUS
The brand that is on its way to lead the world when it comes to the security and surveillance industry, CP PLUS, keeps bombarding the market with the most reliable range of products that have been designed carefully and methodically to automate the whole surveillance and security process, no matter how big your premises are.
It was the initiative to help the public in the area where they are the most vulnerable and to empower the sense of safety in our hearts that had conceptualized CP PLUS. And embarking on its mission to make the world a safer and more secure place has taken the brand’s journey to unprecedented levels even when compared to international competitors.
| Input voltage | 190~250V AC |
| Output voltage | 12V DC |
| Current Range | 0~20A |
| Rated Power | 240W |
| Ripple & Noise (max.) | 100mVp-p |
| Voltage Adj. Range | 11.4~13.2V |
| Line Regulation | ±1.0% |
| Voltage Tolerance | ±2.0% |
| Setup Rise time | 600ms, 30ms at full load |
| Hold Up Time (Typ.) | 13ms at full load |
| Load Regulation | ±5.0% |
| Temperature coefficient | ±0.03%/°C (0~50°C) |
| Frequency Range | 47~63HZ |
| Efficiency (Typ.) | 84% |
| AC Current (Typ.) | 5A/115VAC 3A/230VAC |
| Inrush Current (Typ.) | 20A/115VAC 40A/230VAC |
| Leakage Current | <2mA / 240VAC |
| Over Load | 110~200% rated output power, Protection type: Shut down O/P, re-power |
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH |
| Working Humidity | 20~90% RH Non-condensing |
| Vibration | 10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X, Y, Z axes |
| Dimension | 196(L) x 114(W) x 55mm(H) |
| Store temperature | -20~+85°C, 10~95%RH |
| Working temperature | -20~+40°C |
| Withstand Voltage | I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG:0.5KVAC |
| Weight | 1 kg |
|---|---|
| Brand | CP PLUS |
| Compatibality | PC |
| Wattage | 240 WATTS |
| Warranty | 1 Year |
