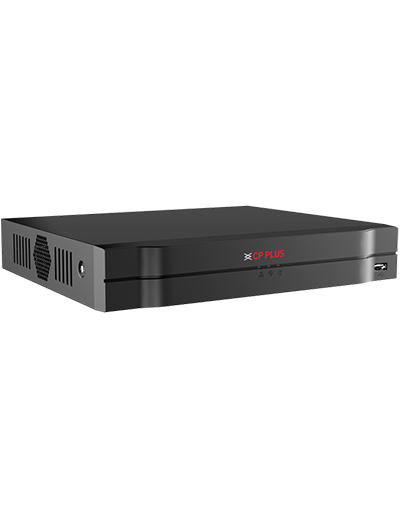

CP PLUS 16 Channel HD DVR with HDMI Output & Remote Mobile Viewing (CP-UVR-1601E1)

RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.

Original price was: ₹9,899.00.Current price is: ₹6,219.00. (Inclusive of GST)

  • Auto Adaptive HDCVI/AHD/TVI/CVBS/IP signals
  • Max 18 channels IP camera inputs, each channel up to 6MP
  • Max 64Mbps Incoming Bandwidth
  • Instastream/H.265 dual-stream Video Compression
  • Support 1 SATA HDD up to 16TB, 2 USB Ports
  • Up to 8 channels video stream (analog channel) SMD Plus
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro Lite



133 People watching this product now!

In stock

SKU: CP-UVR-1601E1

CP PLUS 16 Channel HD DVR with HDMI Output & Remote Mobile Viewing (CP-UVR-1601E1)

System Overview

The newly developed Series All-in-one by CP PLUS
has brought a huge change to the surveillance
industry with an HD video recorder that is made to
be compatible with multiple access technology
which adds to the effectiveness of the existing
security solution by upgrading it. This Series All-inone makes it easier for the end-user by reducing the
system cost and simplifying the installation and use.

The greater quality and performance provided by the
Series All-in-one at such a pocket-friendly price make it
ideal for use in a wide range of applications, such as
retail stores, home protection, roads, and traffic
signals, among others.

Signal auto-adapt

This DVR recognizes the signal type (CVI, TVI, AHD, CVBI) and
automatically adapts without requiring any manual intervention. This has provided much ease to the user since signal
compatibility was always a towering concern.

Addnl. IP cameras support

In some installations, customers have specific features and
functions that are available in IP cameras only, such as two-way
communication, edge storage, alarm I/O, etc. CP PLUS DVRs
provide additional IP camera support to provide flexibility so
that the desired solution features can be made accessible.

Secured Password Policy (SPP)

Amid rising security challenges such as hacking, phishing, etc.,
CP PLUS has framed strict policies to increase the security of
surveillance systems, in which it makes it mandatory to change
the default password to one that is alphanumeric.

Multi-signal Support

CP PLUS DVRs are equipped with UNI+ technology which
supports all HD and analog video formats. This helps the user
upgrade their systems without requiring major overhauls.

gCMOB/ iCMOB

Designed to allow users to access and control live streaming
from CP PLUS IP Cameras, DVRs/ NVRs and Video Door
Phones, the CP PLUS gCMOB/ iCMOB application offers a host
of features such as Easy GUI, up to 16 live viewing split-ups;
Insta On cloud support; Playback; digital zoom ins; two-way
talk, and more.

KVMS Pro Lite

The KVMS Pro Lite is a hybrid security management software
that allows the management of various surveillance devices
such as cameras, DVRs/ NVRs, encoders/ decoders, etc. It is
re-leased with the surveillance hardware and exclusively supports CP PLUS devices.

About CP PLUS

The brand that is on its way to lead the world when it comes to the security and surveillance industry, CP PLUS, keeps
bombarding the market with the most reliable range of products that have been designed carefully and methodically
to automate the whole surveillance and security process, no matter how big your premises are.
It was the initiative to help the public in the area where they are the most vulnerable and to empower the sense of safety
in our hearts that had conceptualized CP PLUS. And embarking on its mission to make the world a safer and more secure
place has taken the brand’s journey to unprecedented levels even when compared to international competitors.

ProcessorIndustrial-grade processor
Operating SystemEmbedded LINUX
IP Camera InputUp to 18 channels of IPC access 2 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP channels are added beyond the existing channels, the AI Function (SMD) will be disabled
Two-way TalkSupport (share the same audio input with the first channel)
User InterfaceWeb; GUI
SMD Plus by DVR8-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change

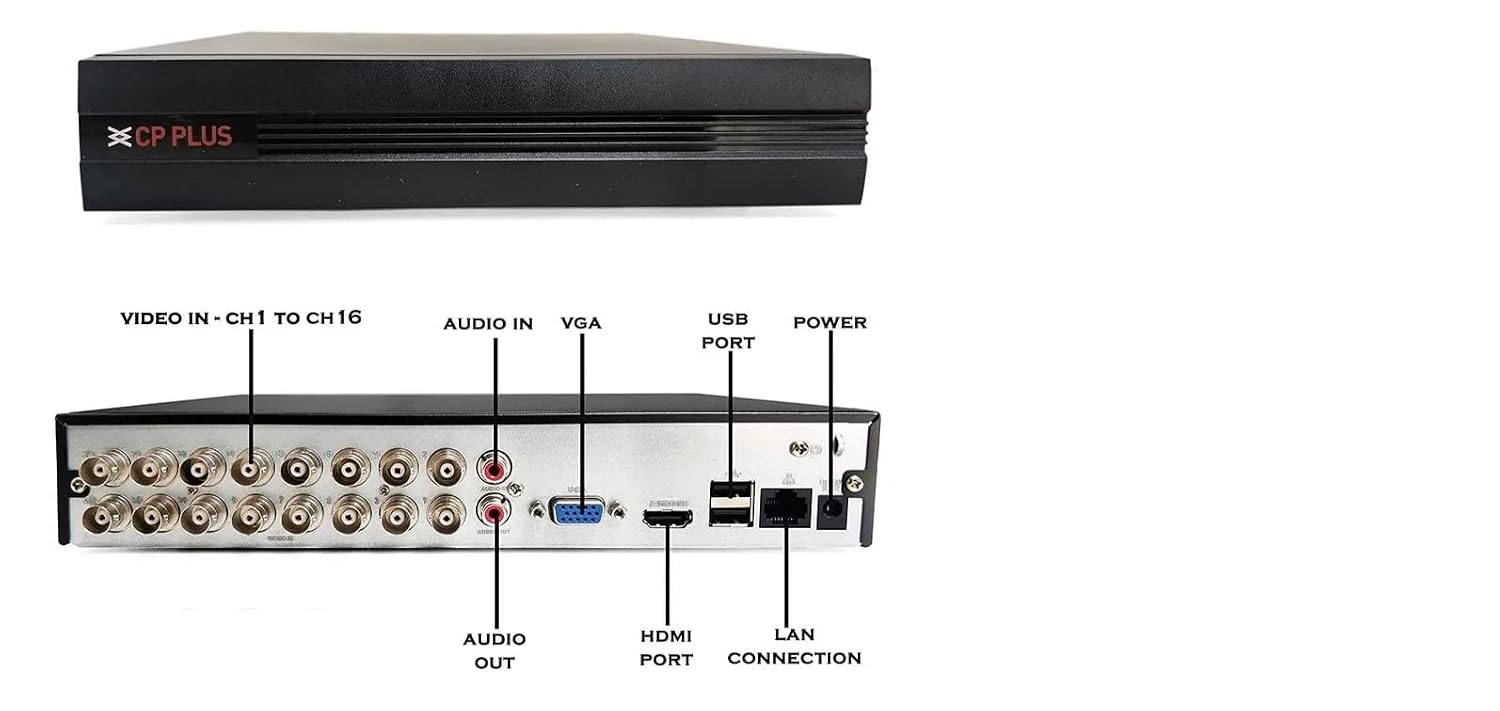

Video Output1 HDMI, 1 VGA, HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Video Input16 channel, BNC
Encode StrategyAI Instastream/Instastream
Video CompressionH.265+/H.264+/H.264
Camera Input1. CVI: 1080p@ 25/30 fps, 720p@ 25/30 fps 2. TVI: 1080p@ 25/30 fps, 720p@ 25/30 fps 3. AHD: 1080p@ 25/30 fps, 720p@ 25/30 fps 4. CVBS: PAL/NTSC
Video Display Split1/4/8/9/16
Encoding CapacityMain Stream: the 1st channel 1080N/720p (1 fps–25/30 fps), others 1080N/720p (1 fps–15 fps); 960H/D1/CIF(1 fps–25/30 fps) Sub stream: CIF (1 fps–7 fps)
Bit Rate32 kbps–6144 kbps
Audio Input1 channel RCA 16-channel BNC (Coaxial Audio)
Audio CompressionG.711A, G.711U, PCM
General AlarmMotion detection, video loss, tampering
Smart PhoneiPhone, iPad, Android Phone
Hard Disk1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature
Audio Sample Rate8KHz, 16 bit Per Channel
Playback1/4/9 Ch.
Audio Bit Rate64Kbps Per Channel
Playback ModeInstant playback, general playback, event playback, tag playback
Backup ModeUSB Device/Network
Interface Ports2 USB Ports (2.0)
Ethernet1 (10/1000 Mbps Ethernet port, RJ-45)
ProtocolsHTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P, ONVIF 21.06; CGI Conformant
Power SupplyDC12V/1.5A
Power Consumption<10W(without HDD)
Working Temp-10°C ~ +55°C (+14°F ~ +113°F), 0 ~ 90% RH
Dimension260.0 mm × 231.4 mm × 47.6 mm
Weight1.42 kg
Weight1 kg
BrandCP PLUS
Processor ModelIndustrial-grade processor
Storage Capacity16 TB
Warranty1 Year
colorBlack
Power Consumtion<10W
ConnectorBNC, HDMI
CompatibalityiPad, Android, iPhone
