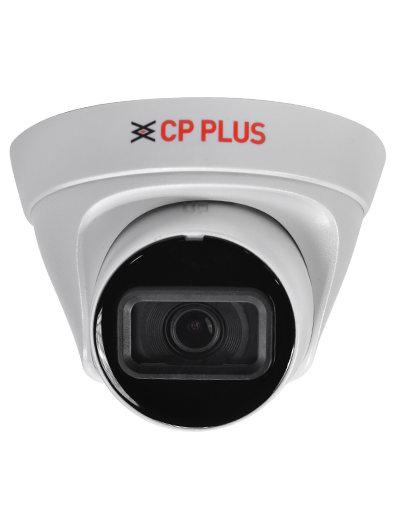

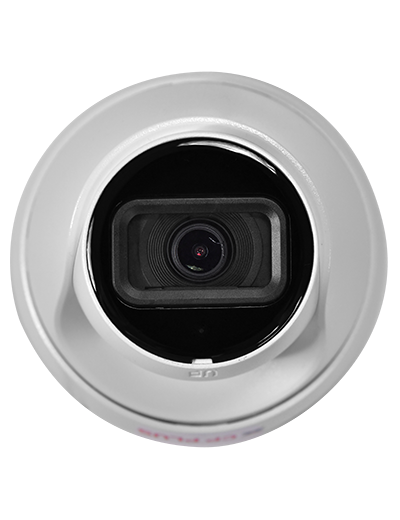

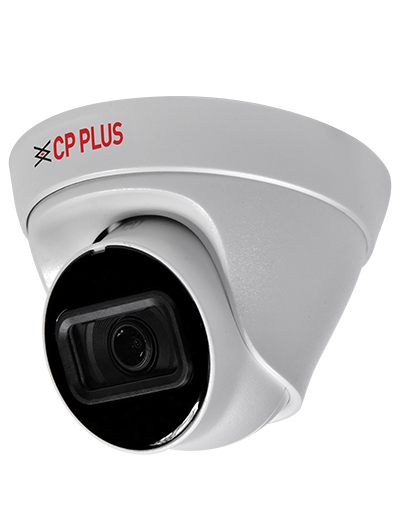

CP PLUS 4MP Full HD IR Dome CCTV Camera with Dual Light, 3.6mm Lens & Color Night Vision – CP-UNC-DA41L3C-D-Q-0360
RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.
₹5,899.00 Original price was: ₹5,899.00.₹3,639.00Current price is: ₹3,639.00. (Inclusive of GST)
- 1/2.9” 4MP PS CMOS Image Sensor (0.8758 centimeters)
- Max. 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30
- Instastream, H.265, H.264, H.264H, H.264B, MJPEG
- Support Triple stream
- WDR (120dB), Day/Night(ICR), 3D NR, AWB, AGC, BLC, HLC, Digital watermarking
- 3.6mm Lens (2.8mm Optional)
- Support Built-in Mic
- IR Range of 30 Mtr., IP67, PoE
In stock
System Overview
With features of simple installation, easy operation,
and high performance-cost ratio, This Series camera is
applicable to small and medium-sized scenes, such as
homes/residences, small-sized retail stores, and other
small and medium-sized enterprises.

CTC Technology:
CP PLUS Trusted Core Technology is a multi-layered security
architecture that brings together the best of cyber security
practices and technological intelligence. It is not just an enhancement; it is a complete redefinition of how surveillance
should function in today’s digital landscape – more intelligent,
more secure, and more reliable than ever before.

True Day/Night (ICR)
When the scene is too dark, the image is captured by
illuminating an infrared light through the camera onto
the scene that greatly helps with making the scene visible for the lens. It delivers color images during the day
and automatically switches to the monochrome feature
as the scene darkens.
Regions of Interest
Regions of Interest (ROI) is a user defined feature that
allows the operator to monitor specific areas of a scene
while still maintaining overall situational awareness of
less important areas.
Smart IR
Smart IR technology can display image in the environment of
low illuminance or completely dark environment. According
to the distance of the targets, the camera adjusts IR LEDs
intensity automatically to display the details of the moving
target.

Interstream
This camera has been designed with the latest and most efficient innovation among the standard video compression designs. Smart encoding algorithms developed by CP PLUS help
in saving up to 70% more bandwidth than H.265 along with
making it more beneficial for minimizing bandwidth and storage costs. It enhances video coding efficiency while providing
high resolution and the rate of frame in the video using Intelligent Region Perception to detect motion in each frame.
About CP PLUS
The brand that is on its way to lead the world when it comes to the security and surveillance industry, CP PLUS, keeps
bombarding the market with the most reliable range of products that have been designed carefully and methodically
to automate the whole surveillance and security process, no matter how big your premises are.
It was the initiative to help the public in the area where they are the most vulnerable and to empower the sense of safety
in our hearts that had conceptualized CP PLUS. And embarking on its mission to make the world a safer and more secure
place has taken the brand’s journey to unprecedented levels even when compared to international competitors.

| Image Sensor | 1/2.9” 4MP PS CMOS Image Sensor (0.8758 centimeters) |
| Effective Pixels | 2688 (H) × 1520 (V) |
| Minimum Illumination | 0.03 [email protected] (Color, 30 IRE), 0.003 [email protected] (B/W, 30 IRE), 0 lux (IR on) |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
| Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| White Balance | Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
| RAM | 128 MB |
| ROM | 128 MB |
| DORI Distance | 3.6mm: 85.4 m (Detect), 34.2 m (Observe), 17.1 m (Recognize), 8.5 m (Identify) 2.8mm: 64.0 m (Detect), 25.6 m (Observe), 12.8 m (Recognize), 6.4 m (Identify) |
| Gain Control (AGC) | Auto, Manual |
| Lens Type | Fixed-focal |
| Max. Aperture | F2.0 |
| Lens Mount | M12 |
| Close Focus Distance | 3.6 mm: 1.7 m; 2.8 mm: 1.1 m |
| Lens | 3.6mm (2.8mm Optional) |
| Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG (only supported by the sub stream) |
| S/N Ratio | >56dB |
| Angle of view | 3.6 mm: H: 78°; V: 40°; D: 93° 2.8 mm: H: 94°; V: 51°; D: 110° |
| Back Light Compensation | BLC/ HLC/ WDR(120dB) |
| IR | IR Range of 30 Mtr. |
| Smart IR | Support |
| IR Number | 1 IR LED |
| Resolution | 4MP (2688 x 1520)/ (2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576 / 704 × 480), VGA (640 × 480), CIF (352 × 288 / 352 × 240) |
| Mirror Function | Support |
| Iris Control | Fixed |
| Audio | Built-in Mic |
| Day/Night | Auto(ICR)/Color/B/W |
| IR Control | Auto, Manual |
| Frame Rate | Main stream: 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30 Sub stream 1: 720p/D1/VAG/CIF@25/30Fps Sub stream 2: D1/VGA/CIF/@25/30fps |
| Stream Capability | Triple stream |
| Smart search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Video Format | PAL/NTSC |
| Privacy Mask | 4 areas |
| ROI | Support (4 Areas) |
| OSD | Camera title, Date & Time |
| Audio Compression | G.711a, G.711Mu, PCM, G.726, AAC |
| Bit Rate | H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps |
| Bit Rate Control | CBR/VBR |
| Human body Detection | Support the classification and accurate detection of human |
| Protocol | SFTP, IPv6, IPv4, DNS, RTCP, NTP, RTP, RTMP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
| SDK and API | Support |
| Ethernet | RJ-45 (10/100 Base-T) |
| Alarm Event | Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, IMD (Intelligent motion detection), Security exception |
| Cyber Security | AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot |
| Image Rotation | 4MP only support 0°/180° 2MP & lower will support 0°/90°180°/270° |
| Certificates | ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report |
| Power Source | 12 VDC/ PoE (802.3af) |
| Power Consumption | Basic: 1.5 W (12 VDC), 1.9 W (PoE); Max. (H.265 + intelligence on + WDR+ IR intensity): 3.5 W (12 VDC), 4.3 W (PoE) |
| User/Host | 6 (Total bandwidth: 36 M) |
| Browser | IE, Chrome, Firefox |
| Weatherproof Standard | IP67 |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95%(RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95%(RH), non-condensing |
| Dimensions | 85.5 mm × 109 mm |
| Casing | Metal + Plastic |
| Weight | 250g |
| Weight | 1 kg |
|---|---|
| Brand | CP PLUS |
| color | White |
| Warranty | 1 Year |
| Power Consumtion | 1.5 W |
| Audio Channel | Built-in Mic |
| Resolution | 1920 × 1080, D1, 1280 × 720, 704 × 480, 704 × 576, VGA, 720P, 640 × 480, 3MP, CIF, 4MP, 352 × 288, 2MP, 352 × 240, 2688 x 1520, 2560 × 1440, 1.3MP, 2304 × 1296, 1280 × 960 |
| Connector | RJ45, Wired |
| Compatibality | NVR |
| RAM Size | 128 MB |
