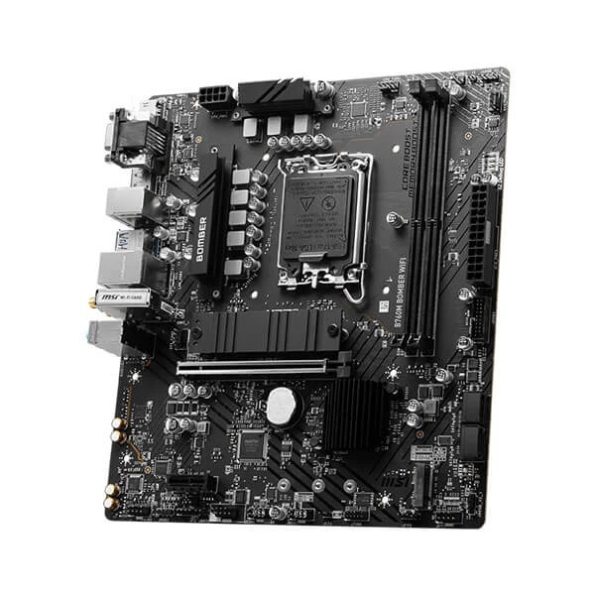

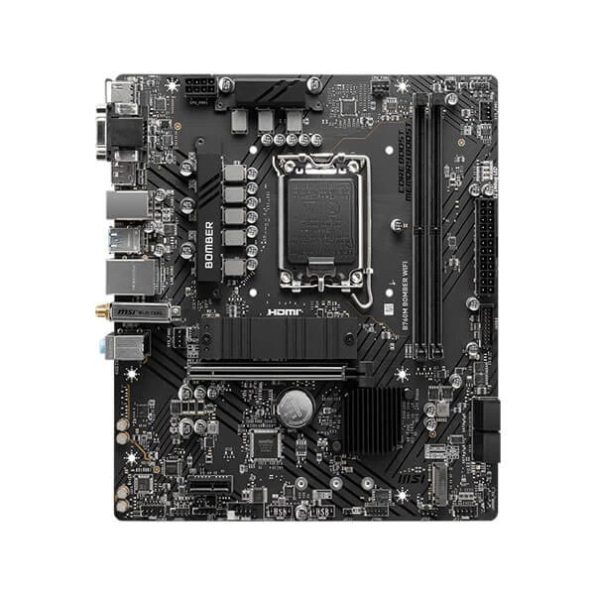

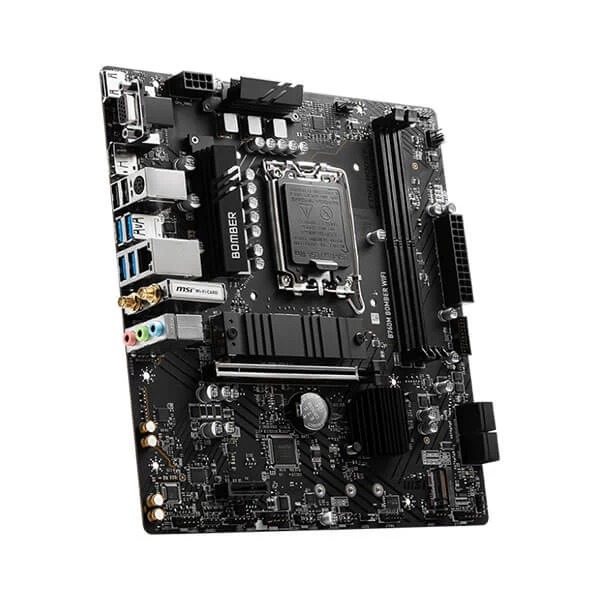

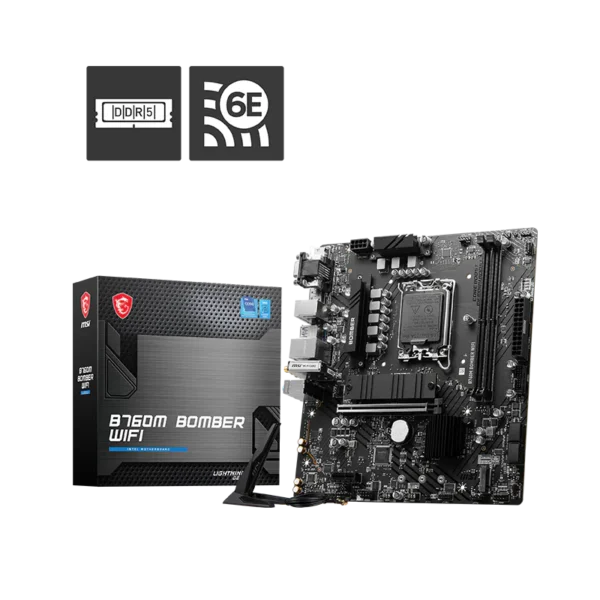

MSI B760M Bomber WIFI Motherboard Supports Intel 12th , 13th & 14th Gen Processors
RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.
Original price was: ₹21,999.00.₹10,339.00Current price is: ₹10,339.00. (Inclusive of GST)
- Supports 12th/13th Gen Intel Core, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5-6400+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
4
People watching this product now!
In stock
MSI B760M Bomber WIFI Motherboard Supports Intel 12th , 13th & 14th Gen Processors
MSI B760M BOMBER DDR5 Intel 13th/12th Gen LGA1700 M-ATX Motherboard
MSI B760M Bomber WIFI motherboard support Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket and Dual Channel DDR5-6400MHz Memory.
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5-6400+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
| Category | Specification |
|---|---|
| Chipset | Intel B760 |
| CPU Support | Supports Intel® Core™ 14th Gen, 13th Gen, and 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA 1700 Socket |
| Memory | 2 x DDR5 DIMM Slots, Up to 128GB Maximum Capacity Supports DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC) 1DPC 1R: Up to 6400+ MHz 1DPC 2R: Up to 5600+ MHz Supports Intel® XMP 3.0 OC Dual-Controller Dual-Channel Mode Supports Non-ECC, Unbuffered Memory |
| Integrated Graphics Outputs | 1 x HDMI™ 2.1 with HDR (Up to 4K @ 60Hz) 1 x DisplayPort 1.4 (Up to 4K @ 60Hz) 1 x VGA (D-Sub) (Up to 2048×1536 @ 50Hz, 2048×1280 @ 60Hz, 1920×1200 @ 60Hz) *Requires a processor with integrated graphics. |
| Expansion Slots | 1 x PCIe 4.0 x16 Slot (From CPU) 1 x PCIe 4.0 x1 Slot (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 2 x M.2 Slots • M.2_1: PCIe 4.0 x4 (From CPU), Supports 2242/2260/2280 SSDs • M.2_2: PCIe 4.0 x4 / SATA (From Chipset), Supports 2242/2260/2280 SSDs 4 x SATA 6Gb/s Ports *One SATA port may be disabled when using a SATA M.2 SSD in M.2_2. |
| RAID Support | RAID 0, RAID 1, RAID 5, RAID 10 (SATA Storage Devices) |
| USB Ports | Rear I/O: • 2 x USB 2.0 • 4 x USB 3.2 Gen 1 (5Gbps) Type-A Front I/O: |
| LAN | Realtek® RTL8125B 2.5GbE LAN |
| Wireless Connectivity | Intel® Wi-Fi 6E (Pre-installed M.2 Key-E Module) Supports 2.4GHz / 5GHz / 6GHz Bands MU-MIMO TX/RX, Up to 2.4Gbps IEEE 802.11 a/b/g/n/ac/ax Bluetooth® 5.3 |
| Internal I/O Connectors | 1 x 24-Pin ATX Power Connector 1 x 8-Pin CPU Power Connector 1 x CPU Fan Header 2 x System Fan Headers 2 x Front Panel Headers (JFP) 1 x Chassis Intrusion Header 1 x Front Audio Header 1 x COM Port Header 2 x Addressable RGB Gen2 Headers (JARGB_V2) 1 x RGB LED Header (JRGB) 1 x TPM 2.0 Header 4 x USB 2.0 Ports (via Headers) 2 x USB 3.2 Gen 1 Type-A Ports (via Header) |
| LED Features | 4 x EZ Debug LEDs |

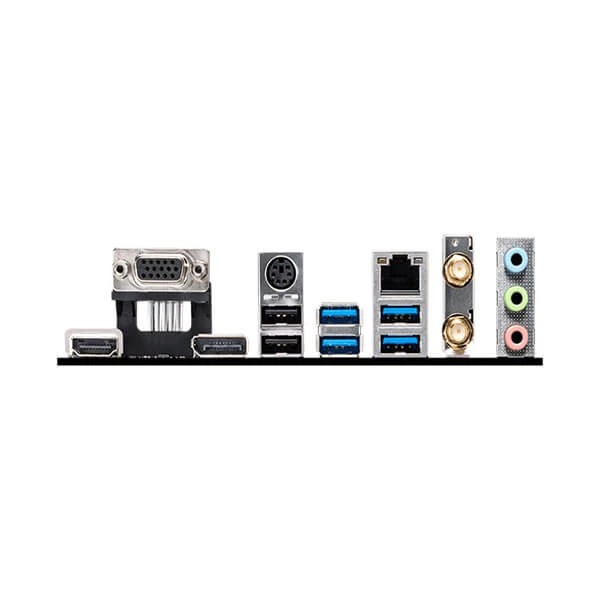

| Rear Panel Ports | HDMI™ VGA DisplayPort PS/2 Keyboard/Mouse Port 2.5G LAN Port Wi-Fi Antenna Connectors Audio Jacks USB 2.0 Ports USB 3.2 Gen 1 Type-A Ports |
| Operating System | Windows® 11 64-bit Windows® 10 64-bit |
| Form Factor | Micro-ATX (mATX) |
| PCB Dimensions | 220mm x 243.84mm |
| Box Contents | Motherboard, Documentation, Wi-Fi Antennas, SATA Cables, I/O Accessories (may vary by region) |
| Weight | 1 kg |
|---|---|
| Brand | MSI |
| Product Type | Gaming |
| Motherboard Size | mATX |
| Socket | LGA 1700 |
| Chipset | B760 |
| RAM Type | DDR5 |
| Platform | Intel |
| Warranty | 3 Years |
| color | Black |
| EAN Code | 8906099622851 |
