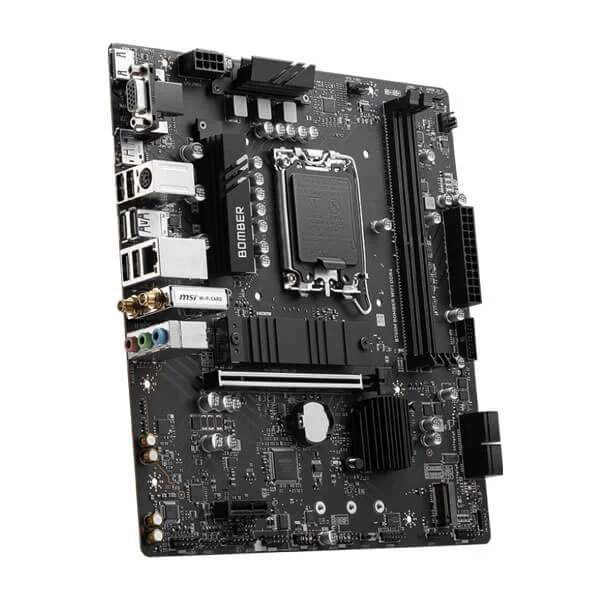

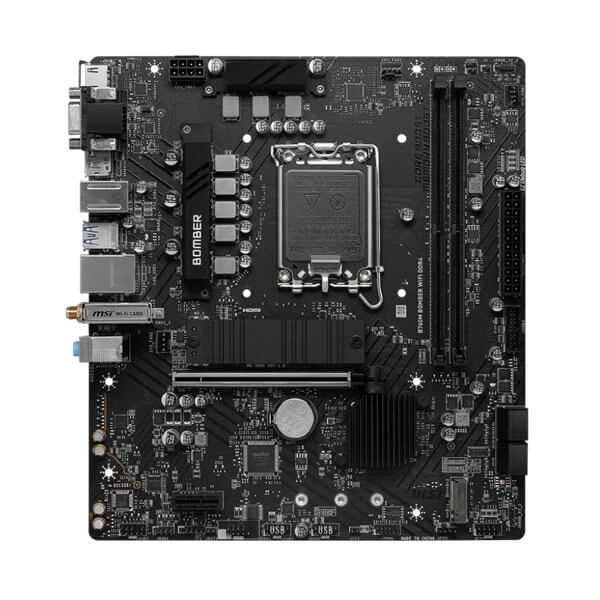

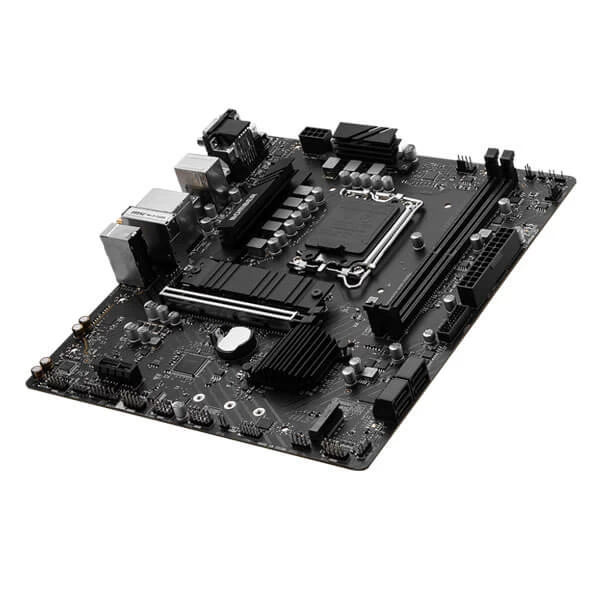

MSI B760M Bomber WIFI DDR4 Motherboard Supports Intel 12th , 13th & 14th Gen Processors
RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.
Original price was: ₹19,999.00.₹11,039.00Current price is: ₹11,039.00. (Inclusive of GST)
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4-4800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
98
People watching this product now!
In stock
MSI B760M Bomber WIFI DDR4 Motherboard Supports Intel 12th , 13th & 14th Gen Processors
MSI B760M Bomber WIFI DDR4 Motherboard Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket. Supports DDR4 Memory, Dual Channel DDR4-4800+MHz (OC)
Features
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4-4800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
| Category | Specification |
|---|---|
| Chipset | Intel® B760 |
| CPU Support | Supports Intel® Core™ 14th Gen, 13th Gen, and 12th Gen Processors Supports Intel® Pentium® Gold and Celeron® Processors Socket: LGA 1700 |
| Memory | 2 x DDR4 DIMM Slots Maximum Capacity: 64GB Memory Speeds: DDR4 4800+(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4200(OC) / 4000(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200(JEDEC) / 2933(JEDEC) / 2666(JEDEC) / 2400(JEDEC) / 2133(JEDEC) 1DPC 1R: Up to 4800+ MHz 1DPC 2R: Up to 4600+ MHz Supports Dual-Channel Mode Supports Non-ECC, Unbuffered Memory Supports Intel® Extreme Memory Profile (XMP) |
| Graphics Outputs | 1 x HDMI™ 2.1 with HDR (Up to 4K @ 60Hz) 1 x DisplayPort 1.4 (Up to 4K @ 60Hz) 1 x VGA (D-Sub) (Up to 2048×1536 @ 50Hz, 2048×1280 @ 60Hz, 1920×1200 @ 60Hz) *Available only with processors featuring integrated graphics. |
| Expansion Slots | 1 x PCIe 4.0 x16 Slot (From CPU) 1 x PCIe 4.0 x1 Slot (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 2 x M.2 Slots • M.2_1: PCIe 4.0 x4 (From CPU), Supports 2242/2260/2280 SSDs • M.2_2: PCIe 4.0 x4 / SATA Mode (From Chipset), Supports 2242/2260/2280 SSDs 4 x SATA 6Gb/s Ports *One SATA port may be disabled when a SATA M.2 SSD is installed in M.2_2. |
| RAID Support | RAID 0, RAID 1, RAID 5, RAID 10 (SATA Storage Devices) |
| USB Ports | Rear Panel: • 2 x USB 2.0 • 4 x USB 3.2 Gen 1 (5Gbps) Type-A Front Panel: |
| LAN | Realtek® RTL8125B 2.5GbE LAN |
| Wireless & Bluetooth | Intel® Wi-Fi 6E (Pre-installed M.2 Key-E Module) Supports 2.4GHz / 5GHz / 6GHz Bands MU-MIMO TX/RX, Up to 2.4Gbps IEEE 802.11 a/b/g/n/ac/ax Bluetooth® 5.3 |
| Internal I/O Connectors | 1 x 24-Pin ATX Power Connector 1 x 8-Pin CPU Power Connector 1 x CPU Fan Header 2 x System Fan Headers 2 x Front Panel Headers (JFP) 1 x Chassis Intrusion Header (JCI) 1 x Front Audio Header (JAUD) 1 x COM Port Header (JCOM) 2 x Addressable RGB Gen2 Headers (JARGB_V2) 1 x RGB LED Header (JRGB) 1 x TPM 2.0 Header 4 x USB 2.0 Ports (via Headers) 2 x USB 3.2 Gen 1 Type-A Ports (via Header) |
| LED Features | 4 x EZ Debug LEDs |

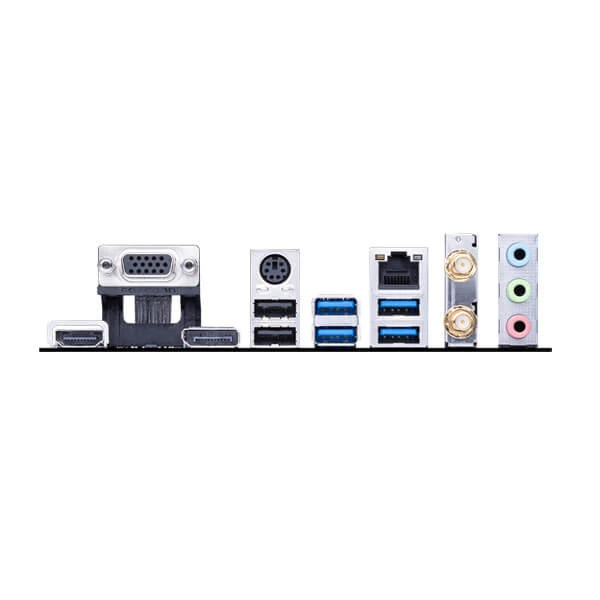

| Rear Panel Ports | HDMI™ VGA DisplayPort PS/2 Keyboard/Mouse Port 2.5G LAN Port Wi-Fi Antenna Connectors Audio Jacks USB 2.0 Ports USB 3.2 Gen 1 (5Gbps) Type-A Ports |
| Operating System | Windows® 11 64-bit Windows® 10 64-bit |
| Form Factor | Micro-ATX (mATX) |
| Dimensions | 220mm x 243.84mm |
| Weight | 1 kg |
|---|---|
| Brand | MSI |
| Product Type | Normal |
| Motherboard Size | mATX |
| Socket | LGA 1700 |
| Chipset | B760 |
| RAM Type | DDR4 |
| Platform | Intel |
| EAN Code | 8906099622851 |
| Warranty | 3 Years |
| color | Black |
| Memory Bus | 64 bit |
