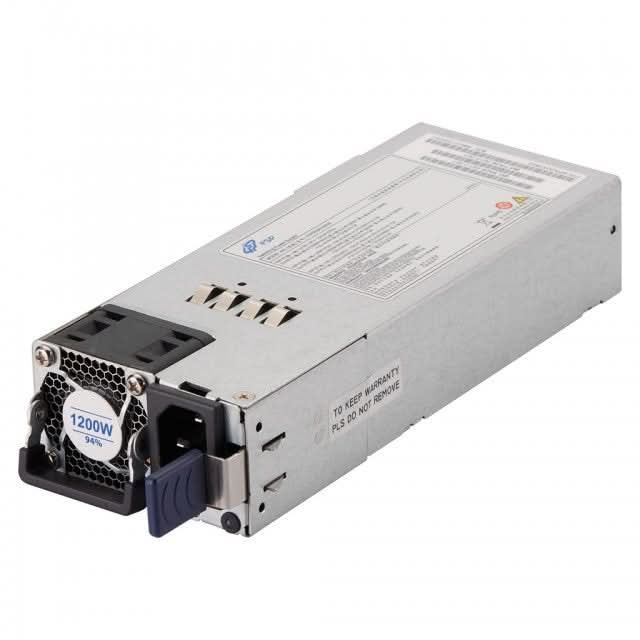

FSP1200-20FM 1200W 80 Plus Platinum CRPS Server Power Supply
RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.
Original price was: ₹29,999.00.₹19,299.00Current price is: ₹19,299.00. (Inclusive of GST)
• Certified CB 62368-1 & CB 60950-1
• Meet 80 Plus Platinum
• Meet CRPS 2.0
• Meet PMBus 1.2
• Design for 5,000 Meter above sea level
• High Reliability
• Low Ripple & Noise
• Over Current Protection
• Over Temperature Protection
• Over Voltage Protection
In stock
FSP1200-20FM 1200W 80 Plus Platinum CRPS Server Power Supply
FSP1200-20FM is a redundant power supply module base on CRPS 2.0 standard. The power supply comes to offer the total power
capacity up to 1200 Watts, and provides PMbus features, which makes it to be able communicate with motherboard. In addition, the
power supply is ideally the best choice for datacenter, workstation, communication or any other automation applications to use. The
product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.
| Specification | Details |
|---|---|
| Model Number | FSP1200-20FM |
| Product Type | CRPS 2.0 Redundant Power Supply Module |
| Maximum Output Power | 1200W |
| Efficiency Certification | 80 Plus Platinum |
| Form Factor | CRPS (Common Redundant Power Supply) |
| PMBus Support | PMBus 1.2 |
| Input Voltage | 90–264VAC |
| Input Frequency | 47–63Hz |
| Input Current | 8A @ 115VAC, 4A @ 230VAC |
| Main Output | +12V DC |
| +12V Output Current (100–127VAC) | 80.5A |
| +12V Output Current (200–240VAC) | 97.0A |
| +12V Standby Output | 3.0A |
| Hold-Up Time | 10ms @ 12V |
| MTBF | 250,000 Hours @ 45°C, 75% Load |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to +80°C |
| Operating Humidity | 5% to 90% RH (Non-Condensing) |
| Storage Humidity | 5% to 95% RH (Non-Condensing) |
| Operating Altitude | Up to 5,000m |
| Dimensions (L × W × H) | 185 × 73.5 × 39 mm |
| Protection Features | OCP, OVP, OTP, SCP |
| Cooling | Integrated High-Speed Fan |
| Applications | Servers, Data Centers, Storage Systems, Workstations, Industrial Controllers |
| Safety Certifications | CB 62368-1, CB 60950-1, CE, FCC, UL, BIS and others |
| Features | Hot-Swap Design, Low Ripple & Noise, High Reliability, Redundant PSU Support |
| Weight | 1 kg |
|---|---|
| Brand | FSP |
| EAN Code | 2000011323219 |
| Product Type | CRPS 2.0 Redundant Power Supply Module |
| Case Form Factor | CRPS |
