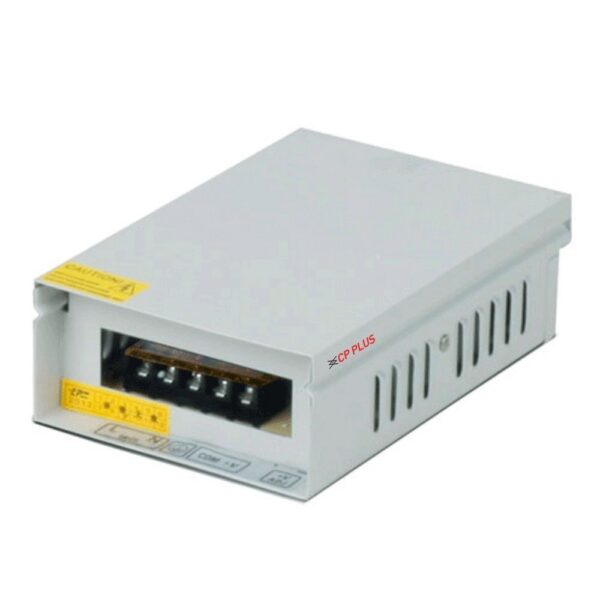

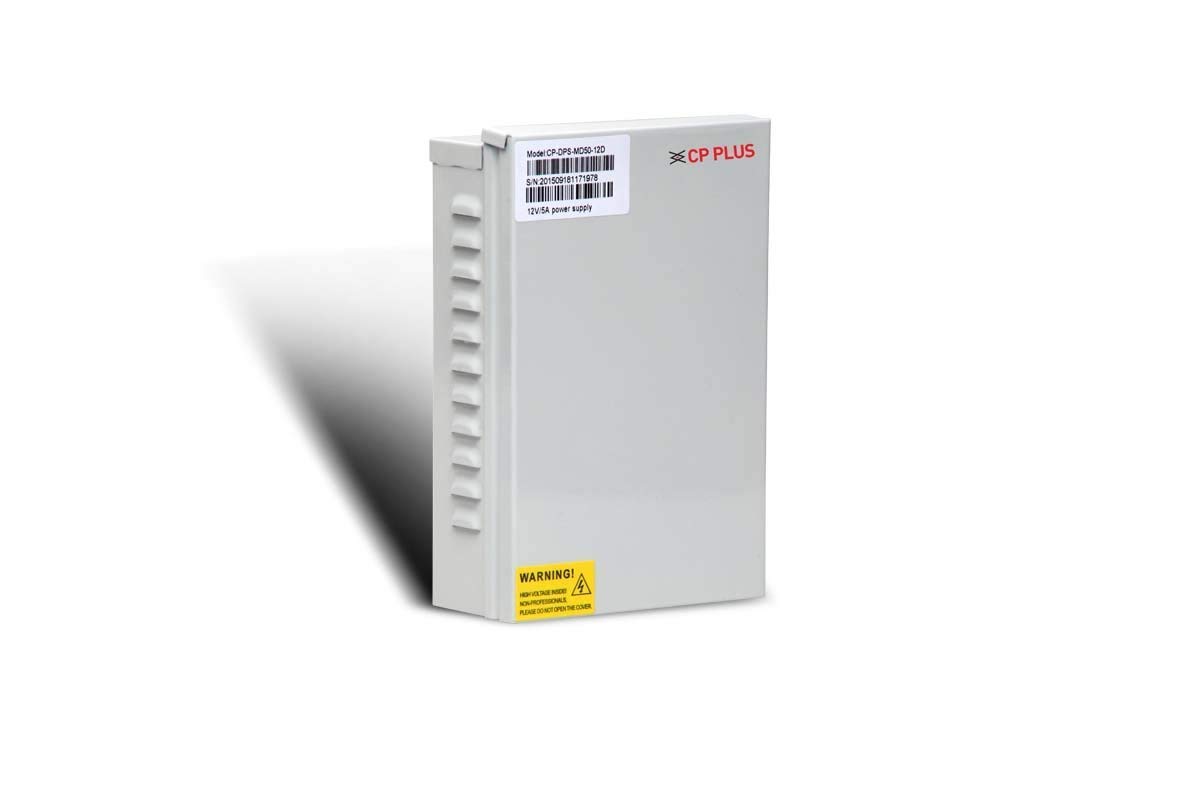

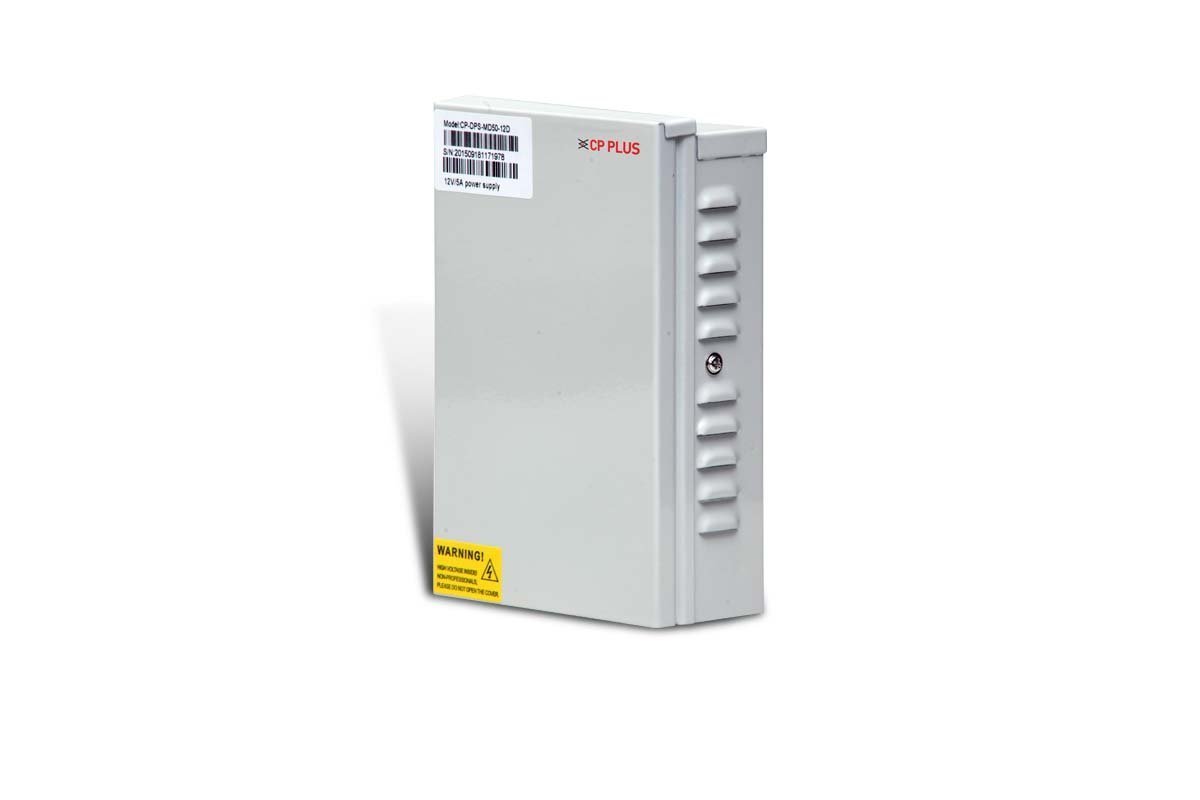

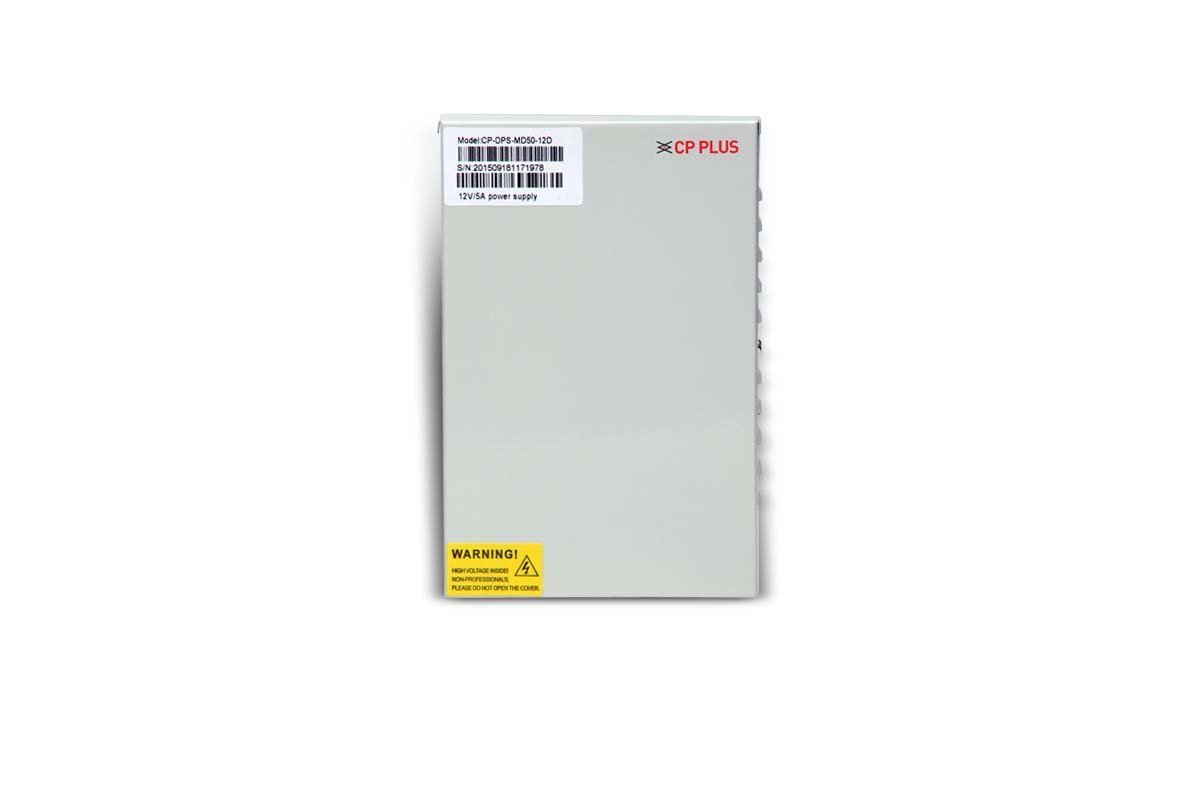

CP PLUS 5AMP CCTV Power Supply Adapter – CP-DPS-MD50-12D

RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.

Original price was: ₹1,009.00.Current price is: ₹489.00. (Inclusive of GST)

  • Wide range of AC input voltage
  • Higher power budget can add more cameras
  • Short circuit, over voltage and over current protection
  • Power on indicator
  • Voltage regulator pot for cable compensation
  • Built-in EMI filter to nullify interference
  • 100% Full load burn-in test
  • Metal housing for uniform & quick heat dissipation
  • Wall mount option along with desktop
  • Screw type block terminals for easy installation
124 People watching this product now!

In stock

SKU: CP-DPS-MD50P-12D

CP PLUS 5AMP CCTV Power Supply Adapter – CP-DPS-MD50-12D

• Wide range of AC input voltage
• Higher power budget can add more cameras
• Short circuit, over voltage and over current protection
• Power on indicator
• Voltage regulator pot for cable compensation
• Built-in EMI filter to nullify interference
• 100% Full load burn-in test
• Metal housing for uniform & quick heat dissipation
• Wall mount option along with desktop
• Screw type block terminals for easy installation

About CP PLUS

The brand that is on its way to lead the world when it comes
to the security and surveillance industry, CP PLUS, keeps
bombarding the market with the most reliable range of
products that have been designed carefully and methodically to automate the whole surveillance and security process,
no matter how big your premises are.
It was the initiative to help the public in the area where they
are the most vulnerable and to empower the sense of safety in
our hearts that had conceptualized CP PLUS. And embarking on
its mission to make the world a safer and more secure place
has taken the brand’s journey to unprecedented levels even
when compared to international competitors.

Input voltage190 ~ 250VAC
Input AC Frequency Range47 ~ 63Hz
Input Current (Typ.)3.0A/230VAC
Power Cord3 Pin (L, N & Earth)
Standby Power Consumption≤3.0W
Inrush Current (Typ.)40A@230VAC
Efficiency (Typ.)80%
Output voltage12V
Output Current5.0A
Output Current range0 ~ 5.0A
Rated Power60W
Ripple & Noise (max.)≤200mV
Line Regulation2%
Load Regulation3%
Power On IndicatorSupport
Cable CompensationSupport, (trimmer pot)
No. of Output PortsSingle port
Over Voltage ProtectionSupport
Over Current ProtectionSupport
Short circuit protectionSupport
Insulation Resistance100MΩ@500VDC
Operating Temperature-10°C~+40°C
Operating Humidity20~90% RH non-condensing
Storage Temperature-20°C~+85°C
Storage humidity10~95% RH
Dimension156mm x 103mm x 47mm
Wall mount optionSupport
Weight1 kg
BrandCP PLUS
Rated Voltage250V
Refresh Rate60Hz
Power Consumtion60W
Dimensions156mm x 103mm x 47mm
