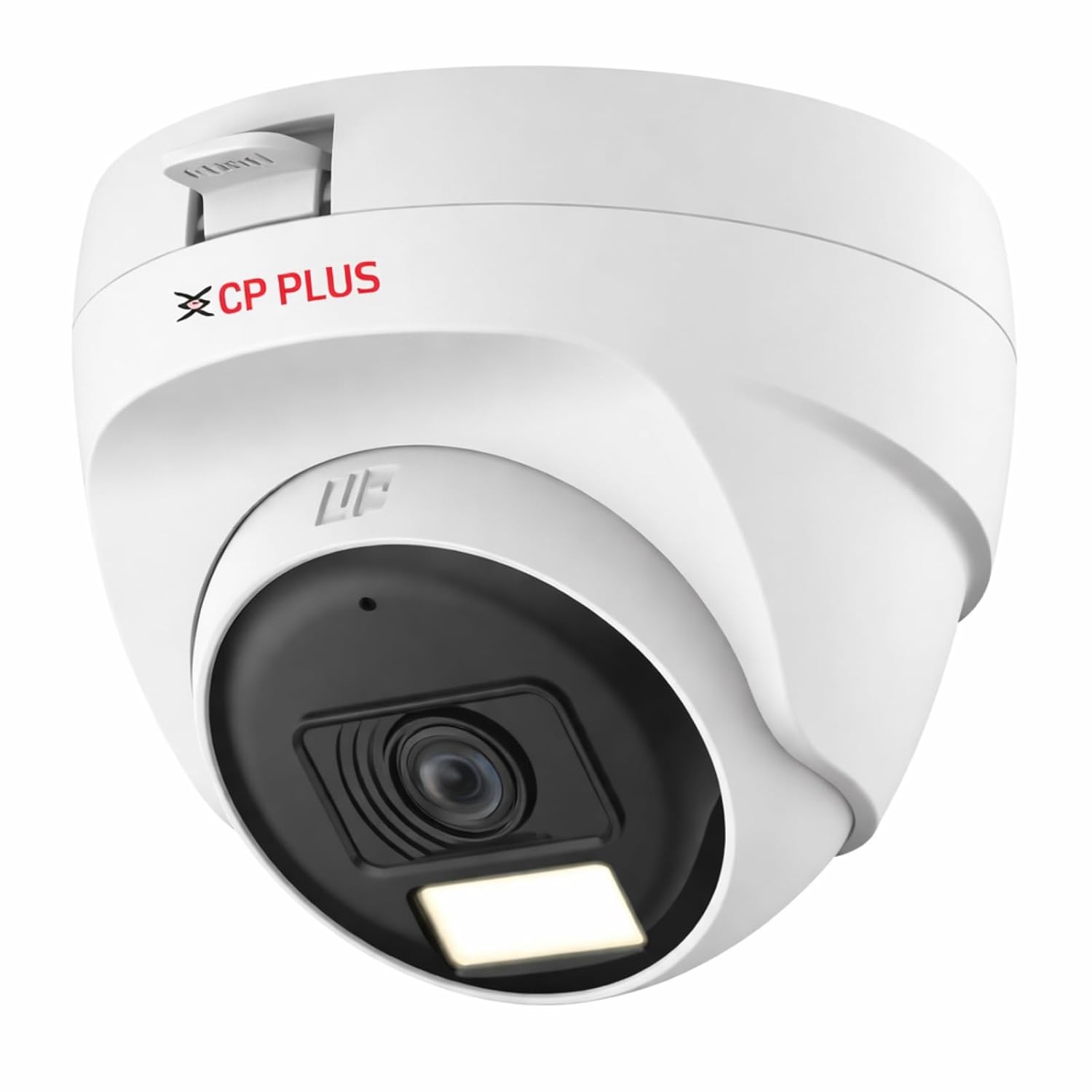

CP PLUS 2.4MP Full HD IR Dome CCTV Camera – Indoor Wired Security Camera (CP-URC-DC24PL3C)
RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.
₹1,250.00 Original price was: ₹1,250.00.₹950.00Current price is: ₹950.00. (Inclusive of GST)
- 2.4 MP PS CMOS Image Sensor
- Max. Outputs 2.4MP (1920 × 1080)@25/30fps
- DWDR, Day/Night (ICR), 2D DNR, BLC, HLC
- 3.6mm Fixed Lens (2.8 mm Optional)
- IR Range of 30 Mtrs., Smart IR
- 4 Signals over 1 Coaxial Cable
- Support Built-in Mic
In stock
System Overview
Analog cameras can be advantageous in more ways
than one – they are economical, especially for large
scale setups, and are simple to install. However, one
of the major downsides of earlier analog cameras was
the image quality, which is critical in the present
times. With subsequent technological upgrades over
the years, HD resolution was introduced in analog
CCTV systems. This served as a major breakthrough as
high quality imagery was only available in IP system
which was comparatively a costlier option.

Another challenge with analog systems was its compatibility constraint. Newer versions of analog cameras
would not pair up with older versions. CP PLUS introduced the revolutionary UNI + technology which supported all analog & HD video formats including CVBS.

True Day/Night (ICR)
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene
that greatly helps with making the scene visible for the lens.
It delivers color images during the day and automatically
switches to the monochrome feature as the scene darkens.

Built-in Mic
The built-in microphone captures high-quality audio, adding an extra layer of security by recording sound along with
video, which is essential for comprehensive surveillance.

About CP PLUS
The brand that is on its way to lead the world when it comes to the security and surveillance industry, CP PLUS, keeps
bombarding the market with the most reliable range of products that have been designed carefully and methodically
to automate the whole surveillance and security process, no matter how big your premises are.
It was the initiative to help the public in the area where they are the most vulnerable and to empower the sense of safety
in our hearts that had conceptualized CP PLUS. And embarking on its mission to make the world a safer and more secure
place has taken the brand’s journey to unprecedented levels even when compared to international competitors.
| Image Sensor | 2.4 MP PS CMOS Image Sensor |
| Minimum Illumination | 0.02 [email protected] (Color, 30 IRE), 0.002 [email protected] (B/W, 30 IRE), 0 lux (IR on) |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Shutter Speed | PAL: 1/25 s–1/100,000 s, NTSC: 1/30 s–1/100,000 |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
| White Balance | Auto, Area white Balance |
| DORI Distance | Lens 3.6 mm: Detect-55.0 m, Observe-22.0 m, Recognize - 11.0 m, Identify-5.5 m Lens 2.8 mm: Detect-44.7 m, Observe-17.9 m, Recognize-8.9 m, Identify-4.5 m |
| Gain Control (AGC) | Auto, Manual |
| Lens Type | Fixed-focal |
| Max. Aperture | F2.0 |
| Lens Mount | M12 |
| Close Focus Distance | 3.6 mm: 0.8 m, 2.8 mm: 0.5 m |
| Lens | 3.6mm (2.8mm optional) |
| Back Light Compensation | BLC/HLC/DWDR |
| Angle of View | 3.6 mm: H: 80°, V: 43°, D: 94°; 2.8 mm: H: 100°, V: 54°, D: 117° |
| S/N Ratio | >56 dB |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Resolution | 2.4MP (1920 × 1080), 960H (960 × 576/ 960 × 480) |
| Frame Rate | CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H |
| Day/Night | Auto(ICR)/Color/B |
| Mirror Function | Support |
| IR Control | Auto, Manual |
| Noise Reduction | 2D DNR |
| IR | IR Range of 30 Mtr., |
| Iris Control | Fixed |
| IR Mode | IR Mode |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| IR Number | IR light |
| Power Source | 12 VDC ± 30% |
| Power Consumption | Max 2.1 W (12 VDC, LED on) |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Dimension | 85.0 mm × 77.1 mm |
| Weight | 0.11kg |
| Weight | 1 kg |
|---|---|
| Brand | CP PLUS |
| Power Consumtion | Max 2.1 W |
| color | White |
| Warranty | 1 Year |
| Connector | Wired, BNC |
| Resolution | 1080P, 960H, 960 × 576, 960 × 480, 2.4MP, 1920 × 1080 |
