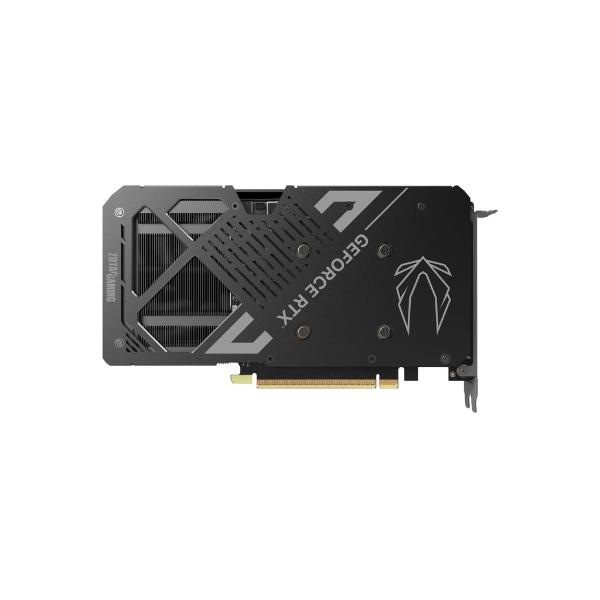

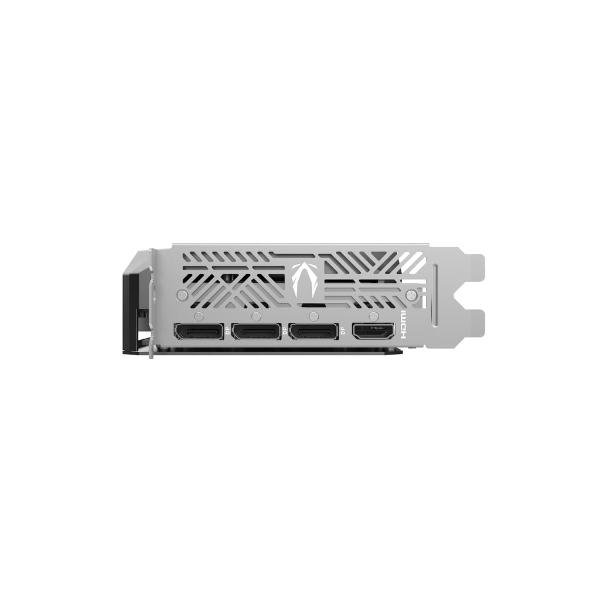

ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge OC
The ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge OC is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 16GB of GDDR7 memory. With a factory OC as well as a solid cooling solution, the Twin Edge OC is ready to take on the latest title releases with smooth framerates and performance.
Feature Highlights:
– Powered by the NVIDIA Blackwell architecture and DLSS 4
– 8-Pin PCIe power connector
– SFF-Ready Graphics Card
– Compact dual-fan form factor
– IceStorm 2.0 Cooling
– BladeLink Fans
– FREEZE Fan Stop
– Metal Backplate
– All-new FireStorm Utility (DOWNLOAD)
SPECIFICATIONS
Category | Details |
---|---|
GPU | NVIDIA GeForce RTX 5060 Ti |
CUDA Cores | 4608 |
Video Memory | 16 GB GDDR7 |
Memory Bus | 128-bit |
Engine Clock | 2602 MHz |
Memory Clock | 28 Gbps |
PCI Express | PCI Express 5.0 x8 |
Display Outputs | 3 × DisplayPort 2.1b with UHBR20 (Up to 4K 480Hz or 8K 165Hz with DSC) 1 × HDMI® 2.1b |
HDCP Support | 2.3 |
Multi Display Capability | Quad Display |
Recommended Power Supply | 600W |
Power Consumption | 180W |
Power Input | 1 × 8-pin |
DirectX | Microsoft DirectX® 12 Ultimate |
OpenGL | 4.6 |
Cooling | IceStorm 2.0 |
Slot Size | 2 |
SLI | No |
Supported OS | Windows 11 / Windows 10 64-bit (v1809 November 2018 or later) |
Card Dimensions | 220.5mm × 120.25mm × 41.6mm (8.7″ × 4.7″ × 1.6″) |
Accessories | User Manual |
Weight | 1 kg |
---|---|
Brand | Zotac |
Product Type | Gaming |
color | Black |
GPU Series | RTX 50 Series |
GPU Chipset | NVIDIA Geforce |
GPU Memory Size | 16GB |
Memory Series | GDDR7 |
Warranty | 3 + 2 Years |
