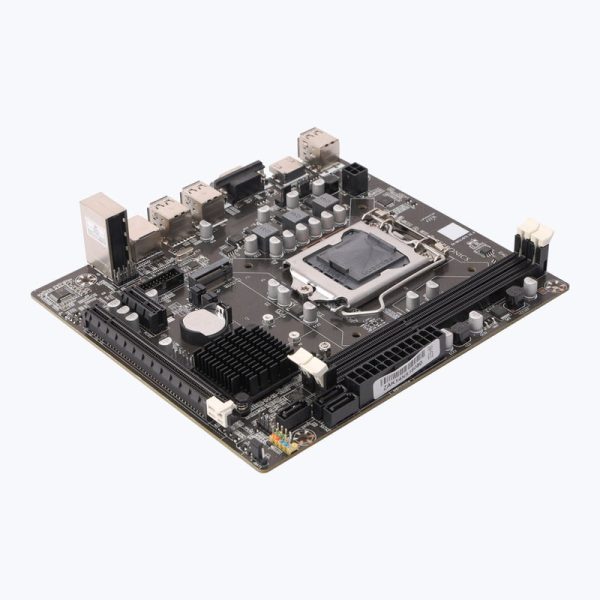

ZEBRONICS ZEB-H61M2 with PCIE M.2 / NVMe Slot (LGA 1155 Socket) Motherboard (Black)

ZEBRONICS ZEB-H61M2 with PCIE M.2 / NVMe Slot (LGA 1155 Socket) Motherboard (Black)

Feature

Socket Type: The motherboard ZEBRONICS features an LGA 1155 socket, which is compatible with Intel Core 2nd and 3rd Gen processors.

Chipset: It utilizes the Intel H61 Express Chipset, providing essential features for stable system performance.

Memory Support:

• The ZEB-H61M2 has two DDR3 dual-channel slots for RAM.
• It supports DDR3 memory speeds of 1066/1333/1600MHz.
• The maximum RAM capacity is 16 GB.

Audio:

• The onboard audio solution uses the Realtek 662 audio codec.
• You’ll find three audio jacks for 6-channel high-definition audio.

LAN (Network):

• The motherboard supports Realtek 8106E 10/100 Mbps Ethernet for network connectivity.

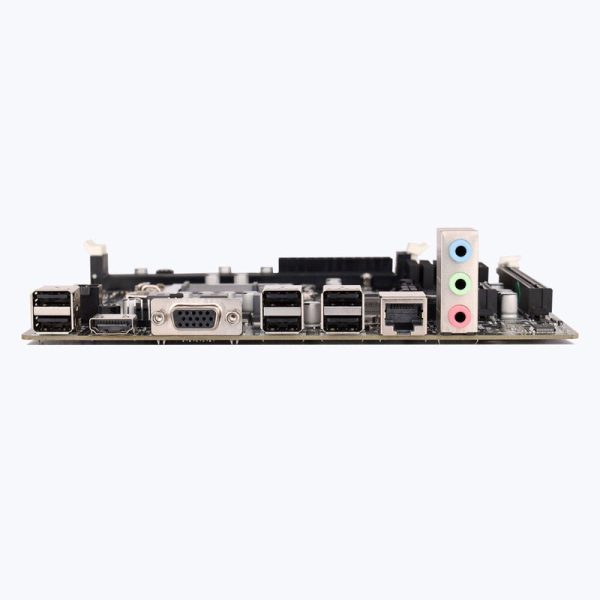

• Back Panel Ports:
• PS/2 Mouse/Keyboard Port: For legacy peripherals.
• VGA Port: For connecting monitors.
• HDMI Port: For high-definition video output.
• Four USB 2.0 Ports: For connecting peripherals.
• LAN Port: For wired network connectivity.
• Three Audio Jacks: For audio output.

On-Board Connectors:

• Front Pane2008475100409l Connector: Used for connecting power/reset buttons and LEDs.
• Speaker Connector: For system audio.
• Front Panel Audio Connector (2 x 5-pin): Connects front panel audio jacks.
• USB 2.0 Ports: Additional internal USB connectors.
• SATA Ports (SATAII): For connecting hard drives and optical drives.
• CPU Fan Connector (4-pin): For CPU cooling fans.
• SYS Fan Connector: For system fans.
• 24-pin ATX Power Connector: Supplies power to the motherboard.
• 4-pin ATX 12V Power Connector: Provides additional power to the CPU.
• 3-pin Clear CMOS Header: Used for resetting BIOS settings.

Expansion Slots:

• PCI Express x16 Slot: For adding a dedicated graphics card.
• PCI Express x1 Slot: For other expansion cards.
