ZEBRONICS 4-Port PoE Switch Full Gigabit for IP Cameras

RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.

Original price was: ₹2,299.00.Current price is: ₹2,089.00. (Inclusive of GST)

4 Self Adaptive PoE Ports
Dual Megabit Uplink Ports
65W Output (Max.)
Upto 30W Per Port
AI Watchdog Function
High Data Rate
Wide Compatibility
Short Circuit Protection
Anti Interference Capability
Lightning & Surge Protection
Dynamic Power Control

6 People watching this product now!

In stock

SKU: ZEB-4PG2UG-1UF

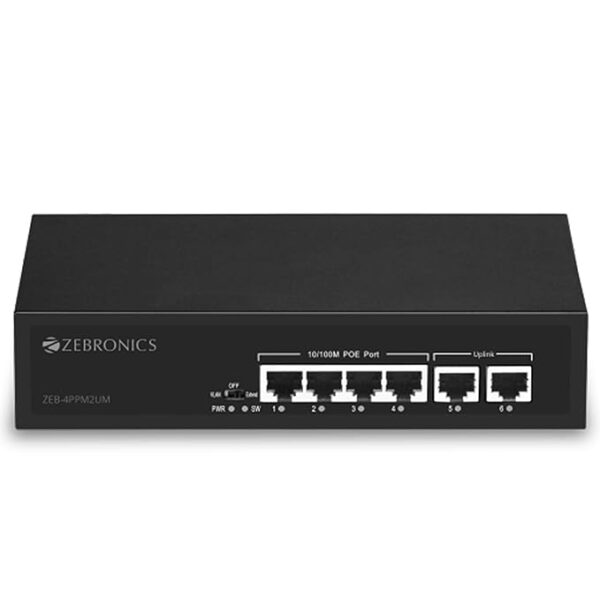

ZEBRONICS 4-Port PoE Switch Full Gigabit for IP Cameras

Featuring 4 PoE-enabled Gigabit Ethernet ports, the switch allows both data and power transmission through a single LAN cable, simplifying installation and reducing additional wiring costs. It is ideal for connecting IP cameras, wireless access points, VoIP phones, network video recorders (NVRs), and other PoE-supported devices.

With full gigabit speed support across all ports, the switch ensures faster data transfer, low latency, and stable connectivity, making it perfect for high-resolution CCTV surveillance systems and bandwidth-intensive network environments. The dedicated uplink connectivity provides efficient communication between network devices and core infrastructure for seamless performance.

Designed with a durable metal housing, the switch offers excellent heat dissipation and long-lasting reliability for continuous 24/7 operation. Its intelligent protection system safeguards connected devices against overload, power fluctuations, and short circuits, helping maintain stable performance even in demanding environments.

The plug-and-play design eliminates complicated configuration, allowing quick and hassle-free setup for installers, businesses, offices, retail stores, educational institutions, and home surveillance systems. Compact yet powerful, the ZEBRONICS 4CH Full Gigabit PoE Switch is a dependable networking solution that delivers speed, stability, and efficient power management in one device.

ZEB-4PPM2UM With Connector Type 4 Port 10/100M PoE + 2 Port 10/100M Ethernet Uplink.
Network Protocols IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3af/at
PoE Parameters PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w) PoE compatibility: IEEE 802.3af/at adaptive PoE port output: DC48V Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)
Network Media 10BASE-T: Cat 3,4,5 UTP(≤100 meter) 10BASE-T: Cat 6 UTP(≤250 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter)
Power Supply Power input: AC110-264V 50/60Hz, Output: 52V1.25A, Power Budget: 65W Performance Specification Bandwidth: 1.2Gbps MAC Address: 1K Packet Buffer Memory: 448K Packet Forwarding Rate: 0.9Mpps Forwarding Mode: Store-And-Forward
Led indicator PWR Power supply indicator(Red) Lighting Powered Un-Light No Power SW DIP indicator(Green) OFF: Normal Vlan: Lighting Extend: Slow flash 1-6 RJ-45 ACT indicator(Green) Lighting Connecting Flashing Data Transmit Un-Light Disconnect
Working Environment Operating Temperature: -20℃ ~ 50℃; Storage Temperature: -40℃ ~ 85℃; Operating Humidity: Max 90%, non-condensing
Working Environment Storage Humidity: Max 95%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters)
Transmission Distance Data transmission distance: 100m, POE distance upto 250meters with 10M via Cat.6 or more MTBF 100,000 hours Port Surge Protection 4KV AI function POE Watchdog

Brand	ZEBRONICS
Product Type	Full Gigabit PoE Switch
Ports	4 PoE Gigabit Ethernet Ports
Uplink Ports	Gigabit Uplink Ports
Port Speed	10/100/1000 Mbps
PoE Support	Yes
Data & Power Transmission	Single Ethernet Cable
Network Standard	IEEE 802.3 / 802.3u / 802.3ab
Compatible Devices	IP Cameras, NVR, Wireless AP, VoIP Phones
Switching Capacity	High-Speed Gigabit Data Transfer
Installation Type	Plug & Play
Body Material	Durable Metal Housing

Weight	1 kg
Brand	Zebronics
Warranty	2 Years
Rated Voltage	48 Volts
Product Type	Full Gigabit PoE Switch
