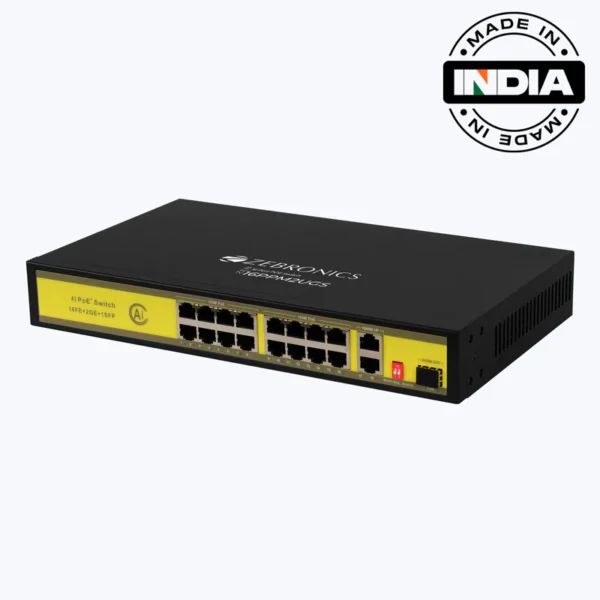

ZEBRONICS 16-Port Full Gigabit PoE Surveillance Switch

RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.

Original price was: ₹6,999.00.Current price is: ₹6,089.00. (Inclusive of GST)

ZEB-16PPM2UG-SG comes with connector type 16 ports 10/100M POE port + 2 ports Gigabit Uplink Ethernet + 1-port Gigabit Uplink SFP port
Network Protocols IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3ab IEEE802.3z IEEE802.3af/at
PoE Parameters PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w) PoE compatibility: IEEE 802.3af/at adaptive PoE port output: DC48V Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)
Network Media 10BASE-T: Cat 6 UTP(≤250 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter)
Optical MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km
Performance Specification Bandwidth: 9.2Gbps (non-blocking) MAC: 2K Packet Buffer Memory: 1M 100M Packet Forwarding Rate: 0.1488Mpps/port, 1000M Packet Forwarding Rate: 1.488Mpps/port
Power Supply Power input: AC110-264V 50/60Hz, Output: 52V5.76A, Power Budget: 300W PoE Feature All ports support MDI/MDIX

LED Indicator PWR Power supply indicator(Red) Lighting：Powered Un-Light：No Power SW DIP indicator(Green) OFF: Normal Vlan: Lighting Extend: Slow flash 1-10 RJ-45 ACT indicator(Green) Lighting：Connecting Flashing：Data Transmit Un-Light：Disconnect
Transmission Distance POE transmission distance:100meters, 250meters(when it’s on 10Mbps rate with Cat.6 or more ) Uplink transmission distance: 100meters( Uplink RJ45 port); Depend on your SFP module( Uplink SFP port)

134 People watching this product now!

In stock

SKU: ZEB-16PG2UG-1UF

ZEBRONICS 16-Port Full Gigabit PoE Surveillance Switch

Upgrade your surveillance and networking system with the high-performance ZEBRONICS 16 Channel Full Gigabit PoE Switch, designed to deliver powerful data transmission, stable connectivity, and efficient power delivery for professional-grade installations. This switch is built to meet the demands of modern IP surveillance systems and enterprise networking environments where speed, reliability, and continuous operation are essential.

Equipped with 16 PoE-enabled Gigabit Ethernet ports, the switch provides both power and data through a single Ethernet cable, simplifying installation and reducing wiring costs. It is ideal for powering IP cameras, wireless access points, VoIP phones, and NVR systems, making it a complete solution for large-scale CCTV and networking setups.

With full Gigabit speed across all ports, the switch ensures ultra-fast data transfer, minimal latency, and smooth HD/4K video streaming. The high-bandwidth capability makes it suitable for environments that require continuous video recording and real-time monitoring without network interruptions.

The dedicated Gigabit uplink ports enable seamless communication with core network devices such as routers and NVRs, ensuring stable and efficient data flow across the entire network infrastructure. This helps maintain consistent performance even under heavy traffic conditions.

Built with a durable metal housing, the switch offers strong heat dissipation and long-lasting durability for 24/7 continuous operation. Its intelligent power management system protects connected devices from overload, short circuits, and voltage fluctuations, ensuring safe and reliable performance in demanding environments.

The plug-and-play design allows for quick and easy installation without complex configuration, making it suitable for offices, commercial buildings, warehouses, schools, hospitals, retail stores, and large security surveillance systems.

The ZEBRONICS 16CH Full Gigabit PoE Switch is a powerful, efficient, and reliable networking solution that combines high-speed performance, smart power distribution, and industrial-grade stability—perfect for modern security and networking needs.

Brand	‎ZEBRONICS
Manufacturer	‎118, Poonamallee High Rd, Vepery, Purasaiwakkam, Chennai, Tamil Nadu 600084, ZEBRONICS
Series	‎ZEB-16PPM2UG-SG
Item Height	‎46 Millimeters
Item Width	‎21 Centimeters
Product Dimensions	‎32 x 21 x 4.6 cm; 1.8 kg
Wattage	‎300 Watts
Included Components	‎19-Ports 10/100M Switch with 16 x PoE ports and 3 x Gigabit Uplink : 1 unit, AC Power Plug : 1 unit, Rack Kit : 1 unit, User Guide : 1 unit, Warranty Card : 1 unit
Manufacturer	‎ZEBRONICS
Item Weight	‎1 kg 800 g

Weight	1 kg
Brand	Zebronics
Warranty	2 Years
Dimensions	‎32 x 21 x 4.6 cm; 1.8 kg
Cable Type	Cat5e / Cat6 Ethernet cables
