Synology DiskStation DS224+ Network Attached Storage Drive (Black)
Sale!21%
Original price was: ₹39,000.00.₹30,990.00Current price is: ₹30,990.00. (Inclusive of GST)
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Get it by
Feb 09 Feb 13
Guaranteed safe & secure checkout
Description
Specifications
Additional information
Reviews (0)
Q & A

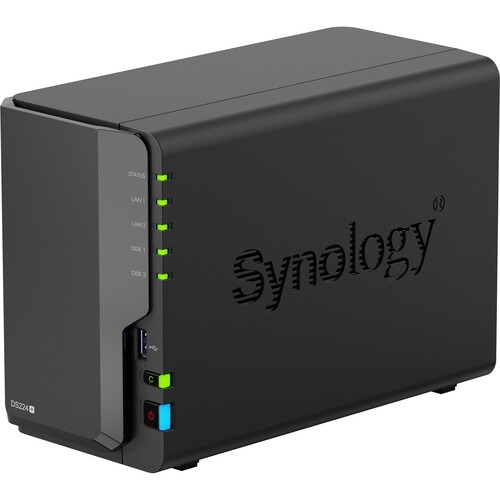

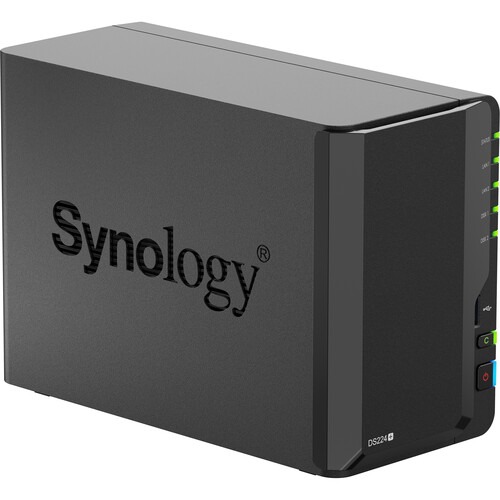

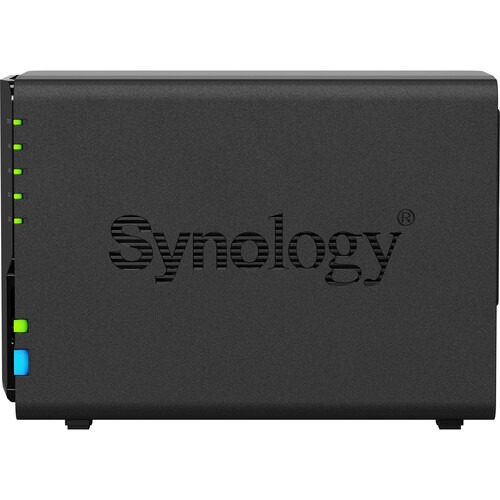

Synology DiskStation DS224+ 2-Bay NAS Enclosure
Overview :
Built with a quad-core processor, an AES-NI hardware encryption engine, and Btrfs file system support, the DiskStation DS224+ 2-Bay NAS Enclosure from Synology is a compact NAS designed to bring centralized data management to small organizations and teams. The DS224+ is equipped with two drive bays that are capable of natively supporting 3.5″ SATA hard drives as well as 2.5″ SATA hard drives and SSDs. Using its two drive bays, this NAS will allow you to store and share a large number of files with up to 2048 user accounts and 1500 maximum concurrent connections.
The DS224+ runs on Synology DiskStation Manager (DSM) OS, which is a browser-based operating system which helps to simplify managing your Synology NAS. Its CPU is a 2.0 GHz Intel Celeron J4125 Quad-Core with a burst frequency of up to 2.7 GHz, and its 2GB of DDR4 RAM, which can be upgraded to 6GB, allows frequently used files and applications to be quickly accessed.

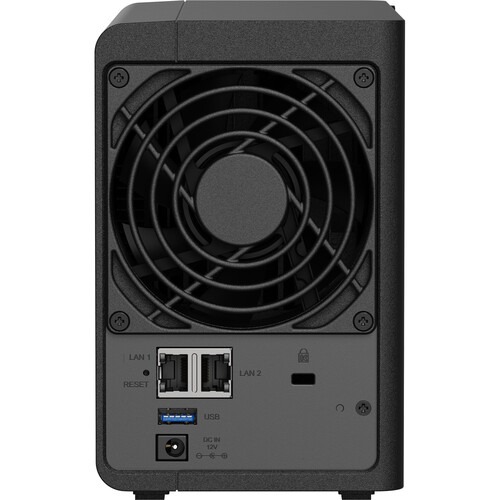

Also featured are two USB-A 3.2 Gen 1 ports for connecting external devices, and network connectivity is achieved via the dual integrated Gigabit Ethernet ports that support link aggregation and failover, allowing your stored data to be shared with users throughout the network. Data may also be made remotely available through the free iOS and Android applications. For those who require RAID support, the DS224+ supports RAID 0 and 1, as well Synology Hybrid RAID and Basic RAID, each of which offers performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.
The DS224+ is engineered to be energy efficient. Not only does it offer a 92 x 92mm fan to help keep the system running cool at all times, its noise dampening design, with a rating of 22 dBA, makes for quiet operations. The server supports numerous scheduled power on/off cycles and hard drive hibernation to further minimize power consumption and operation expenses.
The Synology DiskStation DS224+ 2-Bay NAS Enclosure operates on 100-240 VAC at 50/60 Hz and includes an accessory pack, a 60W AC power adapter, an AC power cord, and two RJ45 LAN cables. It is protected by a limited 2-year warranty.
Keep Your Data On-Site
Consolidate and SafeguardProtect all your data with integrated security features and centralized access.
Manage Important Data Share, back up, and access files, photos, surveillance video, and more.
Minimize Energy Impact
15W under full operation keeps operating costs low.
Simply Faster
The DS224+ is faster at indexing files in Synology Drive and Synology Photos and more capable of running demanding web applications compared to previous-generation systems.
Store, Share, and Protect
Manage all your documents, images, and other files, back up applications and devices, and protect your property with professional video surveillance.
Private Cloud for Data Sharing
Hybrid Work In the Private Cloud
Store, sync, access, and share data from any device, wherever you are. Work together seamlessly across different platforms, accessing files through mobile apps, desktop clients, or a browser-based interface. Quickly and easily roll back files in case of unwanted deletion or modification thanks to smart versioning.Keep Your Photos Organized
Effortlessly back up and organize photos, videos, and other visual assets using intuitive management tools. Automatically organize your content into albums and create secure share links for stakeholders and teammates.Synchronize Data Between Sites
Work together with minimal slowdown using site-to-site file syncing, which can be configured to automatically synchronize individual files or folders between Synology devices, allowing seamless file access from local devices.Manage Data with the Power of the Cloud
Reduce your on-site storage footprint and benefit from data center network speeds with hybrid cloud technology. Synology Hybrid Share adds automatic cloud tiering, keeping the bulk of data in the cloud, while caching frequently accessed files cached locally on your DS224+ for fast access at LAN speeds.
Store, sync, access, and share data from any device, wherever you are. Work together seamlessly across different platforms, accessing files through mobile apps, desktop clients, or a browser-based interface. Quickly and easily roll back files in case of unwanted deletion or modification thanks to smart versioning.Keep Your Photos Organized
Effortlessly back up and organize photos, videos, and other visual assets using intuitive management tools. Automatically organize your content into albums and create secure share links for stakeholders and teammates.Synchronize Data Between Sites
Work together with minimal slowdown using site-to-site file syncing, which can be configured to automatically synchronize individual files or folders between Synology devices, allowing seamless file access from local devices.Manage Data with the Power of the Cloud
Reduce your on-site storage footprint and benefit from data center network speeds with hybrid cloud technology. Synology Hybrid Share adds automatic cloud tiering, keeping the bulk of data in the cloud, while caching frequently accessed files cached locally on your DS224+ for fast access at LAN speeds.
Multi-Layered Backup
Back Up Workstations, Smartphones, Cloud Apps, and More
Consolidate and automate backup tasks for workstations, file servers, VMs, SaaS applications, and more with Active Backup Suite. Administer device backups remotely through a centralized portal and quickly restore specific files or entire devices to keep your business up and running. Take advantage of built-in remote backup solutions designed to protect your data with seamless 3-2-1 backup configurations.Perform Full Synology System Backups
Protect all data, applications, and configurations on your Synology systems with comprehensive scheduled backups to local and remote servers, external drives, or cloud storage destinations including Synology C2 Storage.Protect Folders and LUNs with Snapshots
Configure efficient point-in-time snapshots of shared folders and LUNs at intervals as short as 5 minutes. Let users easily restore previous versions of files unassisted, quickly recover VMs, and copy snapshots to another server to benefit from rapid storage failover. Further safeguard data integrity with immutable snapshots.
Consolidate and automate backup tasks for workstations, file servers, VMs, SaaS applications, and more with Active Backup Suite. Administer device backups remotely through a centralized portal and quickly restore specific files or entire devices to keep your business up and running. Take advantage of built-in remote backup solutions designed to protect your data with seamless 3-2-1 backup configurations.Perform Full Synology System Backups
Protect all data, applications, and configurations on your Synology systems with comprehensive scheduled backups to local and remote servers, external drives, or cloud storage destinations including Synology C2 Storage.Protect Folders and LUNs with Snapshots
Configure efficient point-in-time snapshots of shared folders and LUNs at intervals as short as 5 minutes. Let users easily restore previous versions of files unassisted, quickly recover VMs, and copy snapshots to another server to benefit from rapid storage failover. Further safeguard data integrity with immutable snapshots.
Smart Surveillance Management
Synology Surveillance Station
Protecting your business has never been easier with centralized management and support for over 8300 IP camera models, remote monitoring, and playback. Synology’s video management system provides all the tools you need for live monitoring, investigation, management, and backup.Dual Recording to the Cloud
C2 Surveillance allows you to keep access to surveillance footage if your recording server is disabled by recording to your local server as well as the C2 cloud. End-to-end encryption protects streams against unauthorized access while low-latency recording lets you review the crucial last few seconds before the recording server was lost.
Protecting your business has never been easier with centralized management and support for over 8300 IP camera models, remote monitoring, and playback. Synology’s video management system provides all the tools you need for live monitoring, investigation, management, and backup.Dual Recording to the Cloud
C2 Surveillance allows you to keep access to surveillance footage if your recording server is disabled by recording to your local server as well as the C2 cloud. End-to-end encryption protects streams against unauthorized access while low-latency recording lets you review the crucial last few seconds before the recording server was lost.
BTRFS: Advanced File System for Data Protection
The Synology DiskStation Manager (DSM) operating system that powers the DS224+ uses the advanced Btrfs file system, which safeguards your data against corruption and allows for the reversal of unintended or malicious changes through the use of snapshot technology.
Performance Backed by Synology Drives
Leverage high sustained performance and reliability with well-engineered drives designed specially for Synology systems.
Extra Protection with Extended Warranty Plus
Extend the standard limited 2-year hardware warranty of your DS224+ with 2 more years of Synology-certified support and premium services to help you recover faster in the event of disaster.
Specifications
|
CPU
|
CPU Model | Intel Celeron J4125 |
|---|---|---|
| CPU Quantity | 1 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 4-core 2.0 (base) / 2.7 (burst) GHz | |
| Hardware Encryption Engine (AES-NI) | ||
|
Memory
|
System Memory | 2 GB DDR4 non-ECC |
| Total Memory Slots | 1 | |
| Maximum Memory Capacity | 6 GB (2 GB + 4 GB) | |
| Notes |
|
|
|
Storage
|
Drive Bays | 2 |
| Compatible Drive Type* |
|
|
| Hot Swappable Drive* | ||
| Notes | "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. | |
|
External Ports
|
RJ-45 1GbE LAN Port | 2 (with Link Aggregation / Failover support) |
| USB 3.2 Gen 1 Port* | 2 | |
| USB Copy | ||
| Notes |
|
|
|
File System
|
Internal Drives |
|
| External Drives |
|
|
|
Appearance
|
Size (Height x Width x Depth) | 165 mm x 108 mm x 232.2 mm |
| Weight | 1.30 kg | |
|
Others
|
System Fan | 92 mm x 92 mm x 1 pcs |
| Fan Speed Mode |
|
|
| Brightness Adjustable Front LED Indicators | ||
| Power Recovery | ||
| Noise Level* | 22 dB(A) | |
| Scheduled Power On / Off | ||
| Wake on LAN / WAN | ||
| Power Supply Unit / Adapter | 60 W | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 14.69 W (Access) 4.41 W (HDD Hibernation) | |
| British Thermal Unit | 50.09 BTU/hr (Access) 15.04 BTU/hr (HDD Hibernation) | |
| Notes |
|
|
|
Temperature
|
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
|
Certification
|
|
|
|
Warranty
|
2-year hardware warranty, extendable to 4 years with Extended Warranty Plus | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. | |
|
Environment
|
RoHS Compliant | |
|
Packaging Content
|
|
|
|
Optional Accessories
|
|
|
| Notes | All memory modules will operate at the maximum frequency specified by the CPU manufacturer. | |
|
DSM Specifications
|
||
|
Storage Management
|
Maximum Single Volume Size | 108 TB |
| Maximum Internal Volume Number | 64 | |
| SSD TRIM | ||
| Supported RAID Type |
|
|
| RAID Migration | Basic to RAID 1 | |
| Volume Expansion with Larger HDDs |
|
|
| Volume Expansion by Adding a HDD | Synology Hybrid RAID | |
| Notes |
|
|
|
File Services
|
File Protocol | SMB/AFP/NFS/FTP/WebDAV |
| Maximum Concurrent SMB/AFP/FTP Connections | 500 | |
| Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion) | 1,500 | |
| Windows Access Control List (ACL) Integration | ||
| NFS Kerberos Authentication | ||
| Notes |
|
|
|
Account & Shared Folder
|
Maximum Local User Accounts | 2,048 |
| Maximum Local Groups | 256 | |
| Maximum Shared Folder | 256 | |
| Maximum Shared Folder Sync Tasks | 8 | |
|
Hybrid Share
|
Hybrid Share Folder Number | 10 |
|
Hyper Backup
|
Folder and Package Backup | |
| Entire System Backup | ||
| Notes | Full-system backup requires DSM 7.2 or later. | |
|
High Availability
|
Synology High Availability | |
|
Log Center
|
Syslog Events per Second | 800 |
|
General Specifications
|
Networking Protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Supported Browsers |
|
|
| Supported Language | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 | |
|
Add-on Packages view the complete package list
|
||
|
Antivirus by McAfee (Trial)
|
||
|
Central Management System
|
||
|
Synology Chat
|
Suggested Concurrent Users | 100 |
| Notes |
|
|
|
Document Viewer
|
||
|
Download Station
|
Maximum Concurrent Download Tasks | 80 |
|
SAN Manager
|
Maximum iSCSI Target Number | 128 |
| Maximum LUN | 256 | |
| LUN Clone/Snapshot, Windows ODX | ||
|
Synology MailPlus / MailPlus Server
|
Free Email Accounts | 5 (Additional accounts require purchase of licenses) |
| Suggested Maximum Users | 500 | |
| Suggested Concurrent Users | 100 | |
| Maximum Server Performance | 1,224,000 emails per day, approx. 37GB | |
| Notes |
|
|
|
Media Server
|
DLNA Compliance | |
|
Synology Photos
|
Facial Recognition | |
| Object Recognition | ||
| Notes | Object recognition requires an upgrade of memory capacity to a minimum of 4 GB. | |
|
Snapshot Replication
|
Maximum Snapshots per Shared Folder | 1,024 |
| Maximum of System Snapshots | 65,536 | |
|
Surveillance Station
|
Default Licenses | 2 (Additional cameras require purchase of licenses) |
| Maximum IP Cameras and Total FPS (H.264) |
|
|
| Maximum IP Cameras and Total FPS (H.265) |
|
|
| Notes |
|
|
|
Synology Drive
|
Recommended Number of Concurrent Sync Clients | 350 (the number of connections that can be maintained when the recommended number of hosted files was reached) |
| Recommended Number of Hosted Files | 5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) | |
| Notes |
|
|
|
Synology Office
|
Suggested Maximum Users | 1,500 |
| Suggested Concurrent Users | 600 | |
| Notes |
|
|
|
Video Station
|
||
|
Virtual Machine Manager
|
Recommended Virtual Machine Instances | 2 (Learn more) |
| Recommended Virtual DSM Number (Licenses required) | 2 (including 1 Free License) | |
| Notes | The specifications vary depending on system configuration and memory size. | |
| Maximum Connections | 40 | |
| Weight | 1 kg |
|---|---|
| Product Type | Server |
| Brand | Synology |
| color | Black |
| Connector | RJ45, USB 3.2 |
| NAS Bays | 2 Bays |
| Warranty | 1 Year |
| EAN Code | 4711174725250 |
