Sapphire Pulse AMD Radeon RX 9070 16Gb GDDR6 Graphics Card

Sapphire Pulse AMD Radeon RX 9070 16Gb GDDR6 Graphics Card

Sale!

GPU: Boost Clock: Up to 2520 MHz
GPU: Game Clock: Up to 2070 MHz
Memory: 16GB/256 bit DDR6. 20Gbps Effective
Stream Processors: 3584

Call for Price

Out of stock

SKU: Pulse-RX-9070

Categories:Graphics Card, Sapphire Graphic Card

Tags:Sapphire Pulse AMD Radeon RX 9070, Pulse-RX-9070, SAPPHIRE, Sapphire Graphics Card, Sapphire Pulse AMD Radeon RX 9070 16Gb GDDR6 Graphics Card, Sapphire Pulse AMD Radeon RX 9070 16Gb

Brand: Sapphire

Guaranteed safe & secure checkout

Description

SPECIFICATIONS

Additional information

Q & A

Sapphire Pulse AMD Radeon RX 9070 16Gb GDDR6 Graphics Card

Feature

Sapphire Pulse AMD Radeon™ RX 9070 Series Graphics Card are designed with digital power which provides accurate power control and excellent power efficiency

GPU: Boost Clock: Up to 2520 MHz
GPU: Game Clock: Up to 2070 MHz
Memory: 16GB/256 bit DDR6. 20Gbps Effective
Stream Processors: 3584
AMD RDNA™ 4 Architecture
Ray Accelerator: 56

AMD RDNA™ 4 Architecture

16GB of GDDR6 memory
AMD HYPR-RX with AFMF 2
DisplayPort™ 2.1a
AMD Fidelity FX™ Super Resolution 4 with AI Upscaling
AMD Radiance Display™ Engine
AMD Fluid Motion Frames 2 technology

Sapphire Pulse AMD Radeon RX 9070 16Gb GDDR6 Graphics Card - Green Apple Compunet

Honeywell PTM7950 TIM

The Honeywell PTM7950 Thermal Interface Material (TIM) offers a premium solution for high-performance electronics, particularly in the demanding field of graphics processing units (GPUs). The PTM7950 delivers superior thermal conductivity, enhancing the reliability and longevity of graphics cards by its outstanding material characteristics.

Sapphire Pulse AMD Radeon RX 9070 16Gb GDDR6 Graphics Card - Green Apple Compunet

Free Flow

The Free Flow cooling design is tailored for axial fan systems, featuring an advanced heatsink fin module that optimizes airflow paths. By reducing turbulence and channeling air efficiently, it maximizes heat dissipation, ensuring consistent performance even under heavy thermal loads.

Aero Curve Fan Blade

The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimized static pressure, and enhanced cooling efficiency for demanding applications.

Optimized Composite Heatpipe

The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.

Integrated Cooling Module

Integrated Cooling is an advanced thermal management solution engineered to provide efficient heat dissipation across all critical components of a graphics card. This innovative design ensures direct contact with the GPU, memory modules, and VRMs, delivering uniform thermal regulation. By addressing all major heat sources, the Integrated Cooling Module helps maintain stable operating temperatures, improving overall system performance and reliability. Ideal for demanding workloads such as gaming, content creation, and overclocking, it ensures optimal thermal efficiency under sustained use.

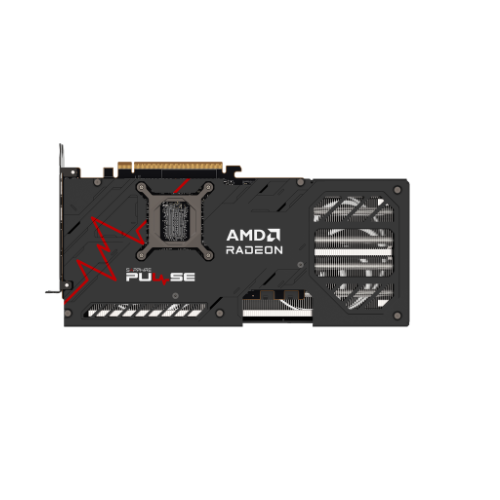

Tough Metal Backplate

The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.

Frame Defense

The mechanical design of the graphics card features a robust, box-like frame that ensures exceptional build quality and durability. This solid construction provides a protective enclosure for all internal components, reducing the risk of damage during handling or installation. This rigid frame offers added stability and strength, making it highly resistant to accidental impacts or pressure, ensuring that the delicate components, such as the GPU, memory, and VRMs, remain secure. With this design, users can confidently handle the card without worrying about compromising its integrity or performance.

Two-Ball Bearing

These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.

High TG Copper PCB

The GPU is mounted on to the high-density 12 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

Fuse Protection

In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

Digital Power Design

SAPPHIRE PULSE AMD Radeon™ RX 9070 Series are designed with digital power which provides accurate power control and excellent power efficiency

AMD RDNA™ 4

SPECIFICATIONS

GPU	AMD Radeon™ RX 9070 Graphics Card AMD RDNA™ 4 Architecture
Engine Clock	Boost Clock: Up to 2520 MHz Game Clock: Up to 2070 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors	3584
Compute Units	56 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
Infinity Cache	64MB
Ray Accelerators	56
AI Accelerator	112
Memory Size / Bus	16GB/256 bit GDDR6
Memory Clock	20 Gbps Effective
Display	Maximum 4 Displays
Resolution	HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320
Interface	PCI-Express 5.0 x16
Output	2x HDMI® 2x DisplayPort™ 2.1a
BIOS Support	UEFI
Game Index	4K
Sapphire Features	Honeywell PTM7950 Thermal Interface Material (TIM) AeroCurve Fan Blade Free Flow FrameDefense Integrated Cooling Module Dual-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipes Metal Backplate Two-Ball Bearing Fans 12-Phase Digital Power Design Fuse Protection Intelligent Fan Control Precision Fan Control TriXX Supported TriXX Boost
AMD Features	AMD RDNA™ 4 Architecture 56 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) AMD HYPR-RX with AFMF 2 AMD FidelityFX™ Super Resolution 4 with AI Upscaling DisplayPort™ 2.1a AMD Radiance Display™ Engine AMD Fluid Motion Frames 2 technology AMD Radeon™ Anti-Lag 2 technology AV1 Encode/Decode AMD FidelityFX™ technologies Microsoft® DirectX® 12 Ultimate AMD Noise Suppression AMD Freesync™ technology 16 GB of GDDR6 on 256-bit Memory Bus AMD smart technologies AMD Software: Adrenalin Edition™ application
Cooler Type	Dual-X Cooling AeroCurve Fan Blade Free Flow Integrated Cooling Module High TG Copper PCB Optimized Composite Heatpipes Two-Ball Bearing
Form Factor	2.5 slot, ATX Dimension: 280(L)X 120.25(W)X 51.5 (H)mm
Power Consumption	220W Typical Board Power
OS	Linux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement	Minimum 650 Watt Power Supply 2 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended.
Warranty	3 Years
Note**	**Prices, Specifications & Features are subject to change without notice

Weight	3 kg
Product Type	Gaming
color	Black
Brand	Sapphire
GPU Chipset	AMD Radeon
GPU Series	Radeon RX 9000
GPU Memory Size	16GB
Memory Series	GDDR6
Max GPU Boost Clock	2520 MHz
Warranty	3 Years
Memory Bus	256 Bit
