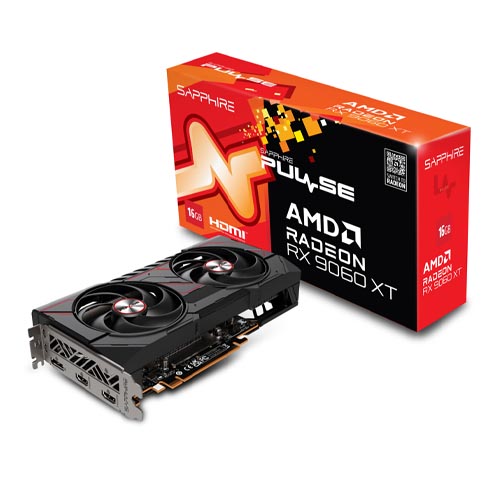

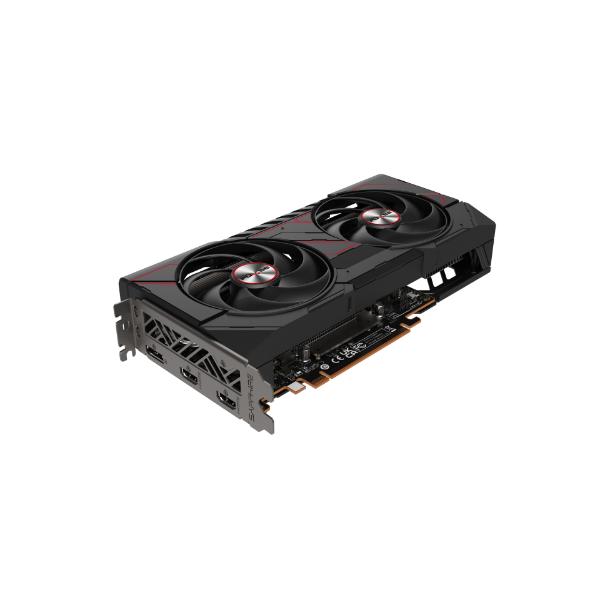

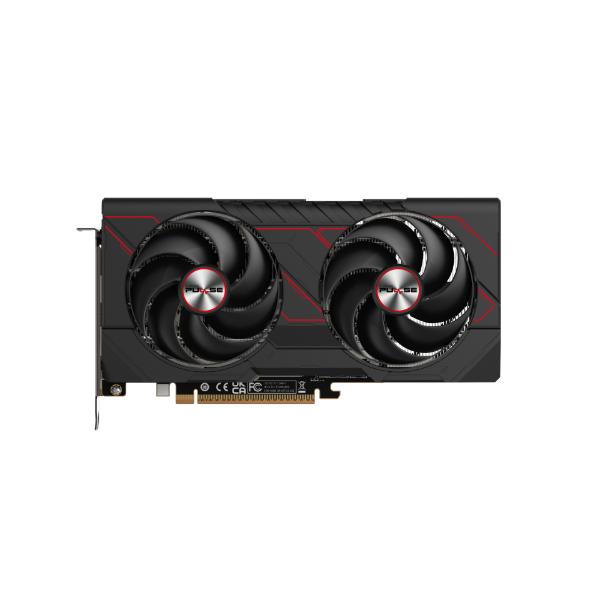

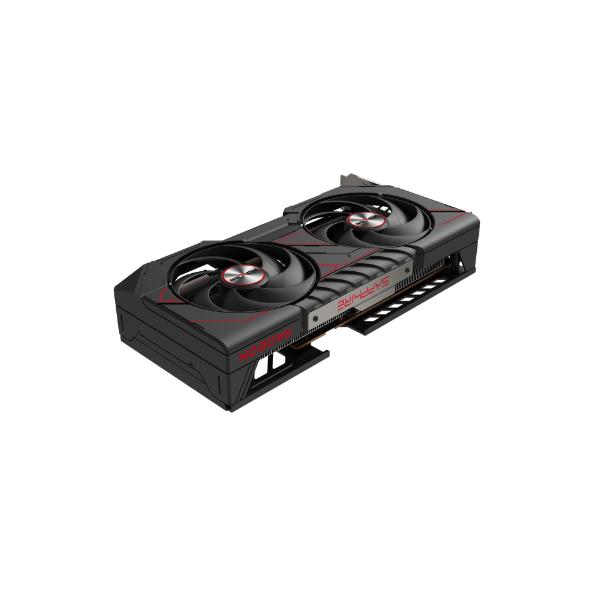

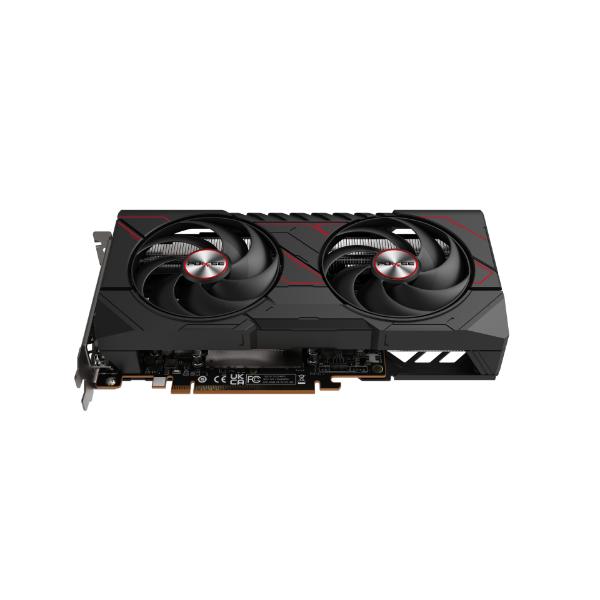

Sapphire PULSE AMD Radeon™ RX 9060 XT 16GB GPU
Sale!51%
- GPU: Boost Clock: Up to 3290 MHz
- GPU: Game Clock: Up to 2700 MHz
- Memory: 16GB/128 bit DDR6. 20Gbps Effective
- Stream Processors: 2048
- AMD RDNA™ 4 Architecture
- Ray Accelerator: 32
Original price was: ₹75,999.00.₹37,599.00Current price is: ₹37,599.00. (Inclusive of GST)
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Get it by
Jun 24 Jun 28
Guaranteed safe & secure checkout
Description
SPECIFICATIONS
Additional information
Q & A
Sapphire PULSE AMD Radeon™ RX 9060 XT 16GB GPU
Honeywell PTM7950 TIM
The Honeywell PTM7950 Thermal Interface Material (TIM) offers a premium solution for high-performance electronics, particularly in the demanding field of graphics processing units (GPUs). The PTM7950 delivers superior thermal conductivity, enhancing the reliability and longevity of graphics cards by its outstanding material characteristics.
Free Flow
The Free Flow cooling design is tailored for axial fan systems, featuring an advanced heatsink fin module that optimizes airflow paths. By reducing turbulence and channeling air efficiently, it maximizes heat dissipation, ensuring consistent performance even under heavy thermal loads.
AeroCurve Fan Blade
The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimized static pressure, and enhanced cooling efficiency for demanding applications.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Integrated Cooling Module
Integrated Cooling is an advanced thermal management solution engineered to provide efficient heat dissipation across all critical components of a graphics card. This innovative design ensures direct contact with the GPU, memory modules, and VRMs, delivering uniform thermal regulation. By addressing all major heat sources, the Integrated Cooling Module helps maintain stable operating temperatures, improving overall system performance and reliability. Ideal for demanding workloads such as gaming, content creation, and overclocking, it ensures optimal thermal efficiency under sustained use.

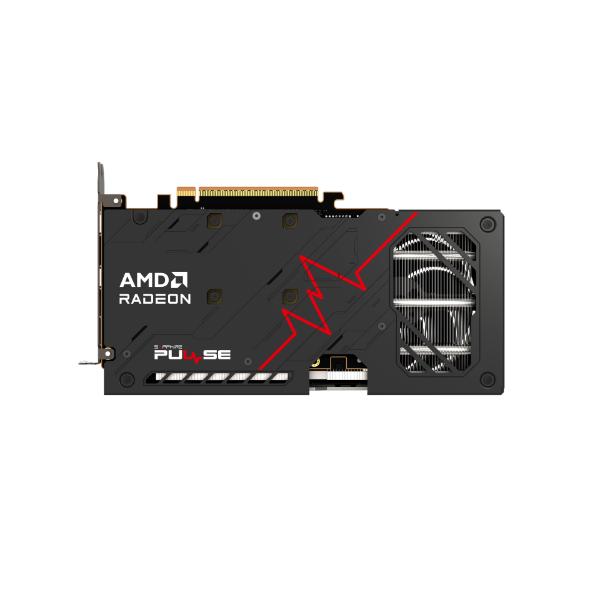

Tough Metal Backplate
The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.
FrameDefense
The mechanical design of the graphics card features a robust, box-like frame that ensures exceptional build quality and durability. This solid construction provides a protective enclosure for all internal components, reducing the risk of damage during handling or installation. This rigid frame offers added stability and strength, making it highly resistant to accidental impacts or pressure, ensuring that the delicate components, such as the GPU, memory, and VRMs, remain secure. With this design, users can confidently handle the card without worrying about compromising its integrity or performance.
Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
High TG Copper PCB
The GPU is mounted on to the high-density 10 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.
Digital Power Design
SAPPHIRE PULSE AMD Radeon™ RX 9060 Series are designed with digital power which provides accurate power control and excellent power efficiency
SPECIFICATIONS
| SAPPHIRE PULSE AMD Radeon™ RX 9060 XT GPU | |
|---|---|
| GPU Specifications | |
| GPU Model | AMD Radeon™ RX 9060 XT Graphics Card |
| Architecture | AMD RDNA™ 4 |
| Clock Speeds | Boost Clock: Up to 3290 MHz Game Clock: Up to 2700 MHz |
| Stream Processors | 2048 |
| Compute Units | 32 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Infinity Cache | 32MB |
| Ray Accelerators | 32 |
| AI Accelerator | 64 |
| Memory | 16GB/128-bit GDDR6 |
| Memory Clock | 20 Gbps Effective |
| Display Support | Maximum 3 Displays |
| Resolution | HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320 |
| Interface | PCI-Express 5.0 x16 |
| Outputs | 2x HDMI® 1x DisplayPort™ 2.1a |
| BIOS Support | UEFI |
| Game Index | 1440P |
| Sapphire Features | |
| Honeywell PTM7950 Thermal Interface Material (TIM) AeroCurve Fan Blade Free Flow FrameDefense Integrated Cooling Module Dual-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipes Metal Backplate Sleeve Bearing Fans 9-Phase Digital Power Design Fuse Protection Intelligent Fan Control Precision Fan Control TriXX Supported TriXX Boost | |
| AMD Features | |
| AMD RDNA™ 4 Architecture 32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) AMD HYPR-RX with AFMF 2 AMD FidelityFX™ Super Resolution 4 with AI Upscaling DisplayPort™ 2.1a AMD Radiance Display™ Engine AMD Fluid Motion Frames 2 technology AMD Radeon™ Anti-Lag 2 technology AV1 Encode/Decode AMD FidelityFX™ technologies Microsoft® DirectX® 12 Ultimate AMD Noise Suppression AMD Freesync™ technology AMD Infinity Cache 16 GB of GDDR6 on 128-bit Memory Bus AMD smart technologies AMD Software: Adrenalin Edition™ application | |
| Cooling | |
| Cooler Type | Dual-X Cooling AeroCurve Fan Blade Free Flow Integrated Cooling Module High TG Copper PCB Optimized Composite Heatpipes Sleeve Bearing |
| Form Factor | 2.3 slot, ATX |
| Dimensions | 240(L) × 124(W) × 46.1(H) mm |
| Power Consumption | 170W Typical Board Power |
| OS Support | Linux®, Windows® 10, and Windows 11 (64-bit required) |
| System Requirements | |
| Power Supply | Minimum 450 Watt |
| Power Connector | 1 x 8-pin |
| Motherboard | PCI Express® based PC with one X16 lane graphics slot |
| System Memory | Minimum 8GB (16GB recommended) |
| Weight | 1 kg |
|---|---|
| Brand | Sapphire |
| color | Black |
| GPU Chipset | AMD Radeon |
| GPU Memory Size | 16GB |
| Memory Series | GDDR6 |
| Warranty | 3 Years |
| EAN Code | 4895106296381 |
| GPU Series | Radeon RX 9000 |
| Max GPU Boost Clock | 3290 MHz |
| Memory Bus | 128 bit |
| Product Type | Gaming |
