Prolab Design AI838 Mid Tower Workstation Case

Prolab Design AI838 Mid Tower Workstation Case

Feature

The Prolab Design AI838 Mid Tower Workstation Case delivers a versatile balance of space, durability, and functionality for users who demand both performance and expandability. Measuring 207 × 440 × 508 mm, it is labeled as a “Super Tower” but is compact enough to fit comfortably in most work or home office setups. Constructed from SGCC steel and ABS plastic, this chassis provides a robust framework to support a wide range of professional or enthusiast-level hardware.

Motherboard & Drive Support

• CEB, ATX, Micro-ATX, Mini-ITX: Compatible with an array of form factors, making it suitable for workstation builds, server-like configurations, or even a powerful gaming system.

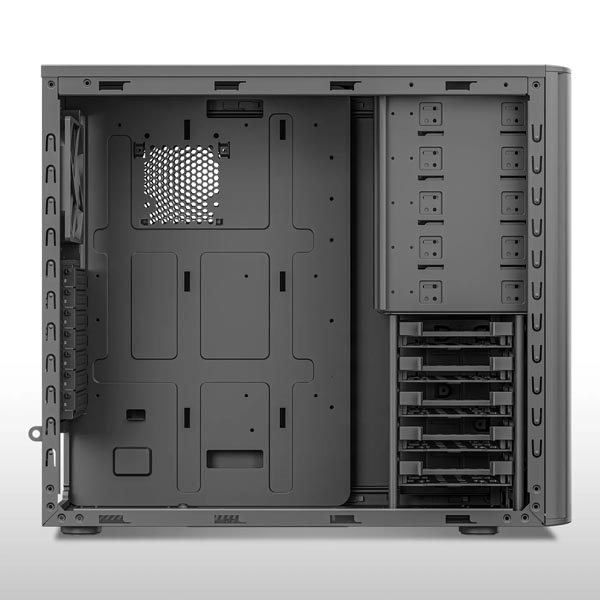

• Drive Bays: Equipped with 10 total bays for either 3.5″ or 2.5″ drives, alongside 5 external 5.25″ bays for optical drives or additional front-panel accessories. This generous storage capacity accommodates demanding workflows and large media libraries.

Cooling & Fan Options

• Pre-Installed Fan: Comes with a single 120 mm rear fan to kickstart airflow out of the box.
• Additional Mounting Points:
  • Front: 1 × 120 mm
  • Top: 2 × 120 mm
  • Side: 2 × 120 mm
  • Rear: 1 × 120 mm (pre-installed)
  • Bottom: None
• Radiator Support:
  • Top: Up to 240 mm
  • Rear: 120 mm
  • Front/Side/Bottom: None

While not heavily focused on liquid cooling, these fan and radiator configurations ensure adequate airflow and temperature management for moderate to high-performance builds.

Expansion & Clearance

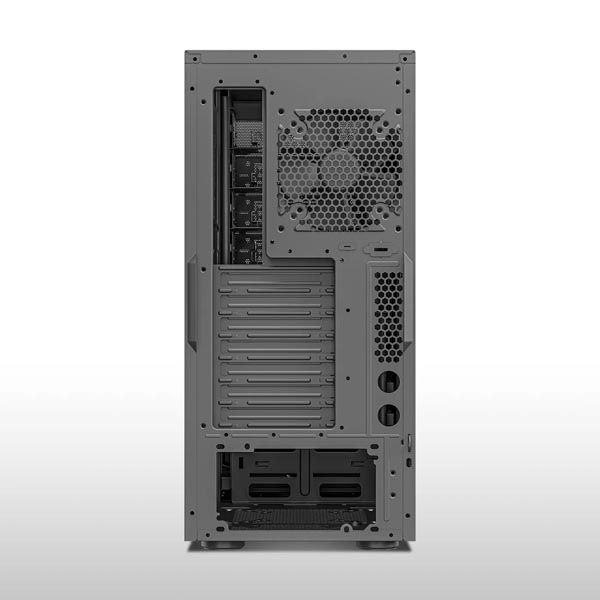

• Expansion Slots: 7 slots allow for multi-GPU setups or additional PCIe devices.
• Graphics Card Clearance: Supports GPU lengths up to 290 mm, sufficient for many mainstream to high-end cards.
• CPU Cooler Height: Accommodates coolers up to 160 mm tall, covering a wide range of tower-style air coolers.

Front I/O & Accessibility

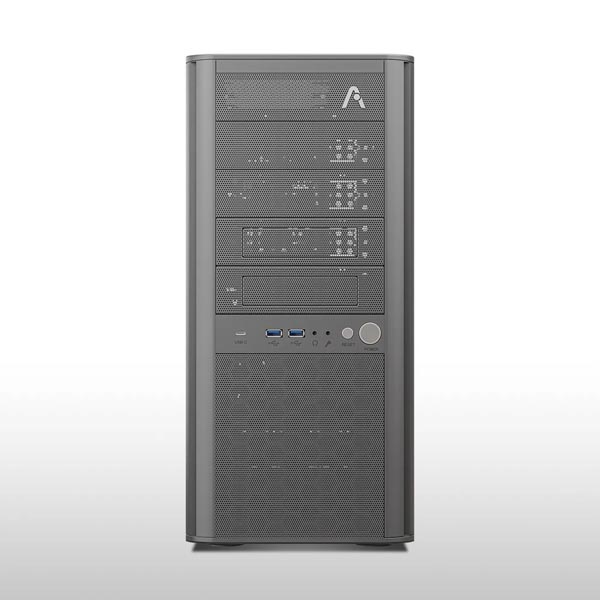

• I/O Panel: Features 2 × USB 3.0, 1 × Type-C, audio in, mic, and dedicated power/reset buttons.
• Box Dimensions: Shipped in packaging sized 308 × 515 × 603 mm, with a net weight of 8.45 kg (gross weight 9.85 kg). This ensures safe transport and straightforward setup upon arrival.
