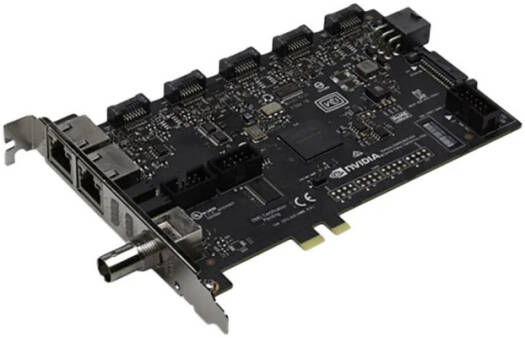

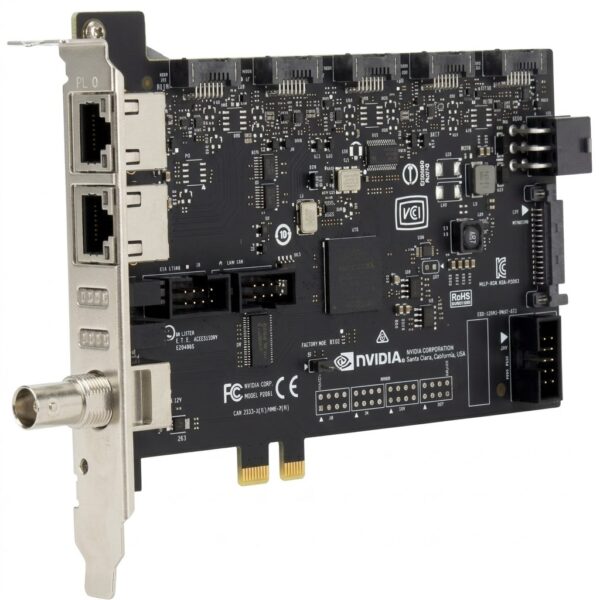

PNY RTX PRO Sync Option Board for NVIDIA RTX Professional GPUs, PCIe x16 AIC, Up to 8 GPUs, Multi GPU Sync, 32 Displays, NVIDIA Mosaic, Genlock, Stereoscopic 3D
RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.
Original price was: ₹162,199.00.₹84,990.00Current price is: ₹84,990.00. (Inclusive of GST)
107
People watching this product now!
PNY RTX PRO Sync Option Board for NVIDIA RTX Professional GPUs, PCIe x16 AIC, Up to 8 GPUs, Multi GPU Sync, 32 Displays, NVIDIA Mosaic, Genlock, Stereoscopic 3D
Seamless Synchronization for Multi-Display Systems
NVIDIA RTX PRO™ Sync and compatible NVIDIA Professional GPUs support Windows 10, 11, and Linux, providing a robust system that lets you:
- Drive large-scale synchronized multi-display solutions using enterprise-grade platforms at any scale – from digital signage to building-scale experiences
- Synchronize hundreds of displays to build larger-than-life solutions – from videos to interactive 3D graphics and everything in between
- Deploy in cutting-edge mission-critical installations globally.
Flexible and scalable deployment of ultra-high resolution display systems
The NVIDIA RTX PRO Sync solution is supported on NVIDIA RTX™ professional and NVIDIA Data Center GPUs, providing powerful options for ultra-high resolution display setups. NVIDIA
RTX PRO Sync Box
Each NVIDIA RTX PRO Sync box includes the following components:
- NVIDIA RTX PRO Sync Card
- 12-inch short sync cables (x4)
- 24-inch-long sync cables (x2)
NVIDIA RTX PRO Sync Firmware
NVIDIA has rolled out a new firmware update for its PNY RTX professional lineup, which includes support for the latest Blackwell SKUs
| PNY RTX PRO Sync Option Board Specifications | |
|---|---|
| Manufacturer Part Number | VCNRTXPROSYNC-SB |
| Form Factor | Single Slot, Full Height PCIe AIC |
| Interface | PCIe 3.0 x16 (Physical slot, no PCIe data connection) |
| GPU Synchronization Capabilities | |
| GPUs Per Sync Card | Up to 4 GPUs |
| Sync Cards Per System | Up to 2 cards |
| Total Synchronized GPUs | Up to 8 GPUs per system |
| Display Support | |
| Maximum Displays/Projectors | 32 per system |
| NVIDIA Mosaic Support | Up to 32 displays |
| Stereoscopic 3D | Supported |
| Projector Overlap | Supported |
| Synchronization Features | |
| Frame Lock | Yes |
| Genlock (External Sync) | Up to 1000 Hz |
| Stereo Lock | Yes |
| Sync Output | Can generate sync signals for other systems |
| Sync Multiply/Divide | Supported (Firmware 2.18+) |
| Mixed Resolution Sync | Supported at same refresh rate |
| Included Components | |
| Internal Sync Cables | 4x 12-inch ribbon cables, 2x 24-inch ribbon cables |
| Physical & Power | |
| Cooling | Passive |
| Power Connector | 6-pin PCI or SATA power connector |
| Status Indicators | LEDs for Frame-lock, Stereo lock, House-sync, Framelock In/Out |
| Software & OS Support | |
| Operating Systems | Windows 10/11 (64-bit), Linux (64-bit) |
| Remote Monitoring | WMI (Windows Management Instrumentation) support |
| Configuration Tools | NVIDIA Control Panel, Command-line tools |
| Firmware | Updatable (Supports Blackwell with v3.04+) |
| Compatible GPUs | |
| Supported Series | NVIDIA RTX PRO Blackwell, RTX Ada Generation, RTX A-Series, Quadro RTX, Quadro Pascal (GP100, P4000+), L40/L40S, A40 |
| Weight | 2 kg |
|---|---|
| Brand |
PNY |
| color |
Black |
| GPU Chipset |
Nvidia Quadro |
