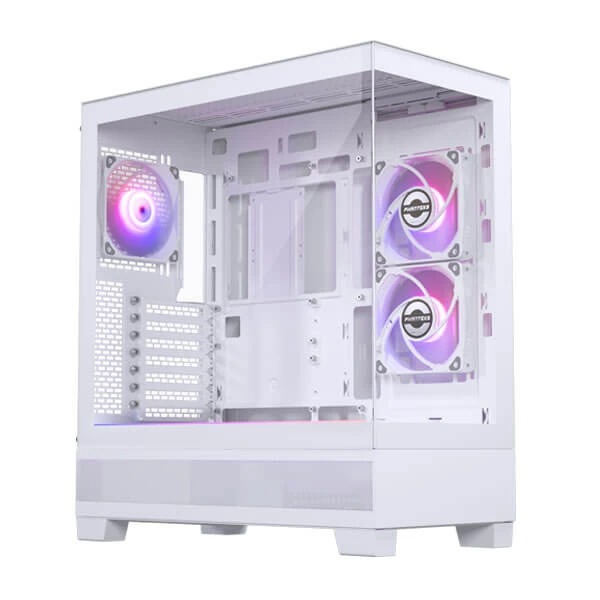

Phanteks XT View D-RGB (E-ATX) Mid Tower Cabinet (White)
Sale!26%
- Support for the latest rear-side connector mainboards
- Front and Side Tempered Glass Windows
- 3x M25-120mm DRGB fans included
- Supports up to 9x 120mm fan positions
- Dedicated 360 radiator support in the top without restrictions
- Support for the largest graphics cards without compromise
Original price was: ₹9,900.00.₹7,299.00Current price is: ₹7,299.00. (Inclusive of GST)
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Get it by
Apr 22 Apr 26
Guaranteed safe & secure checkout
Description
Specifications
Additional information
Reviews (0)
Q & A
Phanteks XT View D-RGB E-ATX Mid Tower Cabinet White (PH-XT523V1-DWT01)
Feature
- Phanteks With new hardware releases demanding more cooling capacity and internal space, the XT-series are designed to deliver just that. And it delivers with extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management. Cooling has been optimized with up to 9x fan locations and dedicated radiator space in the top of the chassis.
- The XT-Series further innovates to bring support for the lastest mainboards that host hidden connectors at the rear to unlock that zero-cable setup. The graphics card also benefits from 3x 120 mm fan locations on the midplate that provides direct cooling.
Key Feature
- Black, Mid-Tower , (D) 440 x (W) 230 x (H) 500mm, Tempered Glass
- 7 Expansion Slots, 2 x 3.5” Drive Bay, 5 x 2.5” Drive Bay
- Front I/O Panel : 1 x USB-C 3.2 GEN 2, 2 x USB 3.0, Microphone/ Headphone Combo, Reset Button, Power Button, D-RGB Color Button, D-RGB Mode Button
- Fan Support : Top -3 x 120 mm / 2 x 140 mm, Right Side Fasn – 2 x 120 mm, Rear – 1 x 120 mm / 1 x 140 mm, Midplate – 3 x 120 mm
- Connectors : Power Switch, Reset Switch, HD-audio, USB 3.0, USB 3.2 GEN 2 Type-E , D-RGB expansion, D-RGB Motherboard
Specifications
| Model Number | PH-XT523V1-DBK01 |
| General | |
| ProductDimension(DxWxH) | 440x230x500mm |
| FormFactor | Mid Tower |
| Motherboard Support | ATX,Micro-ATX,Mini-IT,E-ATX(280mm without GPU support bracket) |
| Materials | Steel Chassis (Tempered Glass) |
| Front lO |
|
| Connectors |
|
| Expansion | |
| PCI Slots | 7 |
| Internal 3.5" Bay | 2(2x included) |
| Internal 2.5" Bay | 5 (5 x included) |
| Fans & Radiators | |
| Top Fan | 3 x 120mm/2 x 140mm |
| Right Side Fan | 2x 120mm |
| Rear Fan | 1x l20mm/ 1x 140mm |
| Midplate Fan | 3 x 120mm |
| Top Radiator | up to 360 |
| Right Side Radiator | up to 240 (onlywithVerticalGPU} |
| Rear Radiator | 120 |
| Clearances | |
| GPU Length | 415 mm |
| GPU Width | 184 mm |
| CPU Cooler Height | 184 mm |
| Power Supply | 270 mm |
| Top 360 radiator | 415 x 138 x 60 mm |
| Side 240 radiator | 305 x 120 x 62mm (only with Vertcal GPU) |
| Rear Radiator | 120 |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Weight | 5 kg |
|---|---|
| Product Type | Normal |
| Brand | Phanteks |
| color | White |
| Motherboard Size | ATX, ITX, mATX, Mini ITX |
| Radiator Size | 360MM |
| Warranty | 5 Years |
| EAN Code | 0886523303183 |
