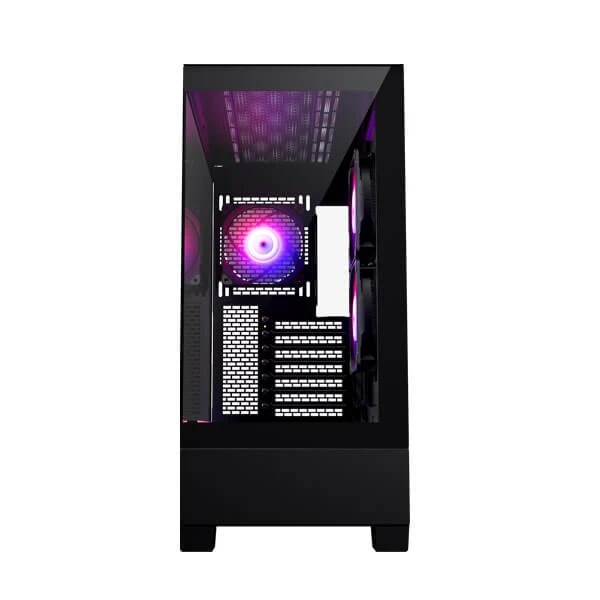

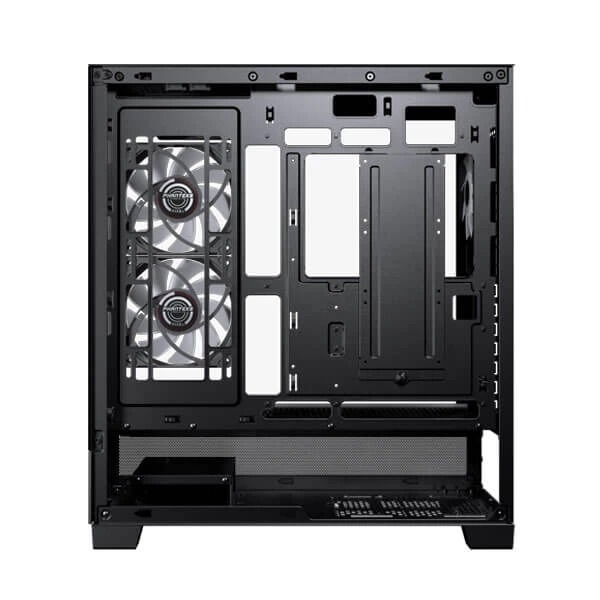

Phanteks XT View D-RGB (E-ATX) Mid Tower Cabinet (Black)
Sale!27%
- Support for the latest rear-side connector mainboards
- Front and Side Tempered Glass Windows
- 3x M25-120mm DRGB fans included
- Supports up to 9x 120mm fan positions
- Dedicated 360 radiator support in the top without restrictions
- Support for the largest graphics cards without compromise
Original price was: ₹9,900.00.₹7,199.00Current price is: ₹7,199.00. (Inclusive of GST)
Out of stock
Shipping Policy
Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed. Shipping Partners : FedEx, Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Green Apple Compunet DOES NOT Have any Control over Operations of Shipping Partners. Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays. Loss or damage occured during shipping is Green Apple Compunet Responsibility. You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package. You must notify Green Apple Compunet of damaged or missing items from your order within 24-hours of receiving your package.
Get it by
Jul 27 Jul 31
Guaranteed safe & secure checkout
Description
SPECIFICATIONS
Additional information
Reviews (0)
Q & A
Phanteks XT View D-RGB (E-ATX) Mid Tower Cabinet (Black) (PH-XT523V1-DBK01)
Feature
- Phanteks With new hardware releases demanding more cooling capacity and internal space, the XT-series are designed to deliver just that. And it delivers with extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management. Cooling has been optimized with up to 9x fan locations and dedicated radiator space in the top of the chassis.
- The XT-Series further innovates to bring support for the lastest mainboards that host hidden connectors at the rear to unlock that zero-cable setup. The graphics card also benefits from 3x 120 mm fan locations on the midplate that provides direct cooling.
Key Feature
- Black, Mid-Tower , (D) 440 x (W) 230 x (H) 500mm, Tempered Glass
- 7 Expansion Slots, 2 x 3.5” Drive Bay, 5 x 2.5” Drive Bay
- Front I/O Panel : 1 x USB-C 3.2 GEN 2, 2 x USB 3.0, Microphone/ Headphone Combo, Reset Button, Power Button, D-RGB Color Button, D-RGB Mode Button
- Fan Support : Top -3 x 120 mm / 2 x 140 mm, Right Side Fasn – 2 x 120 mm, Rear – 1 x 120 mm / 1 x 140 mm, Midplate – 3 x 120 mm
- Connectors : Power Switch, Reset Switch, HD-audio, USB 3.0, USB 3.2 GEN 2 Type-E , D-RGB expansion, D-RGB Motherboard
SPECIFICATIONS
| Model Number | PH-XT523V1-DBK01 |
| General | |
| ProductDimension(DxWxH) | 440x230x500mm |
| FormFactor | Mid Tower |
| Motherboard Support | ATX,Micro-ATX,Mini-IT,E-ATX(280mm without GPU support bracket) |
| Materials | Steel Chassis (Tempered Glass) |
| Front lO |
|
| Connectors |
|
| Expansion | |
| PCI Slots | 7 |
| Internal 3.5" Bay | 2(2x included) |
| Internal 2.5" Bay | 5 (5 x included) |
| Fans & Radiators | |
| Top Fan | 3 x 120mm/2 x 140mm |
| Right Side Fan | 2x 120mm |
| Rear Fan | 1x l20mm/ 1x 140mm |
| Midplate Fan | 3 x 120mm |
| Top Radiator | up to 360 |
| Right Side Radiator | up to 240 (onlywithVerticalGPU} |
| Rear Radiator | 120 |
| Clearances | |
| GPU Length | 415 mm |
| GPU Width | 184 mm |
| CPU Cooler Height | 184 mm |
| Power Supply | 270 mm |
| Top 360 radiator | 415 x 138 x 60 mm |
| Side 240 radiator | 305 x 120 x 62mm (only with Vertcal GPU) |
| Rear Radiator | 120 |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Weight | 5 kg |
|---|---|
| Product Type | Normal |
| Brand | Phanteks |
| color | Black |
| Motherboard Size | ATX, ITX, mATX, Mini ITX |
| Radiator Size | 360MM |
| Warranty | 5 Years |
| EAN Code | 0886523303176 |
