NZXT H9 Flow RGB+ (2025) Large Dual-Chamber ATX Mid-Tower Airflow PC Case (Black)

Name: Buy NZXT H9 Flow RGB+ (2025) Large Dual-Chamber ATX Mid-Tower Airflow PC Case (Black) Green Apple Compunet
SKU: CM-H92FB-P1
Price: 24299.00 INR
Availability: OutOfStock

Sale!46%

(Inclusive of GST)

Out of stock

Need Help? Contact Us

people have this in their carts right now. It's running out!

SKU: CM-H92FB-P1

Categories:Cabinets, NZXT

Tags:NZXT, NZXT Case, NZXT H9 Flow RGB+ (2025) Large Dual-Chamber ATX Mid-Tower Airflow PC Case, NZXT H9 Flow RGB+ (2025) Case, NZXT H9 Flow RGB Case

Brand: NZXT

Guaranteed safe & secure checkout

Description

SPECIFICATIONS

Additional information

Q & A

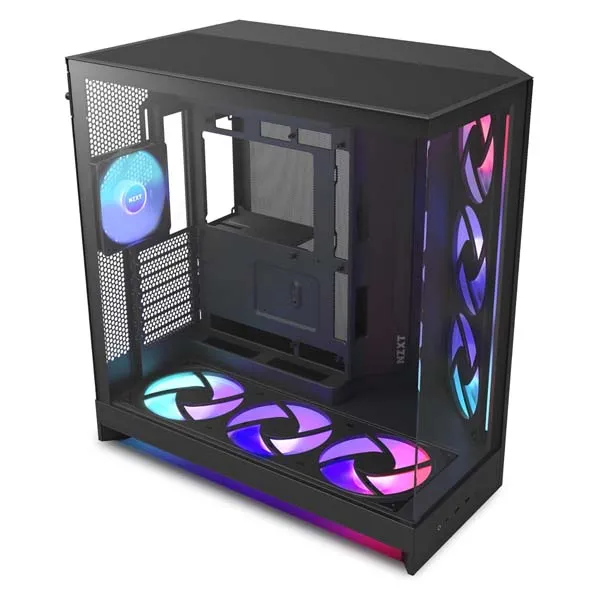

NZXT H9 Flow RGB+ (2025) Large Dual-Chamber ATX Mid-Tower Airflow PC Case (Black)

Feature

The NZXT H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.

NZXT H9 Flow RGB+ (2025) Large Dual-Chamber ATX Mid-Tower Airflow PC Case (Black) - Green Apple Compunet

Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.
Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.
RGB Ready: Includes two F420 RGB Core single-frame fans, one F120 RGB Core (CV) fan in the rear, and an NZXT Control Hub. CV = Case Version (3-pin DC)
Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.
Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling.
Large Radiators & GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.
Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.
Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.

case pc nzxt atx white tower gaming black gpu glass rgb usb c computer mount water panel vertical

$mini full itx micro gabinete corsair motherboard gamer cooling lighting i fractal compact$

MESH PANELS

Ultra-fine, high-airflow mesh panels maximize airflow while filtering dust.

port cooler elite type card side design nxzt front size cpu flow chasis h tempered quiet graphics

SPACIOUS DUAL-CHAMBER

Separates heat-generating components for improved airflow and a cleaner build.

H9 Flow dual chamber case

10-FAN COOLING

Fits up to nine 140 mm fans and one 120 mm rear fan.

H9 Flow fan diagram

LARGE RADIATOR SUPPORT

Holds up to 420 mm radiators on the top and front-right panels for versatile cooling.

H9 Flow Radiators

MAXIMUM GRAPHICS

Handles GPUs up to 435 mm, giving plenty of space for top-tier graphics cards.

H9 Flow GPU

BACK-CONNECT READY

Compatible with ASUS BTF and MSI Project Zero motherboards for a cable-free look.

H9 Flow Back connect motherboard

EASY CABLE MANAGEMENT

Extra-wide channels, Velcro straps, and tie-down points make cable routing simple.

H9 Flow cable management

SPECIFICATIONS

Height (with feet)	506 mm (19.9 in)
Width	315 mm (12.4 in)
Depth	481 mm (18.9 in)
Volume	76.7 L
Weight	13.4 kg (29.54 lb)
Enclosure Type	Mid-tower
Motherboard Compatibility	E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX
Rear-Connecting Motherboards Support	Yes (Micro-ATX)
Materials	SGCC steel, clear tempered glass (white), tinted tempered glass (black)
CPU Cooler Height Clearance	165 mm
GPU Length Clearance	Up to 459 mm (with <56 mm thickness fans installed at the front-right) <br> Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)
PSU Length Clearance	200 mm
Top Radiator + Fan Thickness	Up to 80 mm (360 mm) / Up to 62 mm (420 mm)
Front I/O Ports	2 x USB 3.2 Type-A, 1 x USB 3.2 Gen2x2 Type-C, 1 x Headset Jack
Expansion Slots	Standard: 7 <br> Vertical: 0
Drive Bays	2.5": 4+2 <br> 3.5": 2
Fan Support	Front: 3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included) <br> Top: 3 x 120 mm / 3 x 140 mm <br> Bottom: 3 x 120 mm / 3 x 140 mm <br> Rear: 1 x 120 mm (1 x F120Q (CV) included)
Radiator Support	Front-Right: Up to 420 mm <br> Top: Up to 420 mm <br> Bottom: Up to 360 mm <br> Rear: Up to 120 mm
Fan Specs (F420 RGB Core)	Speed: 2,000 ± 200 RPM <br> Airflow: 98.61 CFM <br> Static Pressure: 3.2 mmH₂O <br> Noise: 34.5 dBA <br> Fan Connector: 8-pin w/ splitter
Fan Specs (F120 RGB Core CV)	Speed: 1,300 ± 130 RPM <br> Airflow: 55.17 CFM <br> Static Pressure: 1.27 mmH₂O <br> Noise: 26.1 dBA <br> Fan Connector: 3-pin
Control Hub Specs	Fan Channels: 3 x NZXT 8-pin (PWM only) / 1 x NZXT 8-pin (DC+PWM control) / 1 x 4-pin PWM (DC+PWM control) <br> RGB Channels: 4 x NZXT 8-pin / 1 x NZXT RGB <br> Max LED Support: 96 LEDs per NZXT 8-pin channel, 40 LEDs per NZXT RGB channel (supports up to 5 NZXT devices)
System Requirements	USB 2.0 Internal Header / 8-pin PCIe Power
Warranty	2 years
Model Number	CM-H92FB-P1
UPC	810074847896
EAN	5056547207681

Weight	1 kg
Brand	NZXT
Case Form Factor	Mid Tower
color	Black
Lighting Profile	ARGB
Motherboard Size	ATX, ITX, mATX, Mini ITX
Product Type	Gaming
Radiator Size	120mm, 240mm, 280mm, 360MM
Warranty	2 Years
