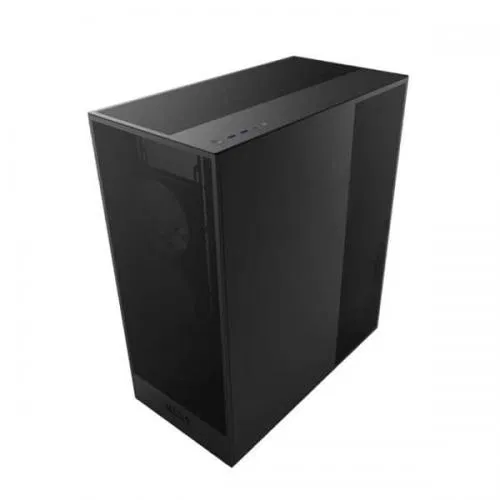

NZXT H7 Flow RGB (2024) ATX Mid Tower Airflow Cabinet (Black)

NZXT H7 Flow RGB (2024) ATX Mid Tower Airflow Cabinet (Black)

Feature

The NZXT H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.

• Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
• Comes equipped with a F360 RGB Core single-frame fan for exceptional out-of-the-box cooling and RGB lighting.
• High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
• Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
• Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
• Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
• Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
• Tool-less access to the front, top, and side panels makes building and upgrading a breeze.

Enhance the cooling capabilities of your system while looking sleek and stylish with the black H7 Flow RGB Mid-Tower Case from NZXT. Designed to fit a wide range of systems, the 2024 edition of the H7 Flow incorporates a unique interior meant to promote airflow while also keeping your cables tucked away for a clean and unique look.

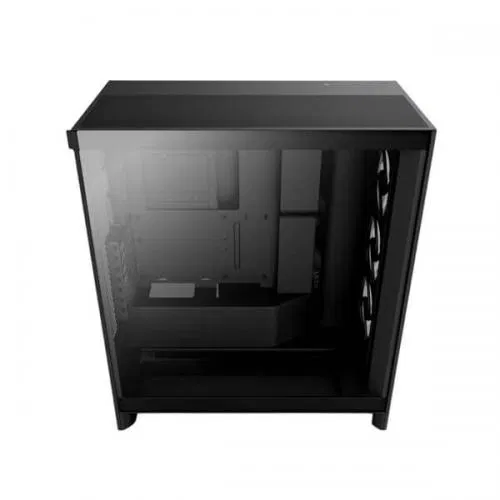

Constructed from SGCC steel, the H7 Flow offers rigidity while a dark-tinted tempered glass side panel allows you to see your build. Tool-less panel access reveals a dedicated 1.3″ cable management space, revealing the multiple storage drive installation points consisting of two 2.5″ bays and two 2.5/3.5″ combo bays. The roomy interior supports large format graphics cards up to 16.1″ long as well as CPU coolers up to 7.3″ tall. Multiple mounting points allow you to install a variety of fans and AiO radiators at the front, top, bottom, and rear of the case with an F360 RGB Core single-frame 3-fan array at the front panel. Additionally, the top panel of the H7 Flow provides you with two USB-A 3.2 Gen 1 and one USB-C 3.2 Gen 2 port for your peripherals alongside a single 3.5mm combo audio jack.

Dedicated GPU Cooling

Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.

Interior Design

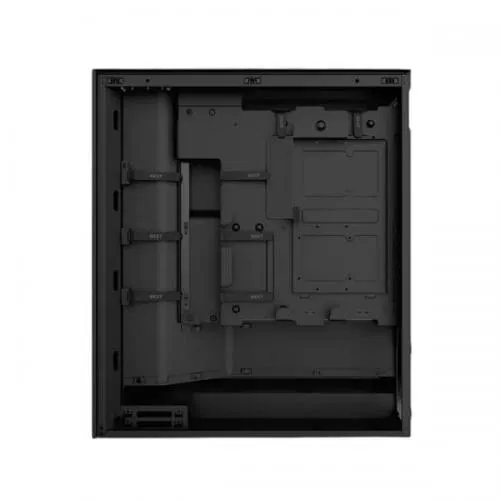

Sporting a unique look, the 2024 edition H7 Flow uses a multi-chamber design that gives builders access to a fully accessible bottom panel for additional airflow while keeping the ATX power supply hidden behind a shroud which also optimizes cable management. The motherboard tray supports a wide range of ATX, M-ATX, M-ITX, and E-ATX form factors with ample room for the rest of your key components.

F360 RGB Core Fan

Pre-installed at the front of the H7 Flow RGB is an F360 RGB Core, a unique, single-frame 3-fan array that simplifies your cooling while offering vast customization options.

Fan Installation

The interior of the H7 Flow allows you to install a wide range of fans with three 120mm or 140mm fans at the front, a 120mm or 140mm fan at the rear, three 120mm or two 140mm fans at the top, and three 120mm fans on the bottom plate.

Radiator Support

With support for liquid AiO coolers, you can install a variety of radiators all around the H7 Flow. Install radiators up to 420mm at the front and 360mm at the top or bottom of the case. You also have the option to install a 120mm radiator on the rear panel.

10-Fan Capacity

Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.

Easily Manage Cables

Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.

Top I/O Ports

Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.

Tool-Less Design

With easy dismantling of the top, front, and side panels, you can upgrade your system and access your wire management spaces. This also gives you access to the various dust filters found in the top, front, and bottom panels
