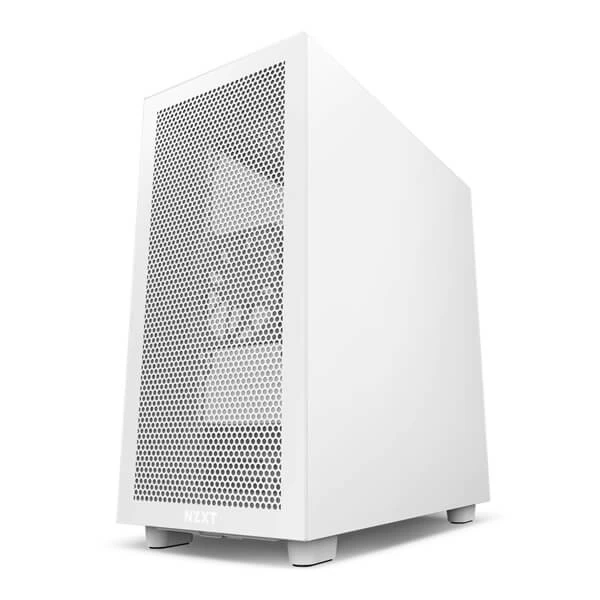

Nzxt H7 Flow (E-ATX) Mid Tower Cabinet – White
- Perforated front & top panels enable maximum thermal performance
- Intuitive cable management system with wide channels, hooks, & straps
- Tool-less access to front & side panels
- Front & top support radiators up to 360mm
- Includes two F Series Quiet 120mm Fans
Out of stock

Nzxt H7 Flow (E-ATX) Mid Tower Cabinet – White
Features
This mid-tower case is ready to bring the cool. Featuring a perforated front and top panel, alongside widened channels, hooks, straps, and toolless entry, this sleek case will keep any build cool and comfortable while offering plenty of space.
The H7 Flow
This mid-tower case is ready to bring the cool. Featuring a perforated front and top panel, alongside widened channels, hooks, straps, and toolless entry, this sleek case will keep any build cool and comfortable while offering plenty of space.
SPECIFICATIONS
Key Specs | |
Motherboard Support | Mini-ITX, Micro-ATX, ATX, and EATX (Up to 272mm) |
Enclosure Type | Mid-Tower |
Case Material | SGCC Steel, Tempered Glass |
Drive Bays | |
2.5″ | 4+2 |
3.5″ | 2 |
Dimensions | |
Height | 505mm (With Feet) |
Width | 230mm |
Depth | 480mm |
Weight | 10.05 kg |
Fan Support | |
Front | 3 x 120mm / 3 x 140mm |
Top | 3 x 120mm / 2 x 140mm |
Rear | 1 x 120mm / 1 x 140mm |
Filters | All Air Intakes |
Model Number | CM-H71FW-01(White) |
Compatibility & Clearance | |
Max CPU Cooler Clearance | Up to 185mm |
Max GPU Clearance | Up to 400mm |
Front Radiator Clearance | 60mm |
Top Radiator Clearance | 30mm |
Cable Management | 18-22mm |
Radiator Support | |
Front | Up to 360mm with Push/Pull |
Top | Up to 360mm |
Rear | Up to 140mm |
Front I/O Ports | |
USB 3.2 Gen 1 Type-A | 2 |
USB 3.2 Gen 2 Type-C | 1 |
Headset Audio Jack | 1 |
Fan Specs | |
Model | F120Q (Case Version) |
Speed | 1200 ± 240RPM |
Airflow | 62.18 CFM |
Static | 1.05 mm – H2O |
Noise | 25.1 dBA |
Fan Connector | 3-pin |
Expansion Slots | |
Standard | 7 |
Vertical | 0 |
Warranty | 2 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
Weight | 5 kg |
---|---|
Brand | NZXT |
Motherboard Size | ATX, E-ATX, ITX, mATX, Mini ITX |
Radiator Size | 120mm, 240mm, 280mm, 360MM |
Case Form Factor | Mid Tower |
EAN Code | 5060301697007 |
Warranty | 2 Years |
Pre-Installed Fans | 3 |
color | White |
Product Type | Gaming |
