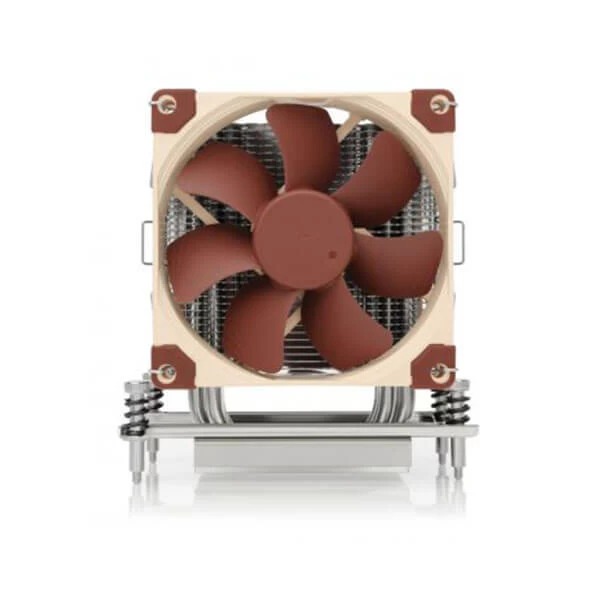

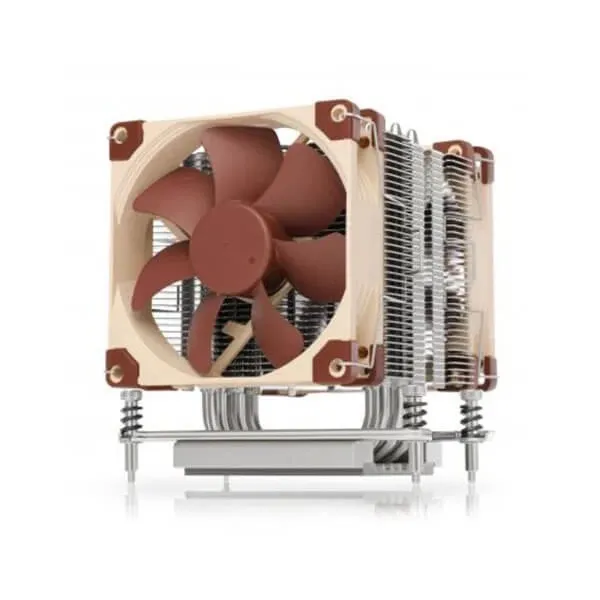

Noctua NH-U9 TR4-SP3 92mm CPU Air Cooler

Feature

slider_images

Having received more than 300 awards and recommendations from international hardware websites and magazines, Noctua’s NH-U9 line has become a benchmark for compact 92mm single tower coolers. The TR4-SP3 version is a tailored custom model for AMD’s sTRX4/sWRX8/TR4/SP3 platform (Ryzen Threadripper / Epyc) and features a larger contact surface as well as the latest SecuFirm2™ mounting system for socket sTRX4/sWRX8/TR4/SP3. Topped off with two of the renowned quiet NF-A9 PWM PWM 92mm fans in a push/pull dual fan configuration, Noctua’s proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-U9TR4-SP3 forms a highly compact, premium-quality solution that combines outstanding performance, superb acoustics and excellent compatibility for space-restricted sTRX4/sWRX8/TR4/SP3 systems.

Award-winning NH-U9 series: more than 300 awards and recommendations from international hardware websites and magazines
92mm size for best case and PCIe compatibility (4U compliant)
Tailored custom version for AMD’s sTRX4/TR4/SP3 platform (Ryzen Threadripper / Epyc)
Two quiet, premium-grade NF-A9 92mm fans with PWM for automatic speed control
Renowned Noctua quality, deluxe choice for TR4 & sTRX4 AMD Ryzen Threadripper CPUs (e.g. 3990X, 2950X, 2920X, Epyc 7003/7002/7001 series)

Award-winning NH-U series

The NH-U9 TR4-SP3 stems from Noctua’s award-winning NH-U9 series. First introduced in 2005, the NH-U series has become a standard choice for premium quality quiet CPU coolers and won more than 1000 awards and recommendations from leading international hardware websites and magazines.

Tailored custom version for sTRX4/TR4/SP3 (Ryzen Threadripper / Epyc)

At 70x56mm, the copper contact surface of the TR4-SP3 version is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of AMD’s sTRX4/TR4/SP3-based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins.

Compact 92mm size for best compatibility

Thanks to a total width of only 95mm, the NH-U9 TR4-SP3 provides 100% PCIe clearance and never overhangs the top PCIe x16 slot. At the same time, its height of only 125mm allows it to fit smaller cases and most 4U size rack-mount enclosures.

Dual NF-A9 PWM fans

The NH-U9 TR4-SP3 is equipped with two of Noctua’s award-winning NF-A9 PWM 92mm fans. This push/pull dual fan configuration allows it to achieve a level of quiet cooling performance that is remarkable for such a compact cooler and comes close to the bigger NH-U12S TR4-SP3.

PWM support and Low-Noise Adaptors

The NF-A9 premium fans supplied with the NH-U9 TR4-SP3 support PWM for convenient automatic speed control through the motherboard. In addition, the maximum fan speed can be reduced from 2000 to 1550rpm using the supplied Low-Noise Adaptors for even quieter operation.

SecuFirm2™ mounting system for sTRX4/TR4/SP3

Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. The TR4-SP3 variant has been completely custom-designed for the new socket and is particularly easy to install: Put on the heatsink, fix the four spring-loaded screws and you’re done!

NT-H1 thermal compound

Noctua’s much-acclaimed NT-H1 is a well proven pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability, which makes it suitable for use in professional server and workstation environments.

6-year manufacturer’s warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A9’s feature an MTTF rating of more than 150,000 hours and the entire NH-U9 TR4-SP3 package comes with a full 6-year manufacturer’s warranty.

SPECIFICATIONS

Model	NH-U9 TR4-SP3
Socket compatibility	AMD sTRX4, sWRX8, TR4, SP3
Height (without fan)	125 mm
Width (without fan)	95 mm
Depth (without fan)	71 mm
Weight (without fan)	660 g
Height (with fan)	125 mm
Width (with fan)	95 mm
Depth (with fan)	120 mm
Weight (with fan)	895 g
Material	Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR	118
Max. TDP	see NSPR
Fan compatibility	2x 92x92x25mm

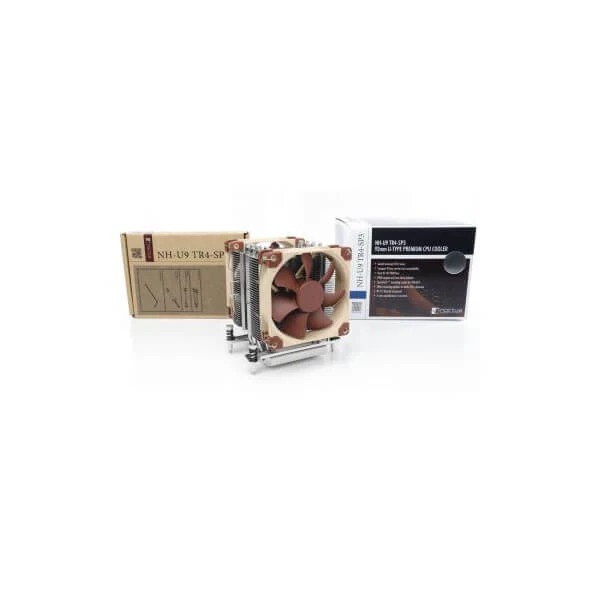

Scope of delivery	2x NF-A9 PWM premium fan 2x Low-Noise Adaptor (L.N.A.) Y-split cable NT-H1 high-grade thermal compound SecuFirm2™ mounting kit for sTRX4/TR4/SP3 Noctua metal case-badge
FAN Specification
Model	Noctua NF-A9 PWM
Bearing	SSO2
Max. rotational speed (+/- 10%)	2000 RPM
Max. rotational speed with L.N.A. (+/- 10%)	1550 RPM
Min. rotational speed @ 20% PWM (+/-20%)	400 RPM
Max. airflow	78,9 m³/h
Max. airflow with L.N.A.	62,6 m³/h
Max. acoustical noise	22,8 dB(A)
Max. acoustical noise with L.N.A.	16,3 dB(A)
Input power (max.)	1,2 W
Voltage range	12 V
MTTF	> 150.000 h
Warranty	6 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Brand	Noctua
color	Brown
Cooling Type	Air
Fan Size	92mm
Fan Speed	2000 RPM
Product Type	Normal
Socket	SP3, STRX4, TR4
EAN Code	9010018000122
Warranty	6 Years
