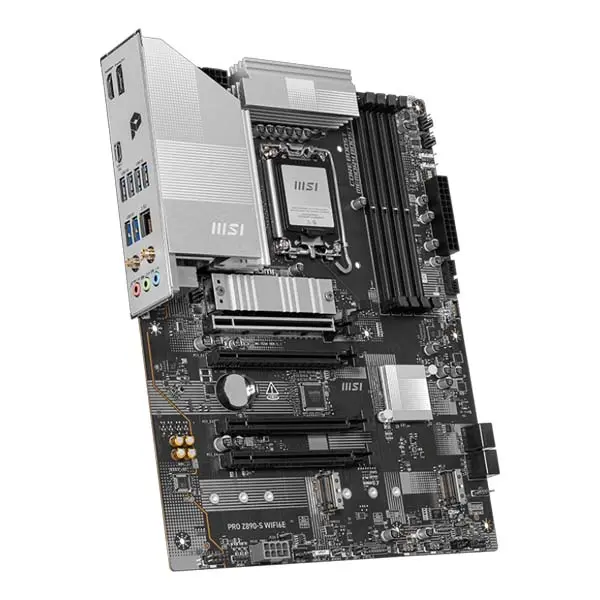

MSI PRO Z890-S WIFI6E DDR5 ATX Motherboard for Intel Core Ultra Processors
RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.
Original price was: ₹54,999.00.₹21,899.00Current price is: ₹21,899.00. (Inclusive of GST)
In stock
MSI PRO Z890-S WIFI6E DDR5 ATX Motherboard for Intel Core Ultra Processors
Feature
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
- Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK , dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
- EZ DIY: EZ PCIe Clip II, EZ Conn-Design and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
- 2.5G LAN with Wi-Fi 6E Solution: upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
PRO Z890-S WIFI6E offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, Wi-Fi 6E with EZ Antenna, 2.5G LAN, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.
EZ PCIE CLIP II
The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.
The Pre-Installed I/O Shield
The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.
EZ CONN-DESIGN
The MSI exclusive JAF_1 header allows MPG EZ120 ARGB fan to operate with a single cable. Alternatively, the JAF_1 header can be converted into additional ARGB Gen 1 and fan headers by using a dedicated 1-to-2 EZ Conn-cable, streamlining and optimizing the entire building process.
EZ overclocking
storage
FROZR CONTROL
| Specification | Details |
|---|---|
| Chipset | Intel Z890 |
| CPU Support | Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851 |
| Memory | 4x DDR5 UDIMM, Maximum Capacity 256GB DDR5 8800–6400 MT/s (OC) DDR5 6400–4800 MT/s (JEDEC) Supports Intel® XMP 3.0, Memory Overclocking, Dual-Channel, Non-ECC, Unbuffered, CUDIMM |
| Memory OC Support | 1DPC 1R: Up to 8800+ MT/s 1DPC 2R: Up to 7200+ MT/s 2DPC 1R: Up to 6400+ MT/s 2DPC 2R: Up to 5600+ MT/s |
| Onboard Graphics | 1x HDMI™ 2.1 (Up to 4K@60Hz) 1x DisplayPort 1.4 (Up to 4K@60Hz) |
| Expansion Slots | PCI_E1: PCIe 5.0 x16 (CPU) PCI_E2: PCIe 3.0 x1 (Chipset) PCI_E3: PCIe 4.0 x4 (Chipset) PCI_E4: PCIe 4.0 x4 (CPU) |
| Audio | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| M.2 Storage | M.2_1: PCIe 5.0 x4 (CPU) M.2_2: PCIe 4.0 x4 (Chipset) M.2_3: PCIe 4.0 x4 / SATA (Chipset) Supports 2280 / 2260 / 2242 SSDs |
| SATA Storage | 4x SATA 6Gb/s Ports |
| RAID Support | SATA: RAID 0, 1, 5, 10 M.2 NVMe: RAID 0, 1, 5 |
| USB Ports | Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 20Gbps Type-C Rear: 6x USB 5Gbps Type-A, 1x USB 20Gbps Type-C |
| LAN | Realtek® 8125D 2.5Gbps LAN |
| Wireless & Bluetooth | Wi-Fi 6E (2.4GHz / 5GHz / 6GHz, up to 2.4Gbps) Supports 802.11 a/b/g/n/ac/ax Bluetooth® 5.3 |
| Internal I/O | 1x ATX Power Connector 2x CPU Power Connectors 1x PCIe Power Connector (8-pin) 1x CPU Fan Header 1x Pump/System Fan Header 4x System Fan Headers 2x Front Panel Headers 1x Chassis Intrusion Header 1x Front Audio Header 1x JDASH Connector 3x Addressable RGB Headers 1x RGB Header 1x TPM 2.0 Header 4x USB 2.0 Ports 2x USB 5Gbps Type-A Ports 1x USB 20Gbps Type-C Port |
| LED Features | 4x EZ Debug LED |
| Rear I/O Ports | DisplayPort HDMI™ USB 20Gbps Type-C USB 5Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna Connectors Audio Connectors |
| Operating System | Windows® 11 64-bit |
| Form Factor | ATX |
| Dimensions | 243.84mm x 304.8mm |
| Weight | 1 kg |
|---|---|
| Brand | MSI |
| Chipset | Z890 |
| Motherboard Size | ATX |
| Platform | Intel |
| Socket | LGA 1851 |
| Warranty | 3 Years |
| color | Black |
| EAN Code | 4711377427425 |
| Memory Bus | 64 bit |
| Memory Series | DDR5 |
| Motherboard Series | MSI MAG |
| RAM Type | DDR5 |
| Product Type | Gaming |
