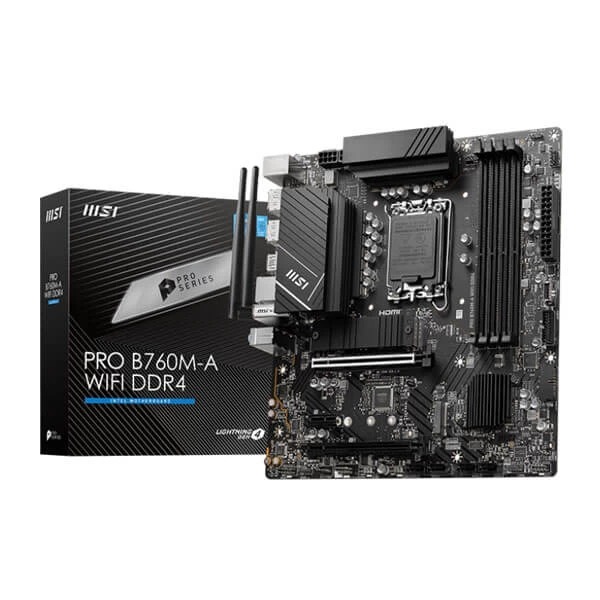

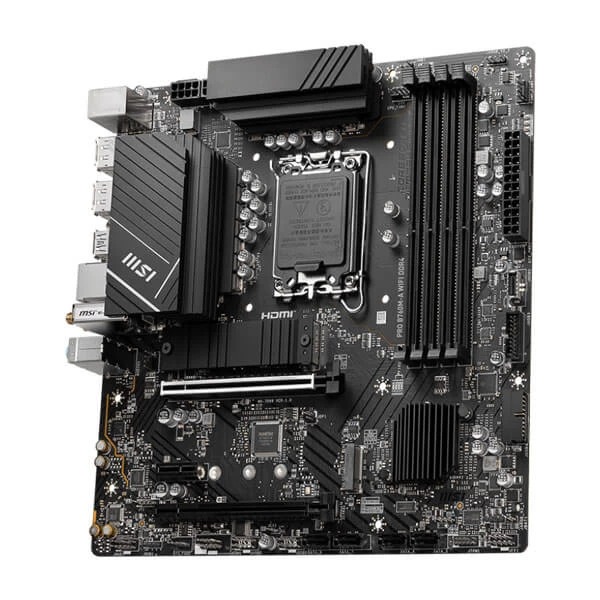

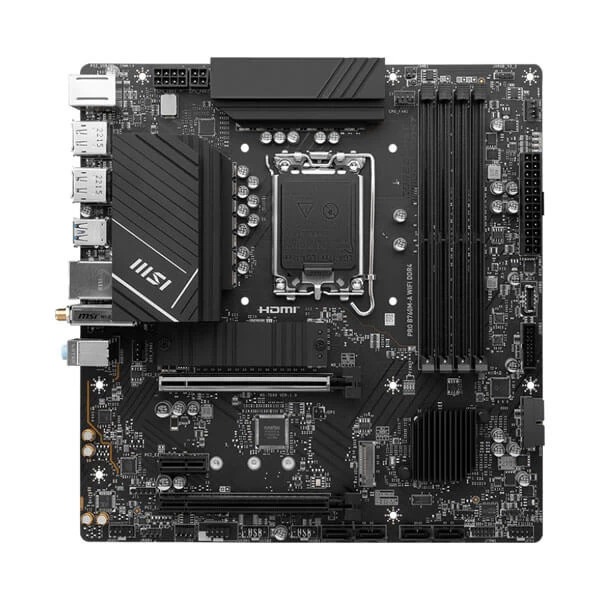

MSI Pro B760M-A WIFI DDR4 Intel Motherboard Supports Intel 12th , 13th & 14th Gen Processors
RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.
Original price was: ₹29,999.00.₹14,399.00Current price is: ₹14,399.00. (Inclusive of GST)
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
MSI Pro B760M-A WIFI DDR4 Intel Motherboard Supports Intel 12th , 13th & 14th Gen Processors
MSI PRO B760M-A WIFI DDR4 Supports 12th and 13th Gen Intel Core processors for LGA 1700 socket, DDR4 Memory, Dual Channel DDR4 5333+MHz (OC), Extended Heatsink, PCIe 4.0 slot, Lightning Gen 4 x4 M.2
Features:
- B760M-A Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
COOLING OVERVIEW
-
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
-
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
-
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
-
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
-
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
LIGHTNING GEN 4 PCI-E WITH STEEL ARMOR
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI’s premium network solution provides incredible data transfer speed for demanding users.
USB FRONT TYPE-C
MSI PRO motherboards support USB Front Type-C that allows gamers to connectwith the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
| Weight | 1 kg |
|---|---|
| Brand |
MSI |
| Product Type |
Gaming |
| Motherboard Size |
mATX |
| Socket |
LGA 1700 |
| Chipset |
B760 |
| RAM Type |
DDR4 |
| Platform |
Intel |
| EAN Code |
4711377026383 |
| Warranty |
3 Years |
| color |
Black |
