MSI H810M GAMING WIFI6E DDR5 Micro-ATX Intel Motherboard (LGA 1851)

RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.

Original price was: ₹39,000.00.Current price is: ₹10,979.00. (Inclusive of GST)

Support Intel^® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5-6400+ MT/s (OC)
Ultra Performance: 6 P-PAK Power System, 8-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer server-grade level PCB
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for non-stop experience
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 20G Type-C
High-Speed Connectivity: Realtek^® 2.5G LAN, Wi-Fi 6E Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience

74 People watching this product now!

In stock

SKU: H810M Gaming WIFI6E

MSI H810M GAMING WIFI6E DDR5 Micro-ATX Intel Motherboard (LGA 1851)

Description

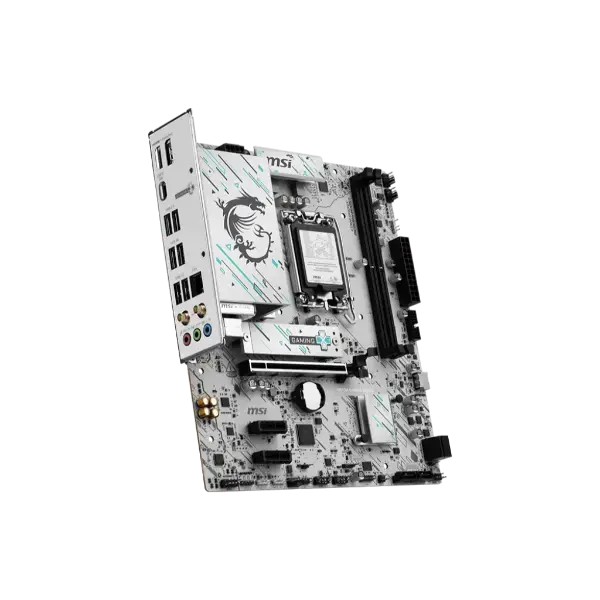

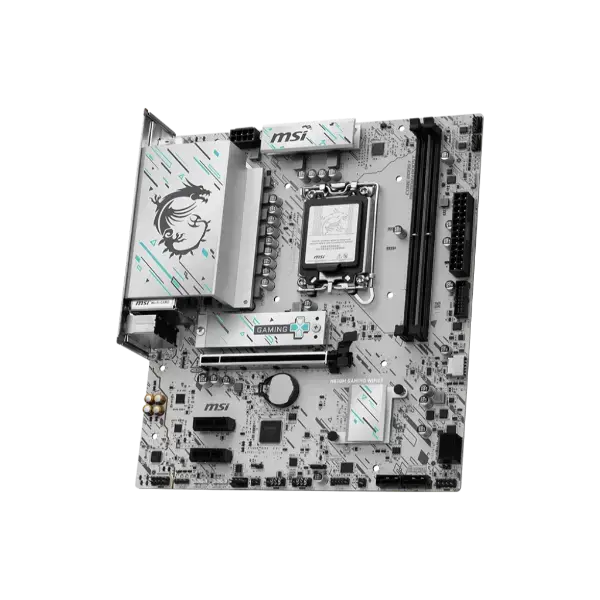

The MSI H810M GAMING WIFI6E motherboard features a sleek, cyber-inspired pattern with teal and black geometric accents on a silver base. Featuring USB 20G Type-C port, Wi-Fi 6E, 2.5G LAN, PCIe 5.0 solution and M.2 Shield Frozr, ready for Intel Core Ultra processors.

H810M GAMING WIFI6E

Support Intel^® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5-6400+ MT/s (OC)
Ultra Performance: 6 P-PAK Power System, 8-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer server-grade level PCB
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for non-stop experience
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 20G Type-C
High-Speed Connectivity: Realtek^® 2.5G LAN, Wi-Fi 6E Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience

MSI H810M GAMING WIFI6E Intel Motherboard - 3

Specification	Details
Chipset	Intel H810
CPU Support	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 Socket
Memory	2 x DDR5 UDIMM Slots Maximum Capacity: 128GB Supported Speeds: DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 (JEDEC) MT/s Supports Intel® XMP 3.0 Memory Overclocking Supports Dual-Channel Mode Supports Non-ECC, Unbuffered Memory Supports CUDIMM
Integrated Graphics Outputs	1 x HDMI™ 2.1 (Up to 4K @ 60Hz) 1 x DisplayPort 1.4 (Up to 4K @ 60Hz) *Available only with processors featuring integrated graphics.
Expansion Slots	1 x PCIe 5.0 x16 Slot (From CPU) 2 x PCIe 4.0 x1 Slots (From Chipset)
Audio	Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
Storage	1 x M.2 Slot (PCIe 4.0 x4, 2242/2260/2280) 4 x SATA 6Gb/s Ports
USB Ports	Rear I/O: • 4 x USB 2.0 • 2 x USB 5Gbps Type-A • 1 x USB 20Gbps Type-C Front I/O: • 4 x USB 2.0 • 2 x USB 5Gbps Type-A • 1 x USB 10Gbps Type-C
LAN	Realtek® 8126 5Gbps LAN
Wireless Connectivity	Wi-Fi 6E Module (Pre-installed M.2 Key-E) Supports 2.4GHz / 5GHz / 6GHz Bands Up to 2.4Gbps Speed Supports 802.11 a/b/g/n/ac/ax Bluetooth® 5.3
Internal Connectors	1 x 24-Pin ATX Power Connector 1 x 8-Pin CPU Power Connector 1 x CPU Fan Header 2 x System Fan Headers 2 x Front Panel Headers (JFP) 1 x Chassis Intrusion Header 1 x Front Audio Header 1 x JDASH Connector 3 x ARGB Gen2 Headers (JARGB_V2) 1 x RGB LED Header (JRGB) 1 x TPM 2.0 Header 2 x USB 5Gbps Headers 1 x USB 10Gbps Type-C Header 2 x USB 2.0 Headers
LED Features	4 x EZ Debug LEDs 1 x EZ Memory Detection LED
Rear I/O Ports	1 x DisplayPort 1 x HDMI™ 4 x USB 2.0 2 x USB 5Gbps Type-A 1 x USB 20Gbps Type-C 1 x 5Gbps LAN Port Wi-Fi Antenna Connectors Audio Jacks
Operating System	Windows® 11 64-bit
Form Factor	Micro-ATX (mATX)
Dimensions	220mm x 243.84mm
Box Contents	Motherboard, Documentation, Wi-Fi Antennas, SATA Cables, I/O Accessories (May Vary by Region)
