MSI B860M GAMING WIFI7 DDR5 Micro-ATX Intel Motherboard (LGA 1851)
RAM & SSD prices are highly volatile. Please confirm stock and price before placing your order.
Original price was: ₹48,000.00.₹13,049.00Current price is: ₹13,049.00. (Inclusive of GST)
- Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5-9066+ MT/s (OC)
- Ultra Performance: 8 Direct CPU Power with P-PAK Power System, 8-pin CPU power connector, Core Boost, Memory Boost, and 6-layer server-grade level PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for non-stop experience
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 20G Type-C
- High-Speed Connectivity: Realtek® 5G LAN, Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
60
People watching this product now!
In stock
MSI B860M GAMING WIFI7 DDR5 Micro-ATX Intel Motherboard (LGA 1851)
The B860M GAMING WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring USB 20G Type-C port, Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for Intel Core Ultra processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
ULTRA PERFORMANCE
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 pin power connector and exclusive Core Boost technology, the B860M GAMING WIFI is ready to sustain heavy gaming loadings.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI’s premium network solution provides incredible data transfer speed for demanding users.
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5-9066+ MT/s (OC)
- Ultra Performance: 8 Direct CPU Power with P-PAK Power System, 8-pin CPU power connector, Core Boost, Memory Boost, and 6-layer server-grade level PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for non-stop experience
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 20G Type-C
- High-Speed Connectivity: Realtek® 5G LAN, Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
| Specification | Details |
|---|---|
| Chipset | Intel® B860 |
| CPU Support | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 Socket |
| Memory | 2 x DDR5 UDIMM Slots, Up to 128GB Memory Speeds: DDR5 9066–6400 MT/s (OC), DDR5 6400–4800 MT/s (JEDEC) Supports Intel® XMP 3.0 Supports Dual-Channel Mode Supports Non-ECC, Unbuffered Memory Supports CUDIMM |
| Maximum Memory Overclock | 1DPC 1R: Up to 9066+ MT/s 1DPC 2R: Up to 7200+ MT/s |
| Onboard Graphics | 1 x HDMI™ 2.1 (Up to 4K @ 60Hz) 1 x DisplayPort 1.4 (Up to 4K @ 60Hz) *Available only with processors featuring integrated graphics. |
| Expansion Slots | 1 x PCIe 5.0 x16 Slot (From CPU) 1 x PCIe 4.0 x4 Slot (From Chipset) |
| Audio | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| Storage | 2 x M.2 Slots • M.2_1: PCIe 5.0 x4 (2242/2260/2280) From CPU • M.2_2: PCIe 4.0 x4 (2260/2280) From Chipset 4 x SATA 6Gb/s Ports |
| RAID Support | RAID 0, RAID 1, RAID 5 and RAID 10 for SATA Storage Devices |
| USB Ports | Rear I/O: • 2 x USB 2.0 • 4 x USB 5Gbps Type-A • 1 x USB 20Gbps Type-CFront I/O: • 4 x USB 2.0 • 2 x USB 5Gbps Type-A • 1 x USB 10Gbps Type-C |
| LAN | Realtek® 8126 5Gbps LAN |
| Wireless Connectivity | Wi-Fi 7 Module (Pre-installed M.2 Key-E) Supports 2.4GHz / 5GHz / 6GHz Bands Up to 2.9Gbps Throughput Supports 802.11 a/b/g/n/ac/ax/be Bluetooth® 5.4 Supports MLO and 4K-QAM |
| Internal Connectors | 1 x 24-Pin ATX Power Connector 1 x 8-Pin CPU Power Connector 1 x 8-Pin PCIe Power Connector 1 x CPU Fan Header 1 x Pump/System Fan Header 2 x System Fan Headers 2 x Front Panel Headers (JFP) 1 x Chassis Intrusion Header 1 x Front Audio Header 1 x JDASH Connector 3 x ARGB Gen2 Headers (JARGB_V2) 1 x RGB LED Header (JRGB) 1 x TPM 2.0 Header 2 x USB 2.0 Headers (4 Ports) 1 x USB 5Gbps Header (2 Ports) 1 x USB 10Gbps Type-C Header |
| LED Features | 4 x EZ Debug LEDs 1 x EZ Memory Detection LED |

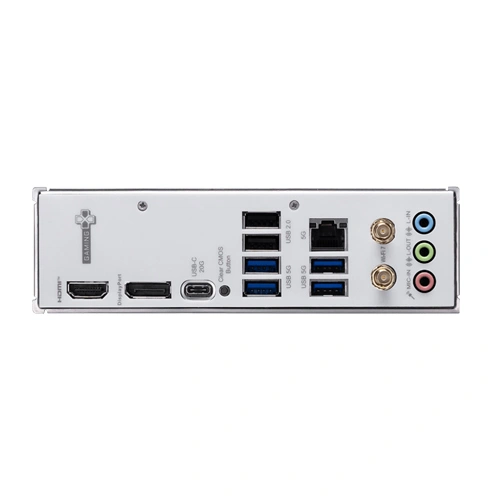

| Back Panel Ports | 1 x HDMI™ 1 x DisplayPort 2 x USB 2.0 4 x USB 5Gbps Type-A 1 x USB 20Gbps Type-C 1 x 5Gbps LAN Port Wi-Fi Antenna Connectors Clear CMOS Button Audio Connectors |
| Operating System | Windows® 11 64-bit |
| Form Factor | Micro-ATX (mATX) |
| Dimensions | 220mm x 243.84mm |
| Box Contents | Motherboard, User Guide, Wi-Fi Antennas, SATA Cables, Installation Accessories (Contents may vary by region) |
| Weight | 1 kg |
|---|---|
| Brand | MSI |
| Chipset | B860 |
| Motherboard Size | mATX |
| Platform | Intel |
| Socket | LGA 1851 |
| Warranty | 3 Years |
| color | Black |
| EAN Code | 4719331866846 |
| GPU Memory Size | 128 GB |
| Memory Bus | 64 bit |
| Memory Series | DDR5 |
| Motherboard Series | MSI Gaming |
| RAM Type | DDR5 |
