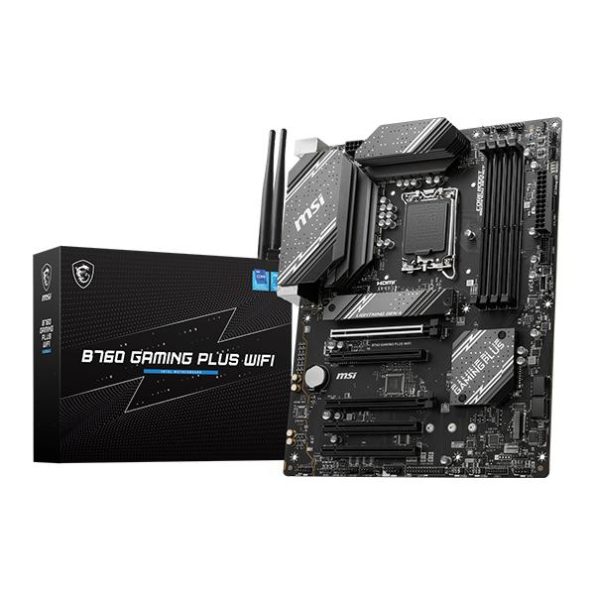

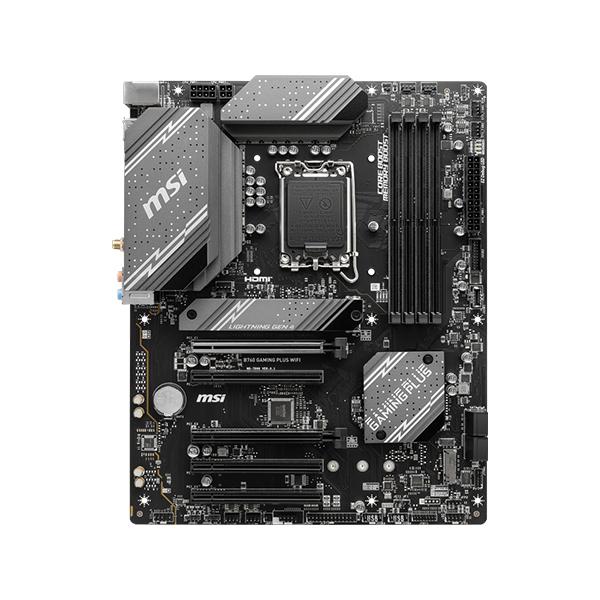

MSI B760 GAMING PLUS WIFI LGA 1700 DDR5 ATX Motherboard Supports Intel 12th , 13th & 14th Gen Processors

MSI B760 GAMING PLUS WIFI LGA 1700 DDR5 ATX Motherboard Supports Intel 12th , 13th & 14th Gen Processors

Feature

• Supports 12th/ 13th Gen Intel® Core Processors, Pentium Gold and Celeron® Processors
• Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
• Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
• Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
• M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
• USB 3.2 Gen 2 Type-C: Synergize with a MSI motherboard through bridging with a USB 3.2 Gen 2 Type-C port for convenient access.
• 2.5G Network Solution:Featuring premium 2.5G LAN to deliver better network
• experience.
• Wi-Fi 6E:The latest wireless solution supports 6GHz spectrum, MU-MIMO
• and BSS color technology, delivering speeds up to 2400Mbps.
• Core Boost: With premium layout

COOLING OVERVIEW

• Extended Heatsink

  Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

• M.2 Shield Frozr

  Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.

• Heavy Plated VRM Heatsink

  The VRM heatsink covers the upper MOS and helps dissipate the heat.

• 7W/mK Thermal Pad & Additional Choke Pad

  High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

• Chipset Heatsink

  The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

LIGHTNING GEN 4 PCI-E WITH STEEL ARMOR

LIGHTNING GEN 4 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

REINFORCED,HEAVY SOLDERED CONNECTIONS

Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

FAST AND FUTURE-READY STORAGE

B760 GAMING PLUS WIFI motherboard supports all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, B760 GAMING PLUS WIFI motherboards are ready to deliver the world class memory performance.

The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.

EASY OVERCLOCKING WITH XMP PROFILE

The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!

EZ-MODE ADVANCED MODE

• XMP

  Choose from a preset XMP profile and automatically overclock compatible DDR memory.

• VMD (VOLUME MANAGEMENT DEVICE)

  Enable direct control and management of NVMe SSDs from the PCIe bus without additional hardware adaptors.

• M-FLASH

  Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.

• HARDWARE MONITOR

  Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.

• MEMORY TRY IT

  Get extreme speed out of your system memory and get more performance.

• SEARCH & FAVORITES

  A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.

Msi Center

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
